Product Description:
Featuring 19 pins and a DIN type connector, the M23 Connector is a
versatile choice that can be used in a variety of applications.
Whether you need to connect sensors, motors, or other industrial
equipment, this male female waterproof connector is up to the task.
One of the key features of the M23 Connector is its high insulation
resistance. With a rating of ≥ 100M Ω, this connector provides
superior protection against electrical interference and ensures
that your equipment operates reliably and safely.
The M23 Connector is also available with a choice of seals and
O-rings. Choose from FKM or NBR seals to suit your specific
requirements and ensure that your connector is protected against
water, dust, and other contaminants.
As a member of the M23 Connector product category, this connector
is designed with the highest standards of quality and performance
in mind. Whether you need a waterproof panel connector for use in a
factory, warehouse, or other industrial setting, the M23 Connector
is an excellent choice.
Features:
- Product Name: M23 Connector
- Insert Material: PA66+GF30%
- Connector contacts: Brass with Gold plated
- Coupling Nut/screw: Brass With Nickel Plated
- Locking type: Fix screw
- Contact Resistance: ≤5MΩ
- Waterproof panel connector
- M23 female connector
- Waterproof power connector
Technical Parameters:

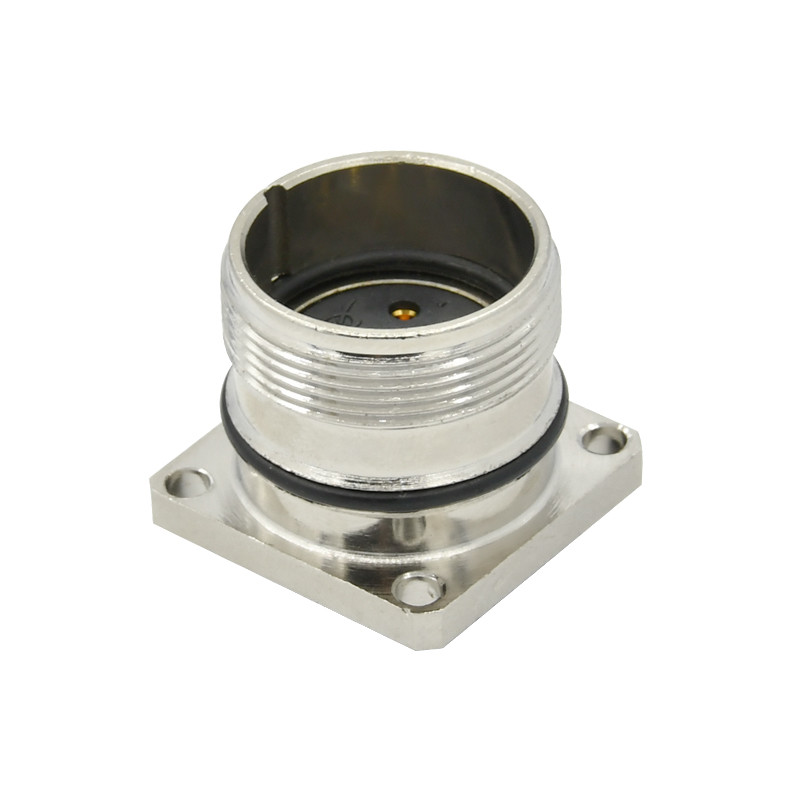

| Product Name | Rigoal M23 Connector Male/Female 19-pin 623T flanged signal IP67
Waterproof assembly panel mount connector |
| Coupling Nut/screw | Brass With Nickel Plated |
| Insert Material | PA66+GF30% |
| Connector contacts | Brass with Gold plated |
| Product Category | M23 Connector |
| Connector Series | M23 Connectors |
| Model Number | M23 Panel Mount Connector |
| Application | Automotive |
| Type | DIN |
| Operation Cycles | > 800 |
| Features | Waterproof panel connector, IP67 waterproof connector, IP67
connectors waterproof |
Applications:
The M23 Panel Mount Connector is a waterproof male female connector
that can be used in various scenarios. One of its primary
applications is in the automotive industry, where it can be used to
connect power and data cables in vehicles. The 19 pin design allows
for a seamless connection, ensuring that the power and data signals
are transmitted accurately and efficiently.
Another use case for the M23 Connector is in industrial automation.
Its waterproof panel mount connector feature makes it suitable for
harsh environments where water or dust can be a concern. The fix
screw locking type ensures that the connector remains securely in
place, even in situations where there is vibration or movement.
With a minimum order quantity of 100pcs and negotiable pricing, the
M23 Panel Mount Connector can be ordered in bulk to meet the needs
of any project. Additionally, with a supply ability of 5000pcs per
week, customers can be assured of timely delivery within 10-15
days.
The M23 Panel Mount Connector comes packaged in PE bags and
cartons, with payment terms including T/T, L/C, and Western Union.
Its versatility and reliability make it an excellent choice for
anyone in need of a waterproof power connector, whether for
automotive or industrial purposes.
Support and Services:
The M23 Connector product comes with a range of technical support
and services to ensure optimal performance and functionality:
- Online technical documentation and manuals
- 24/7 technical support hotline
- Expert technical assistance from our team of engineers
- Product training and educational resources
- Product customization and design services
- Product repair and maintenance services
- Product replacement and warranty services
Our goal is to provide our customers with the best possible
technical support and services to ensure maximum satisfaction and
success with our M23 Connector product.
Packing and Shipping:
Product Packaging:
- The M23 connector will be packaged individually in a plastic bag to
protect it from dust and moisture.
- The plastic bag will then be placed in a small cardboard box.
- The cardboard box will be sealed with tape to prevent the connector
from falling out during transportation.
- The box will be labeled with the product name, model number, and
quantity.
Shipping:
- The package will be shipped via a reliable courier service.
- The package will be marked as fragile to ensure careful handling
during transportation.
- The courier service will provide a tracking number which will be
shared with the customer.
- The estimated delivery time will be communicated to the customer.
FAQ:
Q1: What is the brand name of the connector?
A1: The brand name of the connector is Rigoal.
Q2: What is the minimum order quantity?
A2: The minimum order quantity is 100pcs.
Q3: What are the certifications for the M23 connector?
A3: The M23 connector is CE and Rohs certified.
Q4: What is the delivery time for the connector?
A4: The delivery time for the connector is 10-15 days.
Q5: What are the payment terms for purchasing the connector?
A5: The payment terms for purchasing the connector are T/T, L/C,
and Western Union.
