Brand Name : | RIGOAL |
Model Number : | M12 cable |
Certification : | CE ROHs |
Price : | negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 100000 |
Delivery Time : | 7~14 |
M12 Female A/B/D Code 3pin 4pin 5pin 6pin 8pin Waterproof Cable Connector
Series | M12 |

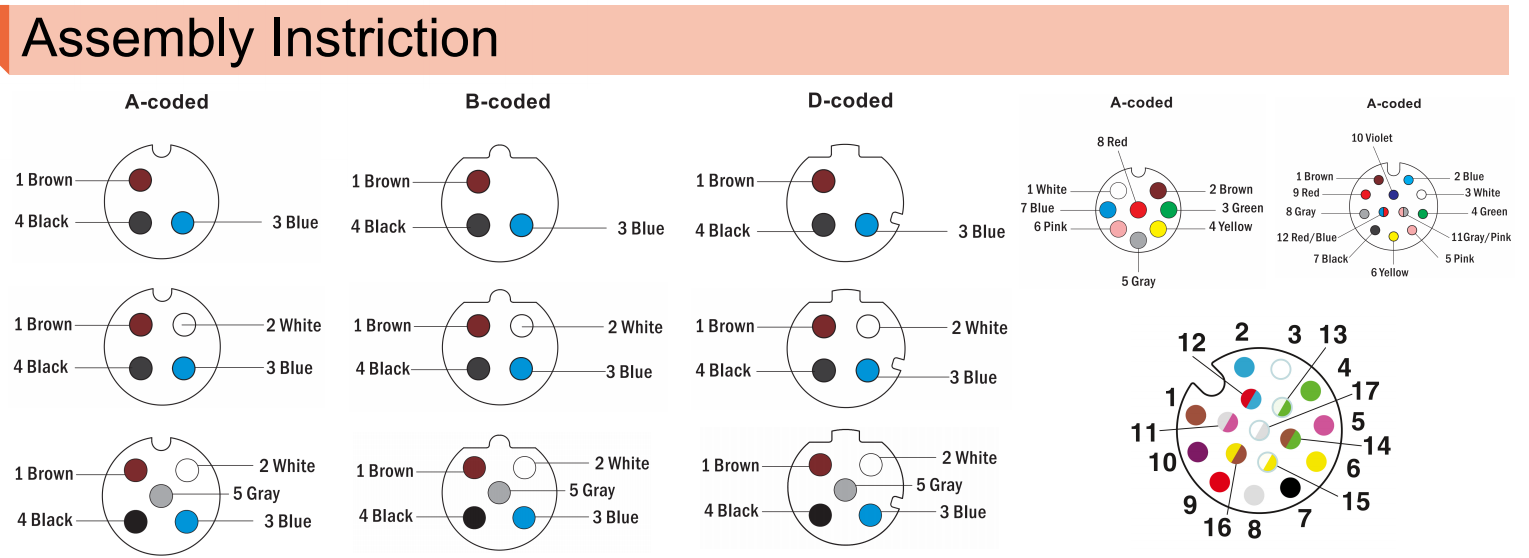

Coding | A/B/C/D/X |
Connection Type | Panel Mount/Screw type/ Solder type |
Number of Contacts | 3/4/5/6/8 Pin |
Gender | Male/Female |
Orientation | Straight/Angled |
Termination | Soldering/PCB |
Rated Current | 4A |
Operating Voltage | 250V |
Temperature Range | -25°C ~ + 80°C |
IP Rating | IP67 |
The M12 series features sensor and actuator connectors with locking thread for electronics automation, process control,
and commercial electronics.
We offer many different cable connectors, panel mount receptacles, field attachable/ installable connectors and various accessories.
Our connectors have industry standard A/B/C/D/S/T/X cording, for both screw locking and quick-locking styles.
![]() |
