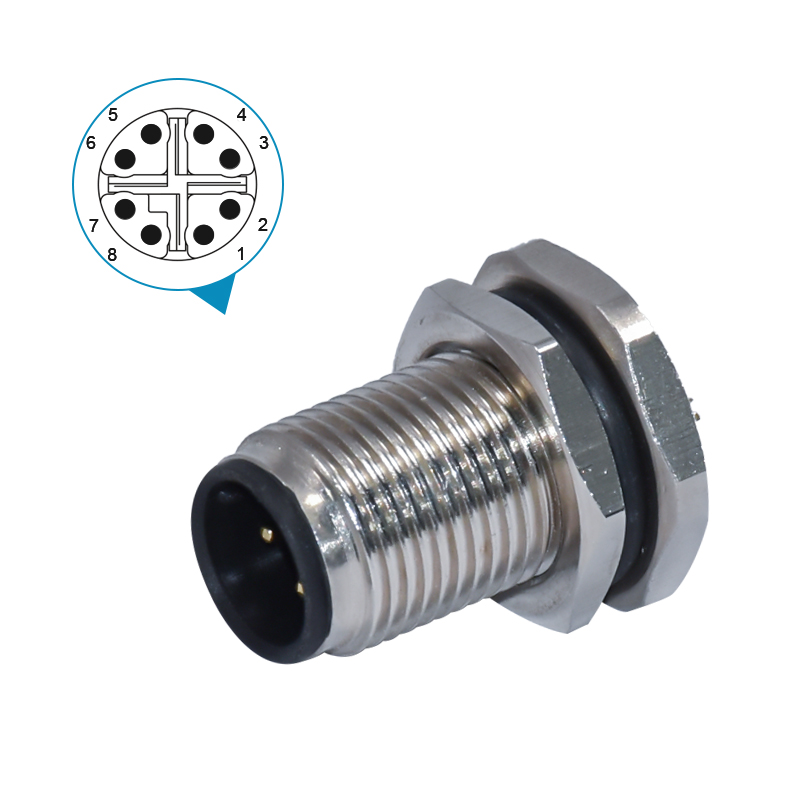

Sensor Plug And Socket M12 Connector 8 Pin Male Panel Mount
Connector With PCB Tail
Product Description
M12 Metric Circular panel mount connector with through hole PCB
contacts.
M12 connectors are offered in both male and female version and are
rated IP68.
Quick details
Core type: A code
Contacts:8pins
Rated current: 2A
Rated AC/DC: 30V
Cable size: 0.25mm
Cable size AWG:24
Mating Cycle:500times
Temperature:-40°C~+80°C
Degree of protection: IP67
Material
Cable material: PUR/PVC
Shell material: copper/Zinc
Core material:PA
Insert/ Housing: TPU
Overmold material:PVC/TPU
Terminal material:Phosphor copper
Coupling nut/screw: Brass with nickel plated screw
| Standard | IEC 61076-2-101 | Insulation Resistance | ≥100MΩ |
| Ambient Temperature | -25℃~+90℃ | Contact Resistance | ≤5mΩ |
| Connector Insert | TPU | Shielding | Unavailable |
| Connector Contacts | Brass with Gold Plated | Seal/O-ring | Epoxy resin/FKM |
| Coupling Nut/Screw | Zinc Alloy with Nickel Plated | Mating Endurance | >500 cycles |
| IP Rating | IP68/IP69K in locked condition | Certificate | CE/ROHS/IP67 |
Product photos
Applications
● Standard sensor, actuator, encoder, servo motors
● Factory automation and process control
● Industrial instrumentation
● Commercial electronics PCBA
● Industrial safety light curtain, light grid, switches
● Power supply
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
● LED display panel & outdoor LED lighting
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton
size:40*30*30cm
2.Customized according to customer's request
