M12 8pin X Coding Male To RJ45 Male Molded Shielded Waterproof
Connector Cable IP68
Product Description
General values
Connector design :connecting cord
Connector locking system :bolted
Termination :moulded on cable
Wire gauge (AWG) :4x2xAWG26
Upper limit temperature :85 °C
Lower limit temperature :-40 °C
Cable data
Sheath material :PUR
Single-lead insulation :PE
Single-lead structure :8 x 0,14
Cable diameter :6.2
Conductor resistance :14,5Ω/100 m
Temperature range, moving cable, °C from :-10
Temperature range, moving cable, °C to :60
Temperature range, fixed cable, °C from :-40
Temperature range, fixed cable, °C to :85
Bending radius, fixed cable :≥ 50 mm
Approval 1 :UL listed
Electrical values
Rated current (40 °C) :0,5 A
Rated voltage :50V AC, 60V DC V
Pollution degree :3
Overvoltage category :II
Insulating material group :II
Volume resistivity :≤ 15 mΩ
Insulation resistance :>10^8Ω
EMC compliance :shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
Material
Contact material :CuZn (brass)
Contact plating :Au (gold)
Contact body material :PA
Housing material :PUR
| General |
| Note | NOTE: Observe the permissible bending radii when laying conductors,
since the degree of protection may be put in jeopardy if the
bending forces are too high. Alleviate mechanical loads upstream of
the connector, e.g. by using cable ties. |
| Rated current at 40°C | 0.5 A |
| Rated voltage | 48 V AC |
| 60 V DC |

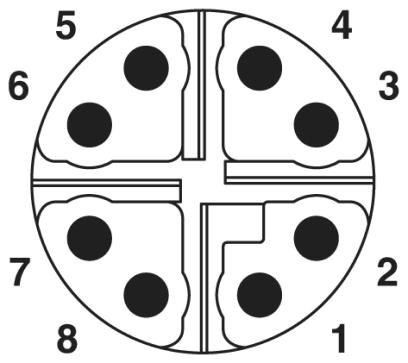

| Number of positions | 8 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | X - data |
| Standards/regulations | M12 connector Based on IEC 61076-2-109 |
| Shock, vibration EN 50155:2001 |
| Signal type/category | PROFINET CAT6A (IEC 11801), 10 Gbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Insulation displacement connection |
| Conductor cross section | 0.25 mm² 0.5 mm² (flexible) |
| 0.25 mm² 0.5 mm² (solid) |
| Conductor cross section AWG | 24 ... 20 (flexible) |
| 24 ... 20 (solid) |
| Wire diameter including insulation | 0.75 mm ... 2 mm |
| Frequency of connections between conductors of the same cross
section | 10 |
| Wire insulation material | PVC / PE / PP / rubber |
| Structure of individual litz in acc. with VDE 0295 / smallest wire
diameter | Class 2-6 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | M12 knurl |
| 5 Nm (Pressure nut) |
| Transmission characteristics (category) | CAT6A |
| Material |
| Flammability rating according to UL 94 | V0 |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Zinc die-cast, nickel-plated |
