    M12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof Connector

    Ask Lasest Price
    Brand Name : Rigoal
    Model Number : m12 panel mount connector
    Certification : CE,RoHS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    M12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof Connector

    M12 Waterproof IP67 4pin Femle Front Screw Panel Mount D Code 4A 250V Connector


    Quick details

    Core type: A.B.C.D

    Contacts:3.4.5.8.12pins

    Rated current: 4A

    Rated AC/DC: 350V

    Cable size: 0.34mm

    Cable size AWG:22

    Mating Cycle:500times

    Temperature:-40°C~+80°C

    Degree of protection: IP67/68


    Material

    Cable material: PUR/PVC

    Shell material: copper/Zinc

    Core material:PA

    Insert/ Housing: TPU

    Overmold material:PVC/TPU

    Terminal material:Phosphor copper

    Coupling nut/screw: Brass with nickel plated screw


    Electrical Characteristics
    Rated voltage250V60V30V
    Pollution degreeIII
    Test voltage500V±15V
    Rated current(40℃)4A1.5A
    Contact resistance≤10mΩ
    insulation resistance≥100MΩ

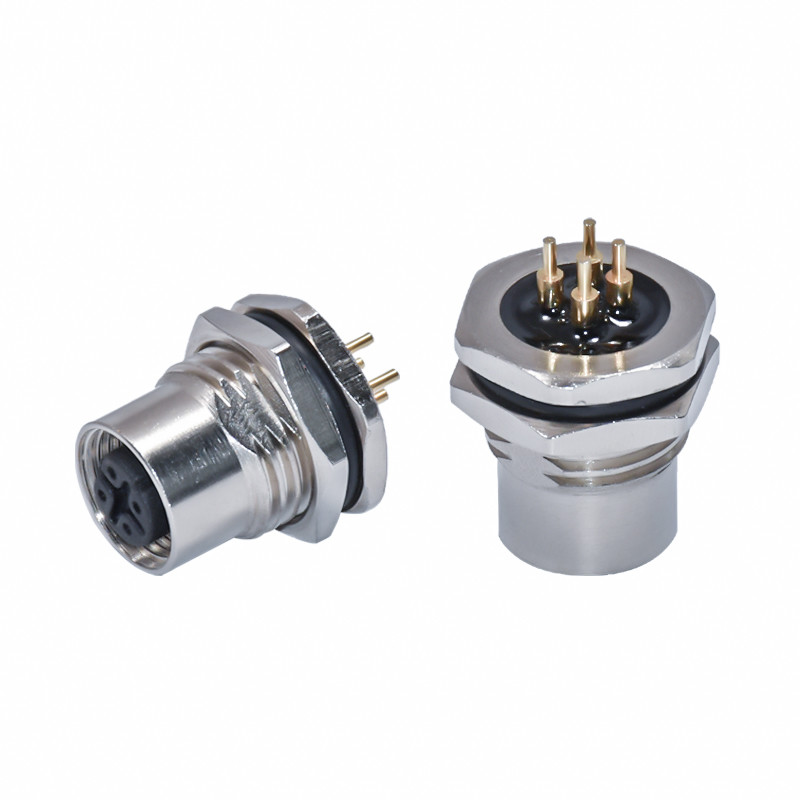

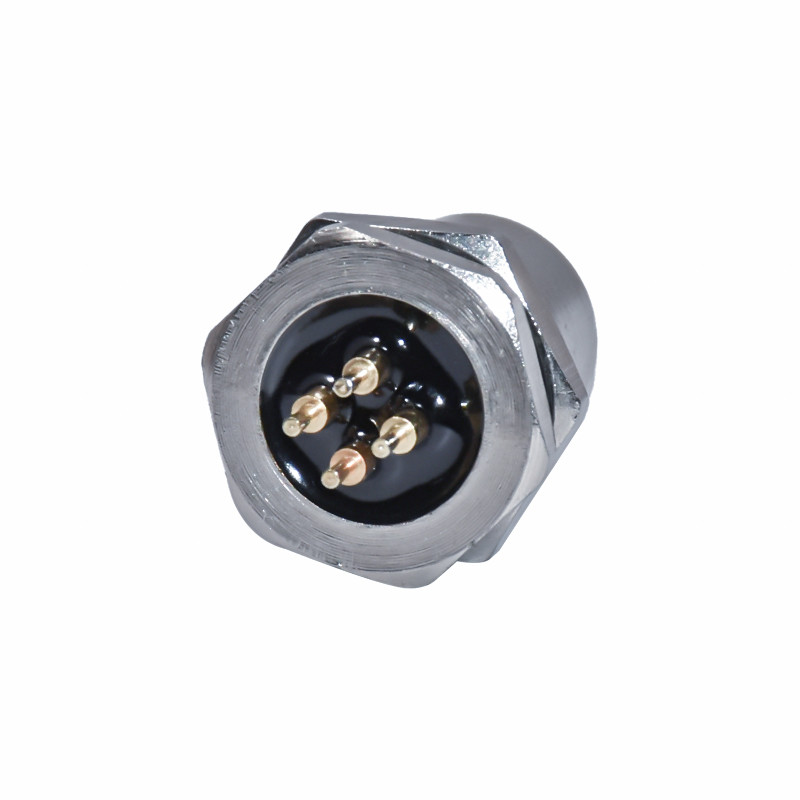

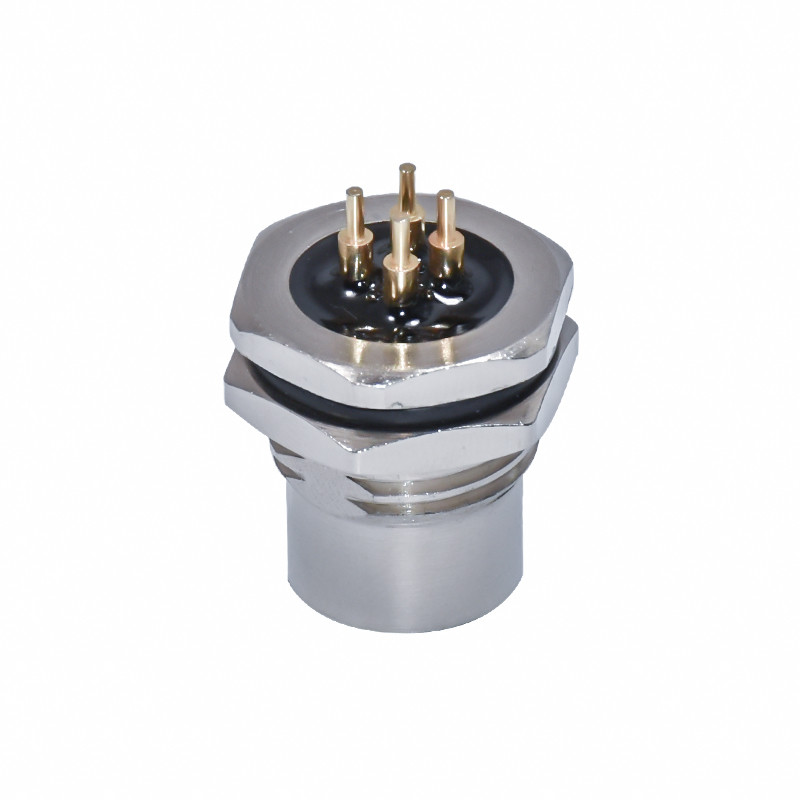

    Product photos

    M12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof Connector

    M12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof Connector

    M12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof Connector

    M12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof Connector

    M12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof Connector

    M12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof ConnectorM12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof ConnectorM12 4 Pin Connector D Coded Femle Panel Mount D Code 4A 250V Waterproof Connector


    Applications

    ● Standard sensor, actuator, encoder, servo motors

    ● Factory automation and process control

    ● Industrial instrumentation

    ● Commercial electronics PCBA

    ● Industrial safety light curtain, light grid, switches

    ● Power supply

    ● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000

    ● LED display panel & outdoor LED lighting
