    4 Pin Waterproof Bulkhead Connector

    Ask Lasest Price
    Brand Name : Rigoal
    Model Number : m12 panel mount connector
    Certification : CE,RoHS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

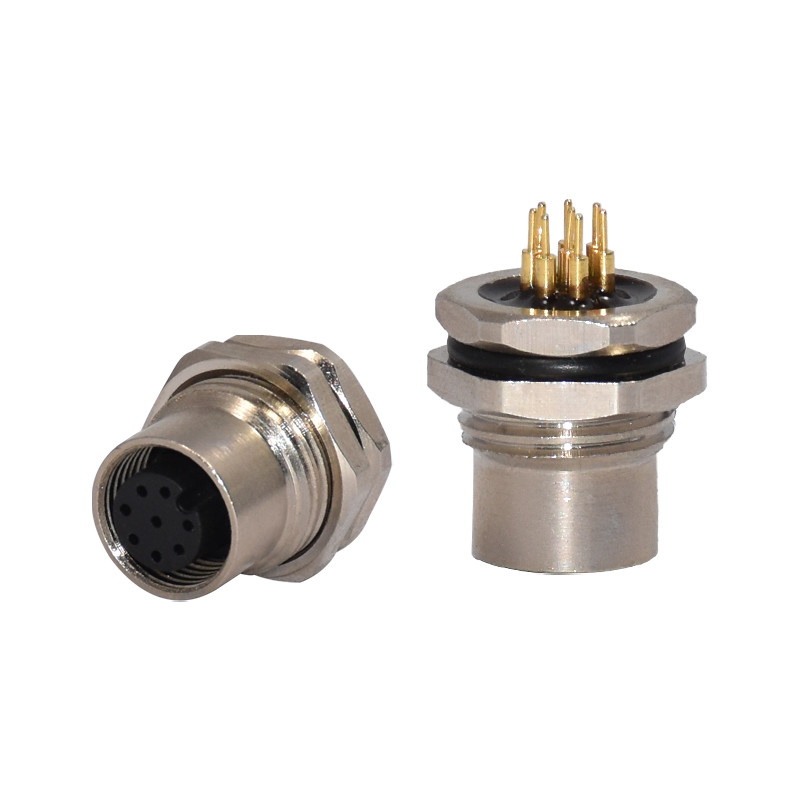

    4 Pin Waterproof Bulkhead Connector

    M12 Watreproof Bulkhead Panel Mount 4pin 8pins Female Round Electrical Connector


    Product Description

    Waterproof M12 Male & Female Front Mount.

    IP67 waterproof connectors to cable assemblies.

    Anti-oxidization and anti-UV.


    Quick details

    Core type: A.B.C.D

    Contacts:3.4.5.8.12pins

    Rated current: 4A

    Rated AC/DC: 350V

    Cable size: 0.34mm

    Cable size AWG:22

    Mating Cycle:500times

    Temperature:-40°C~+80°C

    Degree of protection: IP67/68

    4 Pin Waterproof Bulkhead Connector

    Material

    Cable material: PUR/PVC

    Shell material: copper/Zinc

    Core material:PA

    Insert/ Housing: TPU

    Overmold material:PVC/TPU

    Terminal material:Phosphor copper

    Coupling nut/screw: Brass with nickel plated screw


    Locking systemscrew M12*1.0
    Terminationsolder, moulded on cable, crimp or screw clamp
    Wire guage in mm²0.14/0.25/0.34/0.5 etc
    Wire guage in AWG26/24/22/20 etc
    Shell protectionIP67/IP68
    Mechanical operation>500 mating cycles
    Upper temperature+85℃
    Lower temperature-25℃


    Product photos


    4 Pin Waterproof Bulkhead Connector4 Pin Waterproof Bulkhead Connector4 Pin Waterproof Bulkhead Connector4 Pin Waterproof Bulkhead Connector

    Applications

    ● Standard sensor, actuator, encoder, servo motors

    ● Factory automation and process control

    ● Industrial instrumentation

    ● Commercial electronics PCBA

    ● Industrial safety light curtain, light grid, switches

    ● Power supply

    ● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000

    ● LED display panel & outdoor LED lighting

    Packsging & Shipping

    1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

    2.Customized according to customer's request


    Rigoal-----Your Best Connection!
