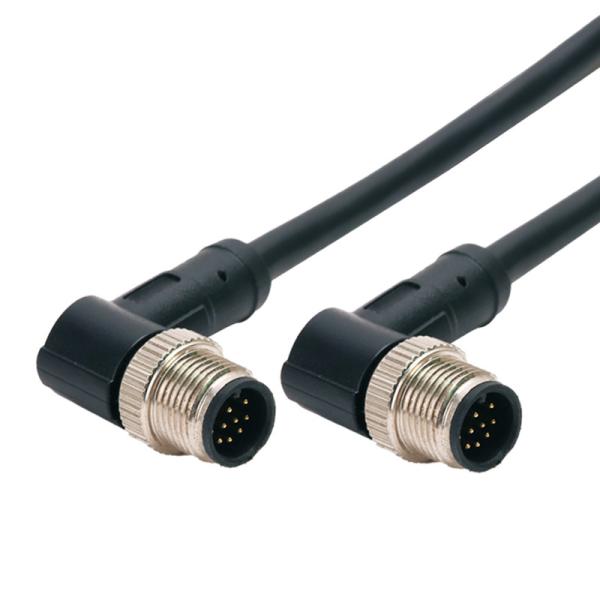

M12 Waterproof connector Right Angle 8pins Power Electrical male Molding Connector

Product description
♦ Automation M12-A Connectors. Euro-style sensor connectors with M12 locking for factory automation, process control, industrial instrumentation, and commercial electronics.
♦ The M12 is a reference to the thread type used in the connection of this product.
♦ The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.
♦ PVC and PUR cables are available to meet different customers’ needs.

Quick details
1. M12molding connector 8pins male
2. Connector locking system is bolted
3. Termination is solder
4. Cable jacket can be PUR or PVC
5. Wire gage(AWG) 26
6. Cable outlet can be 4mm - 8 mm
7. Temperature will from -40° to +85°
8. Contacts2. 3.4.5.6.8.12pins avaliable

Electrical values
Rated current (40 °C) : 2A
Rated voltage :60V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles




Product photos



Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request


M12 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness


FAQ
1. Q: What type waterproof connector do you have?
We have a lot of types connector,most of our connector is customized.We foucs on LED Waterproof connector, Assembly waterproof connector,Over-mold waterproof connector,Sensor connector etc, also customized according to your requirements.
2. Q: How to buy your products?
* Confirm the type of connector
* Confirm the Number of Connector
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way
3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.

4. Q: Can you provide customized products for us?
A: Yes. We have a professional team in providing customized solution for you.
