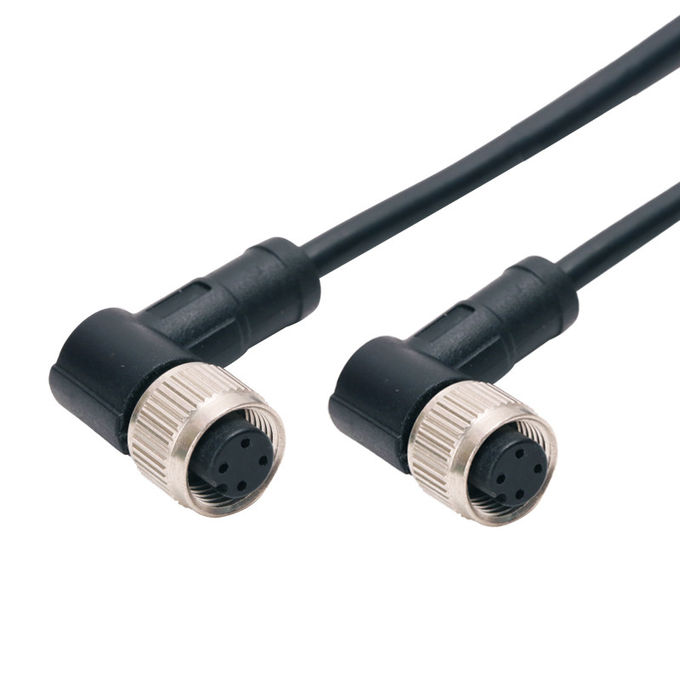

M12 Waterproof Connector A Coding IP67 90 Degree 4pins Female
Molding Connector
Description M12 waterproof connector
M12 Field wireable /installable connectors permit high flexibility
for wiring cables in the field, Contacts 3.4.5.6.8pins are avaliable, termination is solder, The wire connection normally use soldering termination, crimping
and screw termination. Wire gauge(mm) often is 0.34mm², wire Gage AWG is 24, connector
locking system is bolted
Electrical values
Rated current (40 °C) :4 A
Rated voltage :250 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity: ≤ 3 mΩ
EMC compliance: not shielded
Degree of protection:IP67
Mechanical operation:> 100 Mating cycles
| Electrical Characteristics |
| Rated voltage | 250V | 60V | 30V |
| Pollution degree | III |
| Test voltage | 500V±15V |
| Rated current(40℃) | 4A | 1.5A |
| Contact resistance | ≤10mΩ |
| insulation resistance | ≥100MΩ |
| Materials |
| Pin contact | CuZn |
| Socket contact | CuSn |
| Contact plating | Au |
| Upper temperature | PA66(UL 94V-0) |
| Female insent | PA66(UL 94V-0) |
| Material of cable jacket | PVC or PUR |
| Screw | CuZn |
| Nut | CuZn |
Product photos
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton
size:40*30*30cm
2.Customized according to customer's request
M12 connector can be used a wide fields like LED, Automation,
Sensor, mechanise equipment etc.
• LED lighting , white light , color light etc
• Low current equipement
• Connector be used in narrow environment
• Communication equipement
• Lighting harness
Our service
1. We are the manufacture, Rigoal is our brand, and has built a
great reputation in China even around the world.
2. We guaranteed that 100% in good quality, the price will be
reasonal.
3. All the inquiry will be response within 24 hours, the
commucation will be effective.
4. Special feature and service can be provided upon requirement.
Rigoal-----Your Best Connection!
