M12 Waterproof Connector 3 4 5 8 12pins Signal Molding Straight Connector With Cable

Product description

M12 connectors are established as one of the most reliable and efficient connection standards for Industrial Machinery and Factory Automation applications. With an industry standard screw locking mechanism, IP67 rating rate and high performance capabilities, this range is ideal not only for sensor connections but also for various fieldbus systems.

M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.

We can also customize terminal connectors to meet different requirements, including wafer, stripping with tin plating, and so on.

Quick details

1. M12 molding connector 5pins male gender
2. 2, 3, 4, 5, 8 ,12poles per connector are available
3. PUR/PVC cable accessories available upon customer requesting
4. Operating voltage 300V-DC/ 250V-AC/ 60V/ 30V, Rated current 4A/ 2A
5. UL94 V-0 PA66+GF plastic Housing / Metal shell
6. Degree of protection IP67

7. Temperature will from -40° to +80°

8. Connector locking system is bolted

9. Wire gauge(mm) is 0.34mm²

10. Wire gage(AWG) 22

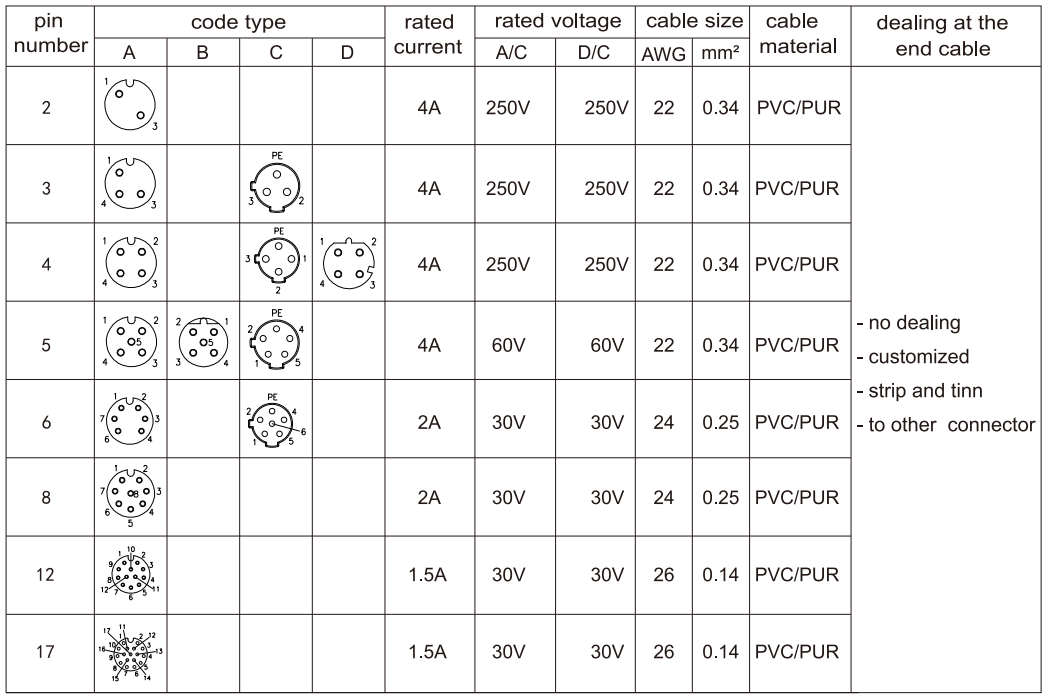

Electrical values

Rated current (40 °C) :1.5A~4 A

Rated voltage :60 V

Rated impulse voltage :1500 V

Pollution degree :3

Contact resistance:≤10mΩ

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

Insolution resistance:≧100mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles

Product photos

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

M12 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

Our service
- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
- Special service for your urgent case
- Customer is always our focus.

Rigoal-----Your Best Connection!

Company Profile：

Factory profile：

Shenzhen Rigoal Connnector Co.,Ltd. was established in 2013 years and is located in Shenzhen, China,enjoying convenient transportation and beautiful environment. Our company covers an area of 3500 square meters and has 160 employees at present. Company has obtained ISO9001 2015 certification.

We are specialized in waterproof connector and cable.Rigoal company focus on ODM and OEM connector and cable. Our company has rich experience in the senor , power and Ethernet industry. Our main products include M5 M8 M9 M10 M12 M16 M18 M20 M23 M40 RD24 RD30 mini7/8 etc circular waterproof connector and cable. push-pull connectors ,Solenoid value connector, RJ45 USB D-SUB waterproof connector and LED area power waterproof connector and cable .Plastic T or Y type connector and cables .Most of our products have got UL CE Rohs IP68 etc certificates.Besides, we are making great efforts to develop new products to meet different requirements. Welcome your custom-made.

Our products mainly clients in Europe ,USA, Australian,Korea etc. We also welcome all over the world orders.Our company has 30 equipment to strictly control the product quality.Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
