Brand Name : | RIGOAL |
Model Number : | m12 waterproof connector |
Certification : | CE,Rohs |
Price : | negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Delivery Time : | 14 |

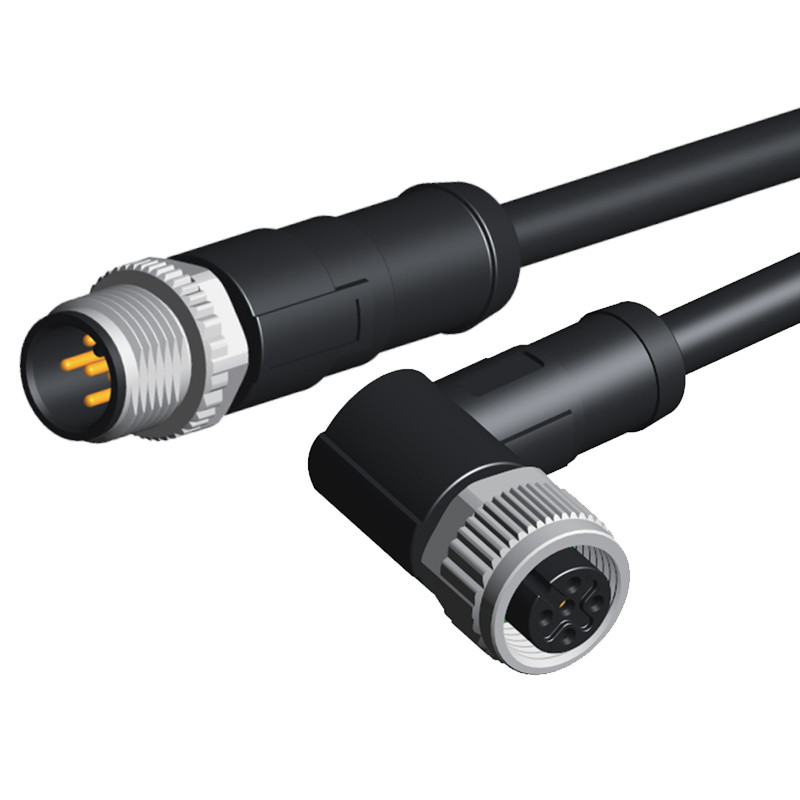

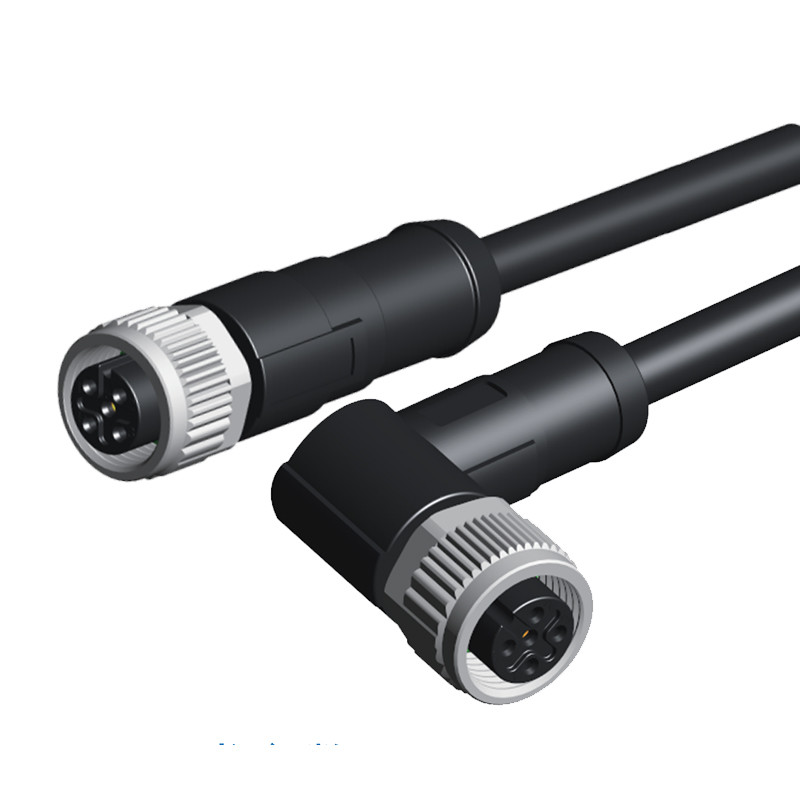

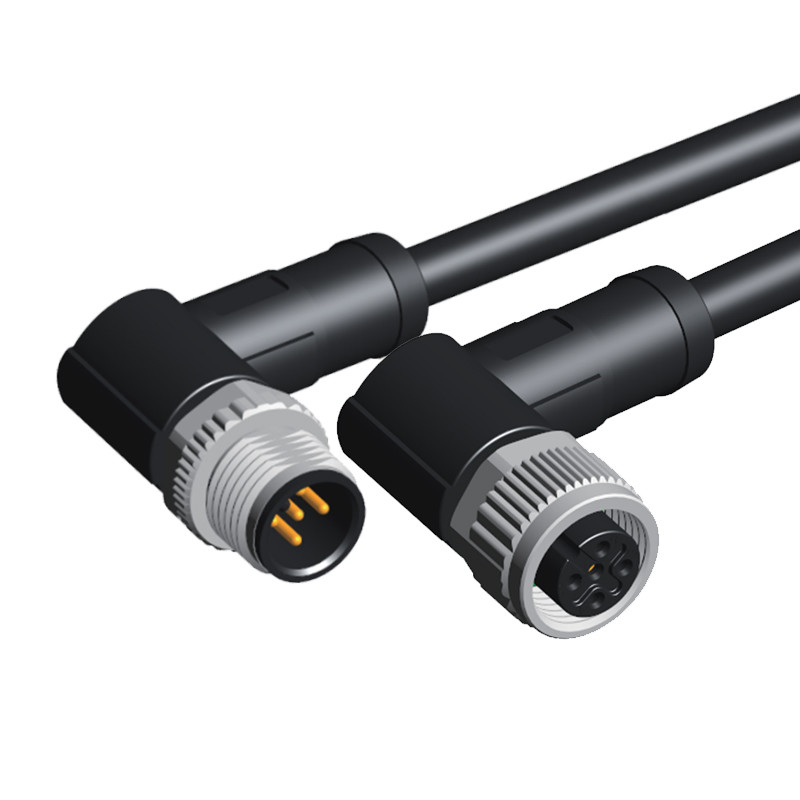

5/8/12P Waterproof IP67/68 Bend Straight Shielded M12 Female Cable Connector With A/B/C/D Coding UL Approved
Specifications
General Infomation | |||
Standard | IEC 61076-2-101 | Insulation Resistance | ≥100MΩ |
Ambient Temperature | -40℃~+80℃ (fixed installation) -20℃~+80℃ (flexible installation) | Contact Resistance | ≤5mΩ |
Connector Insert | PA | Shielding | Available |
Connector Contacts | Brass with Gold Plated | Connector Overmold | TPU |
Coupling Nut/Screw | Zinc Alloy with Nickel Plated | Mating Endurance | >500 cycles |
IP Rating | IP68/IP69K in locked condition | Certificate | UL/CE/ROHS/IP67/REACH/IP68 |
![]() |
