Solenoid Valve Connector IEC Standard 3 Pin Female Solenoid Valve
Waterproof Connector
Production description
1. Our product lines have covers DIN43650 Form A / B / C and other
special styles.
2. The solenoid valve connectors are normally used to supply power
to solenoid valves, which are widely used in:
* Hydraulic
* Pneumatic
* Electrical Appliance industry
3. a wide range of solenoid valve connectors with available stock
for immediate delivery at extremely favorable prices.
4. Wide range of DIN43650 Industry standard form A/B/C types,
special on request
5. A variety shell color: black, brown and transparent, gray
6. A range of options include 24V, 110V and 230V operation, LED
indication, and models with or without surge suppression.
7. Solenoid valves are used wherever fluid flow has to be
controlled automatically
8. The variety of different designs which are available enables a
valve to be selected to specifically suit the application in
question
9. We specialize in interconnection devices, electronic timers,
proximity sensors, modules and specialty electronic devices
Material
Contact material: CuSn (bronze)
Contact plating: Ni (nickel)
Contact body material: PA
Housing material: PA
Pin number: 2+PE
Coding: B with LED
| Product Data |
| Rated current | 10A |
| Rated voltage | 250V |
| Operating Temperature | -30℃~120 ℃ |
| Connector locking system | Screw |
| Mechanical operation | >500 mating cycles |
| Contact resistance | ≤15mΩ |
| Contact material | CuSn (bronze) |
| Housing material | PA |
| EMC compliance | not shielded |

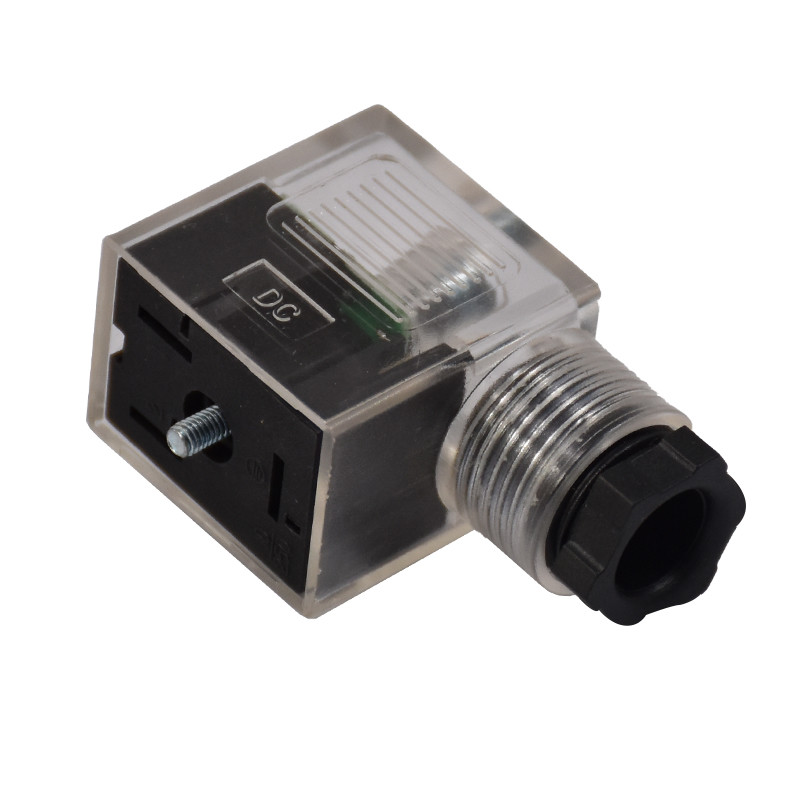

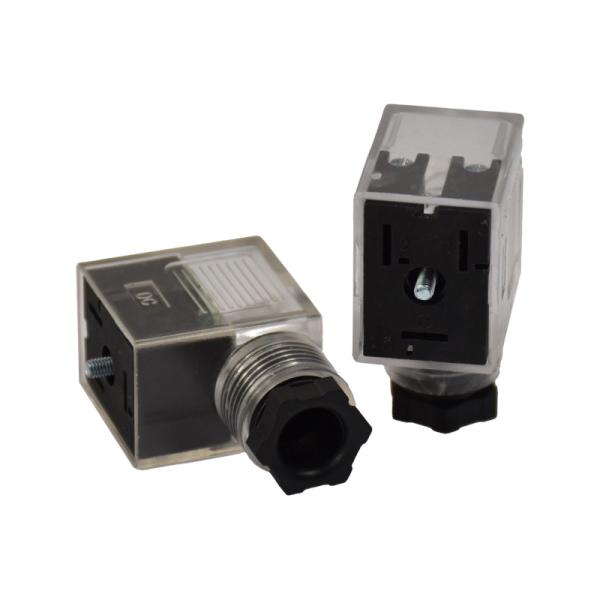

Product photos
Quality statement:
● Screws/nuts materials: brass with nickel plating, CNC parts
● Male contacts materials: brass with gold plating, machined solid
pin
● Female contacts materials: phosphor bronze with gold plating,
machined solid pin
● Protection degrees: IP67/IP68 in locked status
● RoHS Directive-compliant
Rigoal-----Your Best Connection!
