Solenoid Valve Connector 3+PE DIN 43650 C Female Solenoid Valve Connector Plug

Our solenoid valve connector features a complete line-up of directional control, proportional and microfluidic valves designed and customize-able for next generation industrial food production, medical equipment, nuclear facilities and other rigorous applications, solenoid valves set industry standards for reliability, adaptability and energy efficiency.

General Details

Pole Format: 3+PE

Connector design: female connector

Connector locking system: central bolt

Termination Method: screw clamp

Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²

Wire gauge (AWG): min. AWG 22, max. AWG 16

Cable outlet: 4,0 - 6,0 mm

Upper limit temperature: 125 °C

Lower limit temperature: -45 °C

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA

Rated current (40 °C): 10 A

Rated voltage: 250 V

Rated impulse voltage: 4000 V

Pollution degree: 3

Overvoltage category: III

Degree of protection: IP65

Electrical values

Component part drawing

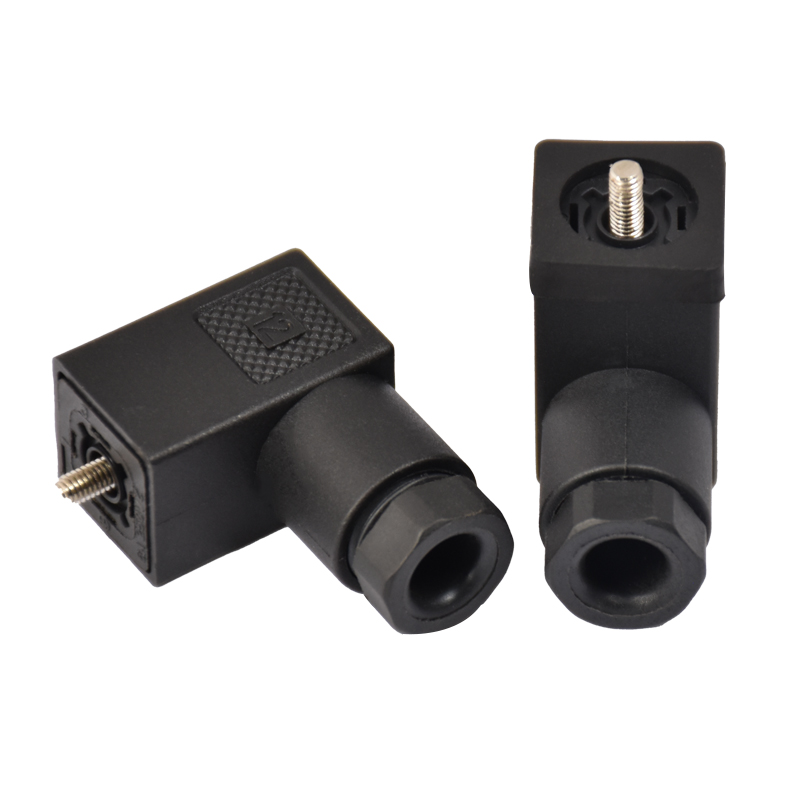

Product Photos

Application

food production, medical equipment, automotive, oil and gas and many other industries.
