Solenoid Valve Connectors Din 43650-C Line-Socket Plug DC Voltage
Coils Connector
1. The solenoid valve controls the flow of the fluid from inlet
port to the outlet port
2. Whether applications require directional control, proportional
or miniature valve technology
3. The solenoid valve controls the flow of the fluid from inlet
port to the outlet port
4. The outlet port is eventually connected to the process where the
fluid is required
5. This is body of the solenoid coil. The body of the solenoid coil
is cylindrical in shape, and it is hollow from inside
6. these solenoid valves are suitable for all hazardous areas of
category 2 and 3 and are certified in accordance with ATEX, IECEx,
EAC, NEPSI, Kosha, TIIS
General Details
Contacts: 3+PE
Connector design: female connector
Connector locking system: central bolt
Termination: screw clamp
Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²
Wire gauge (AWG): min. AWG 22, max. AWG 16
Cable outlet: 6,0 - 8,0 mm
Upper limit temperature: 120 °C
Lower limit temperature: -30 °C
Electrical values
Rated current (40 °C): 10 A
Rated voltage: 250 V
Rated impulse voltage: 4000 V
Pollution degree: 3
Overvoltage category: III
Insulating material group: III
Volume resistivity: ≤ 15 mΩ
Insulation resistance: ≥ 10¹⁰Ω
EMC compliance: not shielded
Degree of protection: IP65
Mechanical operation: > 50 Mating cycles
Material
Contact material: CuSn (bronze)
Contact plating: Ni (nickel)
Contact body material: PA (UL 94 HB)
Housing material: PA
| LED Indicator | Confirms voltage supply |
| Contact resistance | 20 mΩ |
| Indicator Light | No |
| Termination Method | Screw |

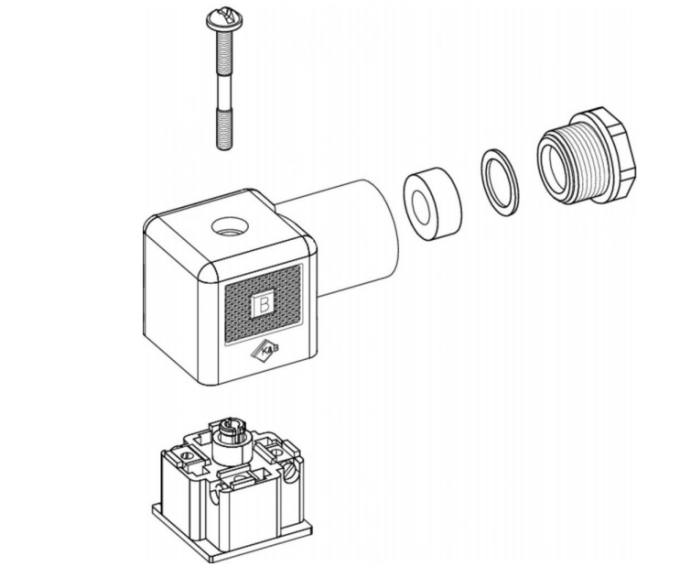

Component part drawing

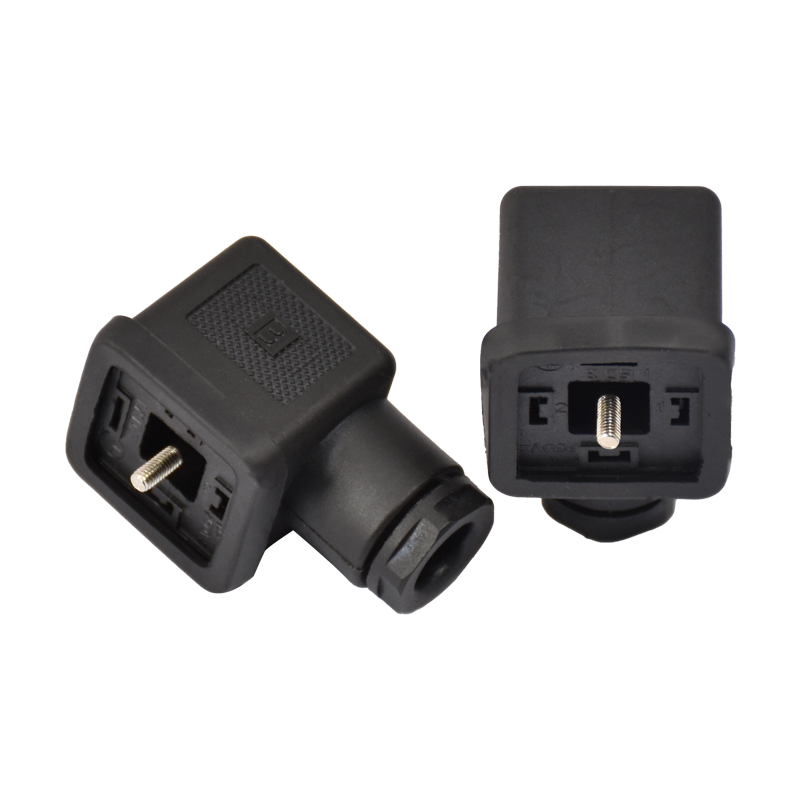

Product photos
