Solenoid Valve Connectors Waterproof Female Valve Cable Socket With
Molded-Onlead
Product information
1. Form A connectors are currently available in PG 9, PG 11, M16,
or 1/2" NPT thread sizes.
2. Form B features PG 9 or 1/2" NPT threads, while Form C
connectors are only available with PG 7 thread.
3. DIN 43650 refers to the set of standards made by DIN (Deutsches
Institut fur Normung), which is the German standard setting
organization.
4. High quality solenoid valve connectors and over-molded solenoid
cables for pneumatic solenoid air valves
5. DIN 43650A standard connectors can be rotated in 90 degree
intervals according to the coil pin orientation
General Details
Contacts: 2+PE
Connector design: female connector (panel mount)
Connector locking system: central bolt
Termination: screw clamp
Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²
Wire gauge (AWG): min. AWG 22, max. AWG 16
Cable outlet: 6.0 - 8.0 mm
Upper limit temperature: 120 °C
Lower limit temperature: -30 °C
Electrical values
Rated current (40 °C): 10 A
Rated voltage: 250 V
Rated impulse voltage: 4000 V
Pollution degree: 3
Overvoltage category: III
Insulating material group: III
Volume resistivity: ≤ 15 mΩ
Insulation resistance: ≥ 10¹⁰Ω
EMC compliance: not shielded
Degree of protection: IP65
Mechanical operation: > 50 Mating cycles
Material
Contact material: CuSn (bronze)
Contact plating: Ni (nickel)
Contact body material: PA (UL 94 HB)
Housing material: PA
| Cable gland | PG9 PG11 |
| Suitable cable size | 4.5-7.0mm 6.0-9.0mm |
| Conduct size | Max. 1.5mm² |
| Screw | Stell with Zn plated |
| Contact | PS with silver plated |
Component part drawing

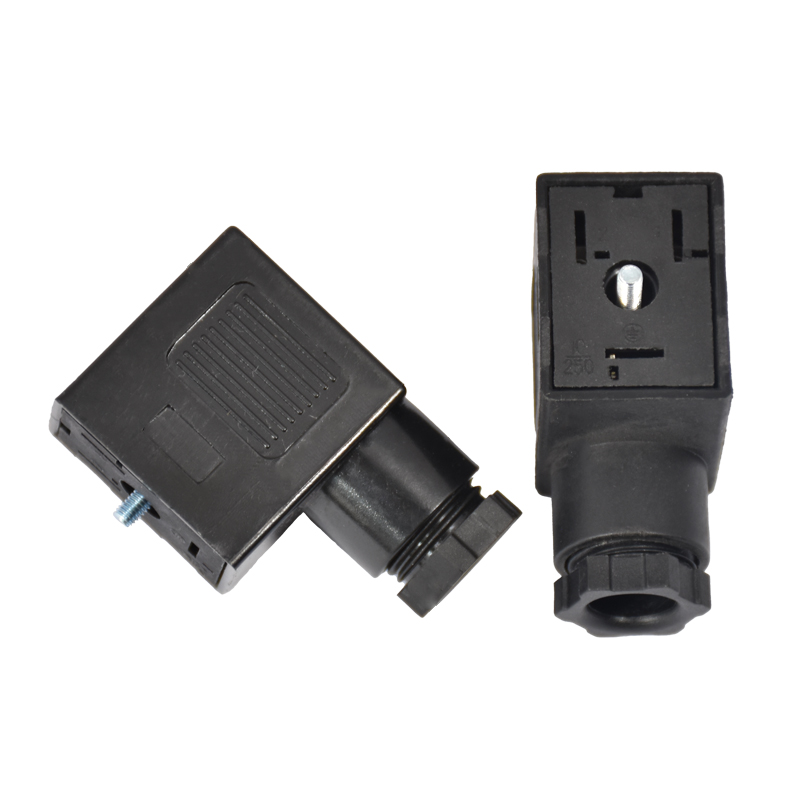

Product Photos
Rigoal is now manufacturing the whole range of M5,M8,M12,M16,M23 7/8" waterproof connector and normalized Din
43650 rectangular connectors type A,B,C, both to be cabled and molded,with or without electrinic
components.The connection products are widely sed in field bus components,Ethernet,solenoid
valves,pressure sitches,motors-control,protoelectric barries,flow
monitoring devices,proximity switches,and sensors in the
hydraulic,pneumatic and automation industries.
