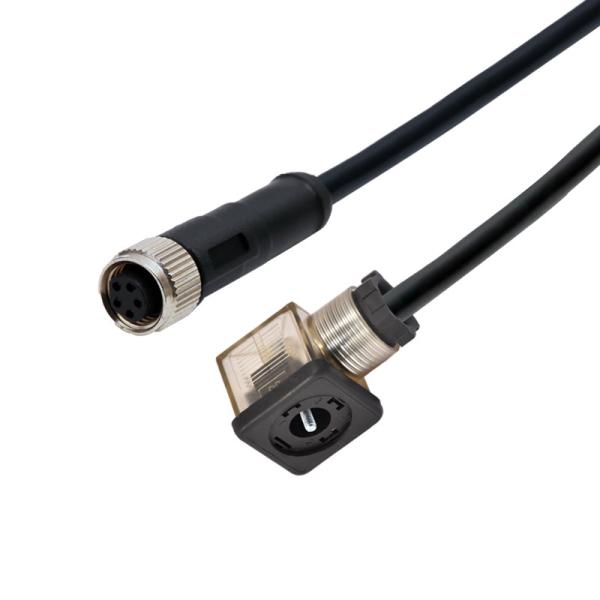

Solenoid Valve Connector A Type 3+PE Plug With LED To M12 5pins
Female Connector
Product description
1. Solenoid (also known as Solenoid valve) refers to a variety of
transducer devices converting energy into linear motion
2. It is an integrated device containing an electromechanical
solenoid which actuates either a pneumatic or hydraulic valve, or a
solenoid switch. Connectors may either be purchased individually or
as part of a molded cable assembly
3. A wide variety of solenoid valve connector options are available
to you, such as application
4. High quality solenoid valve connectors and over-molded solenoid
cables for pneumatic solenoid air valves
5.The lower voltage models, 24V or 110V AC/DC, include built-in surge
suppression, yellow LED indicator and are rated for connecting with
electronics
General Details
Contacts: 3+PE
Connector design: female connector
Connector locking system: central bolt
Termination: screw clamp
Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²
Wire gauge (AWG): min. AWG 22, max. AWG 16
Cable outlet: 6,0 - 8,0 mm
Upper limit temperature: 120 °C
Lower limit temperature: -30 °C
Electrical values
Rated current (40 °C): 10 A
Rated voltage: 250 V
Rated impulse voltage: 4000 V
Pollution degree: 3
Overvoltage category: III
Insulating material group: III
Volume resistivity: ≤ 15 mΩ
Insulation resistance: ≥ 10¹⁰Ω
EMC compliance: not shielded
Degree of protection: IP65
Mechanical operation: > 50 Mating cycles
Material
Contact material: CuSn (bronze)
Contact plating: Ni (nickel)
Contact body material: PA (UL 94 HB)
Housing material: PA
Component part drawing
| Connector type | m12 to selnoid valve connector |
| Contacts | 3+PE / 5PINS |
| Gender | female |
| Degree of protection | IP65 |
| Size of tail | PG7 or PG9 |
