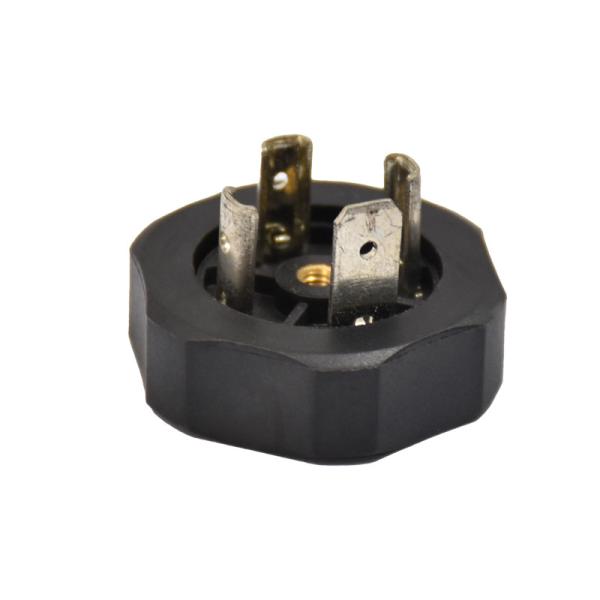

Solenoid Valve Connectors Base CE Approved Solenoid Valve Connector
Screw Nut
Din rectangular connector vave plug, waterproof connector IP65
Design as per DIN EN 175301-803
Protected from dust and water spray, resistant to many oils and
chemical
Professional for hydraulic,pneumatic and electro-magnetic
actuators.
Model A,B,C
Number of poles 3, 4 including PE
Operating voltage UC 250v , current 10A
Whether applications require directional control, proportional or
miniature valve technology,
our world-class engineers provide the products and custom systems
assemblies for food production, medical equipment, automotive, oil
and gas and many other industries.
General Details
Contacts: 2P+E / 3P+E
Connector design: male connector
Connector locking system: central bolt
Termination: screw clamp
Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²
Wire gauge (AWG): 18
Upper limit temperature: 100 °C
Lower limit temperature: -20 °C
Electrical values
Rated current (40 °C): 10 A
Rated voltage: 250V
Rated impulse voltage: 4000V
Pollution degree: 3
Overvoltage category: III
Insulating material group: III
Volume resistivity: ≤ 15 mΩ
Insulation resistance: ≥ 10¹⁰Ω
EMC compliance: not shielded
Degree of protection: IP65
Mechanical operation: > 50 Mating cycles
Material
Contact material: CuSn (bronze)
Contact plating: Ni (nickel)
Contact body material: PA (UL 94 HB)
Housing material: PA
| Standard | DIN ED175 301-803-A |
| Contact | brass with tin plating |
| NUT | brass with nickel plating |
| Rated voltage | AC / DC 400V |
| PLUG FOOT TYPE | 2+1 GND, 3+1 GND |
Component part drawing
Product Photos
Solenoid Valve Connector Series
