    PA66 Circular In Line 5 Pin Female Connector SP21 IEC Standard

    Ask Lasest Price
    Brand Name : RIGOAL
    Model Number : Weipu connector
    Certification : CE,RoHS
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 sets/day
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    PA66 Circular In Line 5 Pin Female Connector SP21 IEC Standard

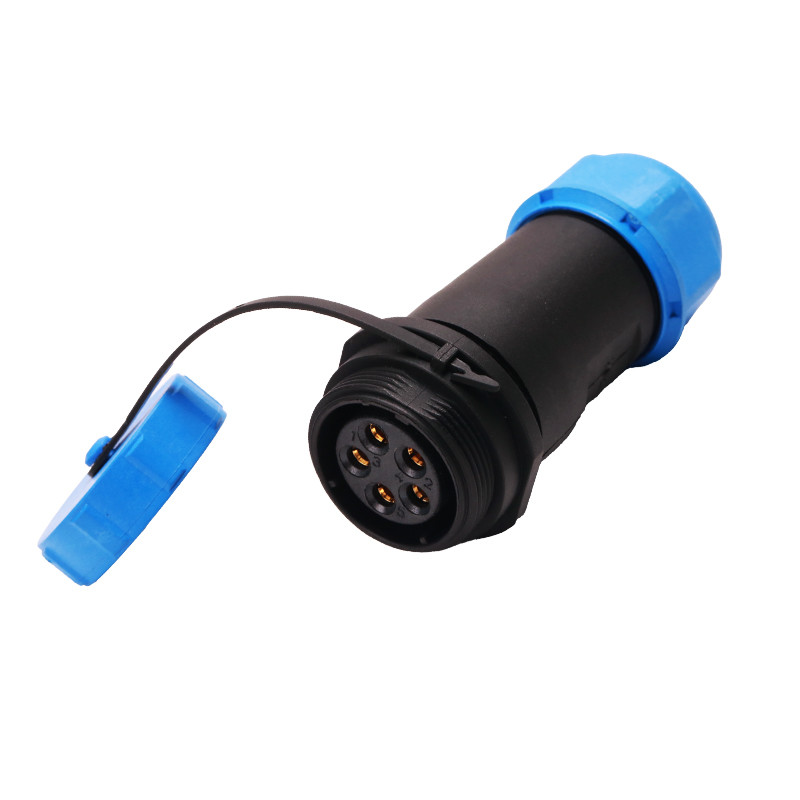

    Weipu IP68 waterproof PA66 circular In-line 5 pin female connector SP21


    Description


    • The current and voltage rating of multi pin waterproof connector are 10A+5A/125V+60V.

    • The current/voltage rating of IP67(push locking) or IP68(screw locking).
    • multi-pins(2-8 pins) for varies industrial demands.

    • Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
    • gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
    • Screw locking style and push locking,easy to assemble.
    • High current application safety and stable wire.

    • the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.


    Electrical Parameters
    Number of Poles5
    Current Rating50A max
    Voltage Rating600VAC max
    Durability Voltage2500VAC @ 60 s.

    Main features


    1. Advanced structure: IP67 self locking connector

    2. Multicore:2,3,4,5,6,7,8,9 to 32 pins are optional

    3. Connection method: soldering(welding),screw terminal

    4. Assembly: cable to cable ,male and female without cable

    5. Certifications: UL, TUV, CE,ROHS,CQC.

    6. Connection method: push pull locking type


    Technical Parameters
    Contact Resistance10 mΩ max
    Insulation Structure500 MΩ at 500VDC
    Operating Temperature-40°C ~ +105°C
    IP ClassIP67 (1m / 30min)
    Mold MaterialPA66
    Contact/Terminal MaterialGold Plated Brass
    Seal MaterialSilicone
    Operation Parameters
    Voltage Rating600VAC max
    Current Rating50A max
    Min Wire Size OD6.5mm ~ 10mm
    Max Wire Size OD10.5mm ~ 18mm
    Max.Cable Cross Section Area0.5mm2 ~ 6.0mm2
