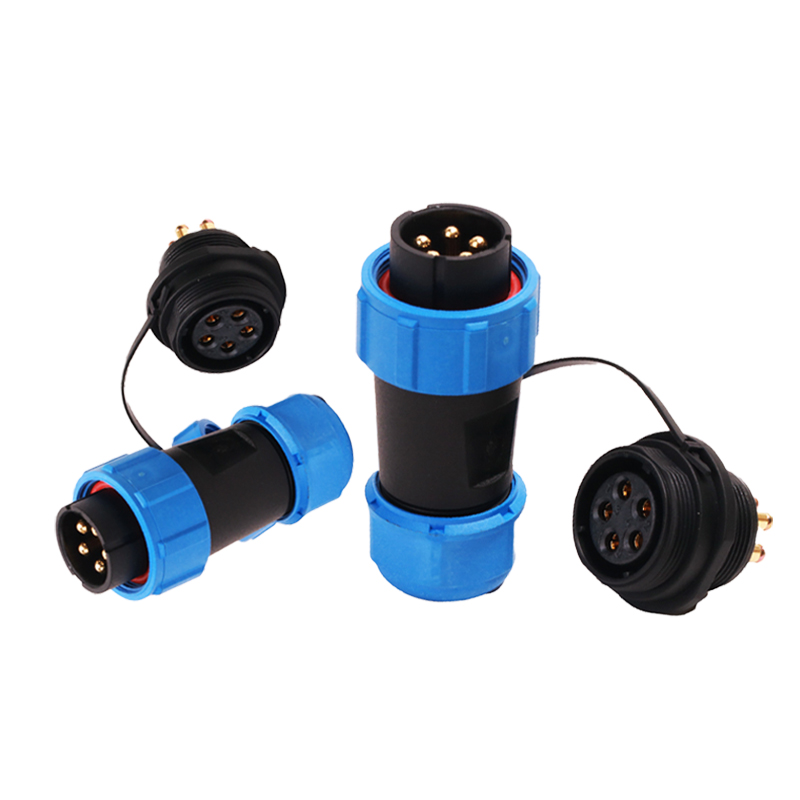

Watreproof Power ConnectorWeipu IP68 SP21 5pin Electrical Threaded
Cable Connector
SP series is IP68 connector made of anodized aluminium,especially
designed for the high-end market,with push and pull coupling,It is
one of our popular waterproof connectors.t
the stunning aluminium made shell made it widely used in many
high-end areas,such as medical devices,high-end equipments,testing
or measuring equipments,communication fiel etc.It can be used for
both data and power.
General Details
Coupling:Threaded coupling
Shell material: Nylon66
Fire resistance: V0
Termination: Solder/Screw
IP rating: IP68
Mating cyclc: >500times
Temperature range: -25°C~~+85°C
Current Rating:5A-10A
Contact Gender:Male/female
Housing Material:Plastic
Material
Shell material: Nylon66 fire resistance:V0
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic
| Material and Electrical Data |
| Product name | Weipu IP68 waterproof SP13 3pin electrical threaded cable connector |
| Insert material | PPS max temperature260℃ |
| Shell material | PC,Nylon66,fire resistance: V-0 |
| Contact material | Brass with gold Plating |
| Coupling | Threaded coupling |
| Mating cycles | 500 times |
| Number of contacts | 2-9 POLES |
| Gender | male to female |
| Mounting type | butting cable connector |
| Connector size | standard |
| Current Rating | 5A-10A |
| IP Rating | IP68 |
| Contact Gender | male/female |
| Mating Type | Threaded |
| Body Orientation | Straight |
| Housing Material | Plastic |
| Maximum Operating Temperature | ‘+85°C |
| Minimum Operating Temperature | ’-25°C |
| Contact Material | Brass |
| Contact plating | gold-plated |
| Panel hole cutout diameter | 13mm |
| Cable outer diameter I | 4-6.5MM |
| Cable outer diameter II | 5-8MM |
Number of Contacts
Product photos
Packaging & Shipping
Usually standard size 38*32*32cm/CTN,1000pcs/CTN
approval customized based on customers' requirements
MOQ: 100pcs each item
Delivery time: 5-7days after the payment received
Shipment: by Express,by Air, by Sea
Payment terms: 100% TT in Advance
Payment method: T/T, Western Union, Paypal
Weipu SP13 17 21 Connectors
SP series of threaded IP68 connectors has a bigger and stronger
shell. With its IP68 rating
That coupled with the IP68 rating excels in harsh environments. And
it's very flexible
When choosing a female connector, the robust connectors can be used
for both cable to cable (inline) and cable to panel-mount
connections.
All models are highly reliable and excellent quality.
