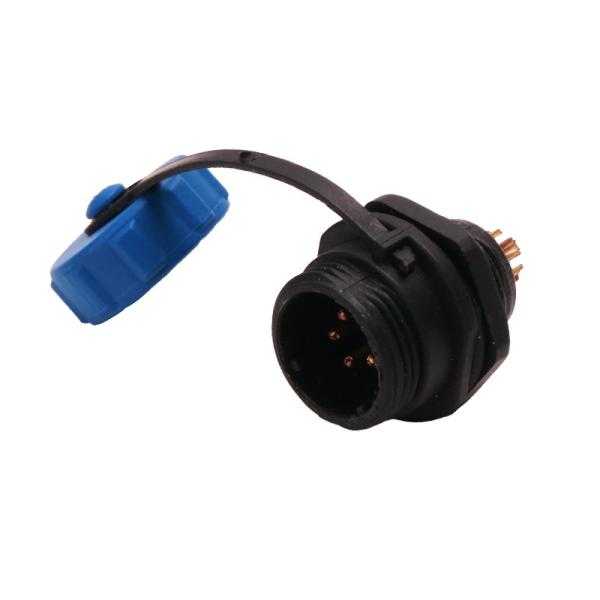

IP68 Weipu SP13 Plastic panel mount connector, male 5pins connector
with cap
Product description
♦ That coupled with the IP68 rating excels in harsh
environments.All models are highly reliable and excellent quality.
♦ When choosing a female connector, this version should really be
one you consider,morever, These robust connectors can be used for
both cable to cable (inline) and cable to panel-mount connections.
♦ With its IP68 rating, each product is excellent within harsh
environments, giving you peace of mind.
♦ If there is a require about dustproof and waterproof,this product
can be used a lot.
General Details
Coupling:Threaded coupling
Shell material: Nylon66
Fire resistance: V0
Termination: Solder/Screw
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500times
Temperature range: -25°C~~+85°C
Current Rating:5A-10A
Contact Gender:Male/female
Housing Material:Plastic
Material
Shell material: Nylon66 fire resistance:V0
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic
| Number of contacts | 2-9 POLES |
| Gender | male to female |
| Mounting type | butting cable connector |
| Connector size | standard |
| Current Rating | 5A-10A |
| IP Rating | IP68 |
| Contact Gender | male/female |
| Mating Type | Threaded |
| Body Orientation | Straight |
| Housing Material | Plastic |
| Maximum Operating Temperature | ‘+85°C |
| Minimum Operating Temperature | ’-25°C |
Number of Contacts
Product photos
Packaging & Shipping
Usually standard size 38*32*32cm/CTN,1000pcs/CTN
approval customized based on customers' requirements
MOQ: 100pcs each item
Delivery time: 5-7days after the payment received
Shipment: by Express,by Air, by Sea
Payment terms: 100% TT in Advance
Payment method: T/T, Western Union, Paypal
Weipu SP13 17 21 Connectors
SP series of threaded IP68 connectors has a bigger and stronger shell. With its IP68 rating
That coupled with the IP68 rating excels in harsh environments. And
it's very flexible
When choosing a female connector, the robust connectors can be used
for both cable to cable (inline) and cable to panel-mount
connections.
All models are highly reliable and excellent quality.
Our service
1.100% high quality, all failed parts get free warranty within 30
days after received.
2.Accept 3years warranty upon customer requirement.
3.Repairs parts are available within 3years; we will inform the EOL
products to you from time to time
4.Free LOGO on the surface of over-molded connectors can be
provided upon customer requirement.
5.Unique designed package for you can be provided upon customer
requirement.
6.Special feature and service can be provided upon requirement.
