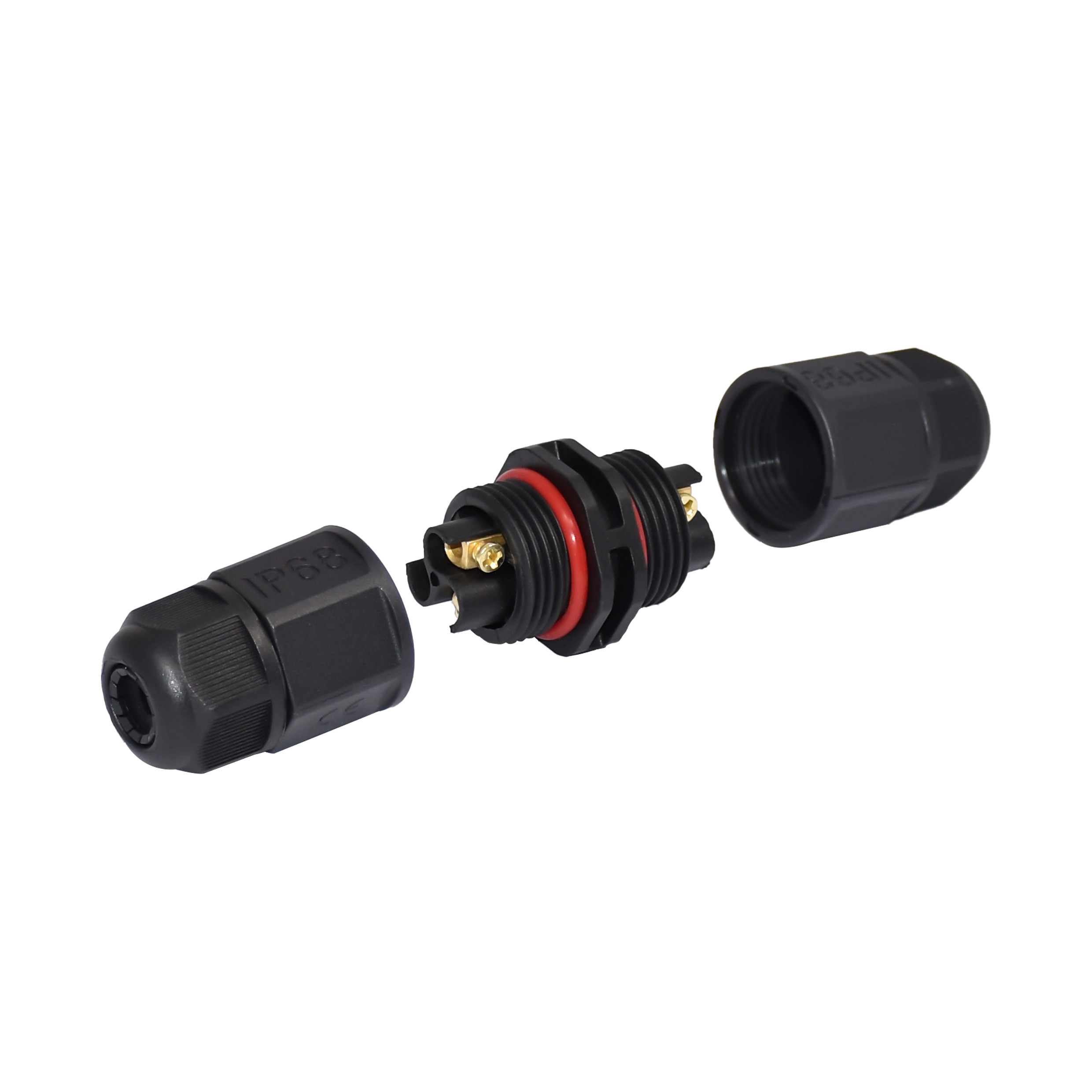

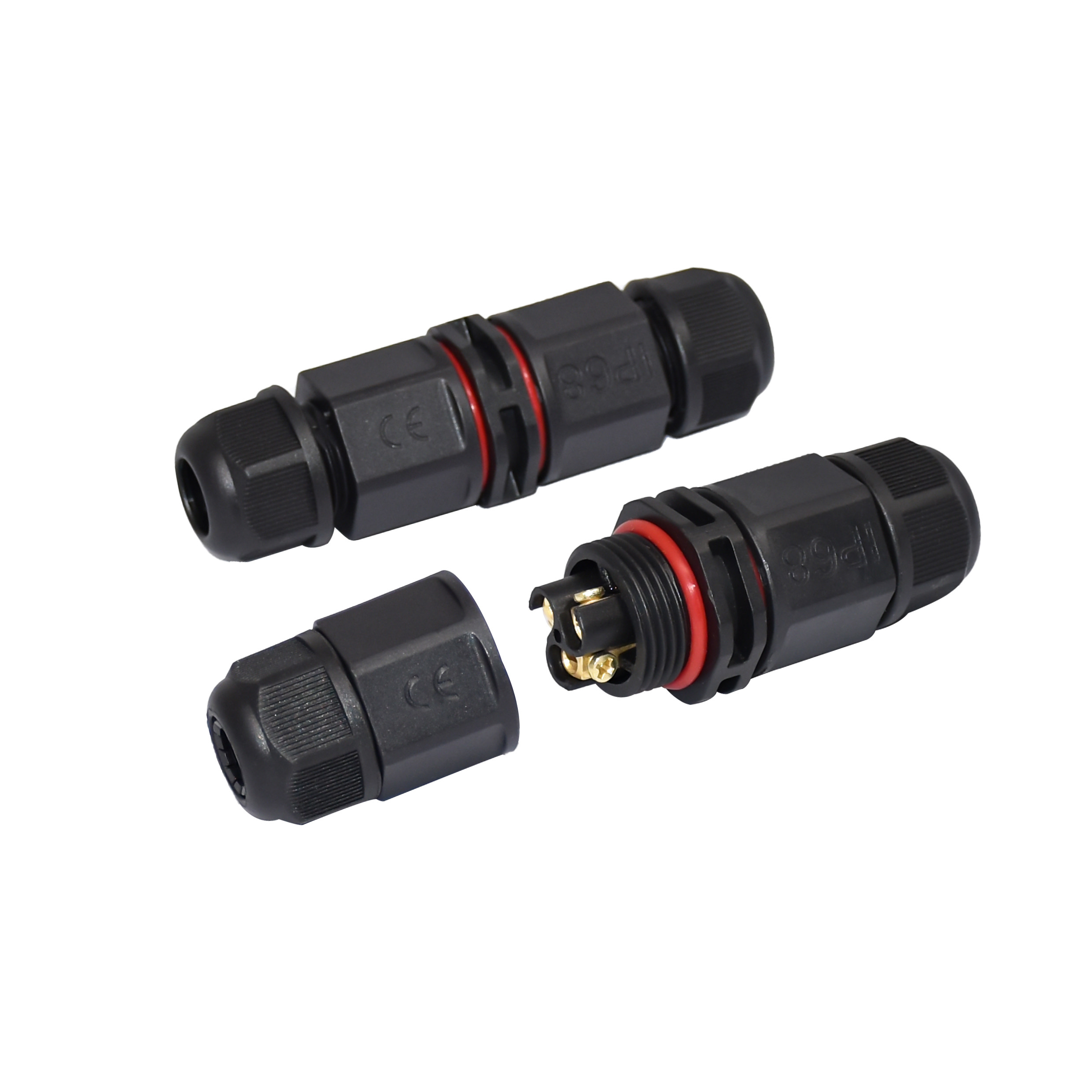

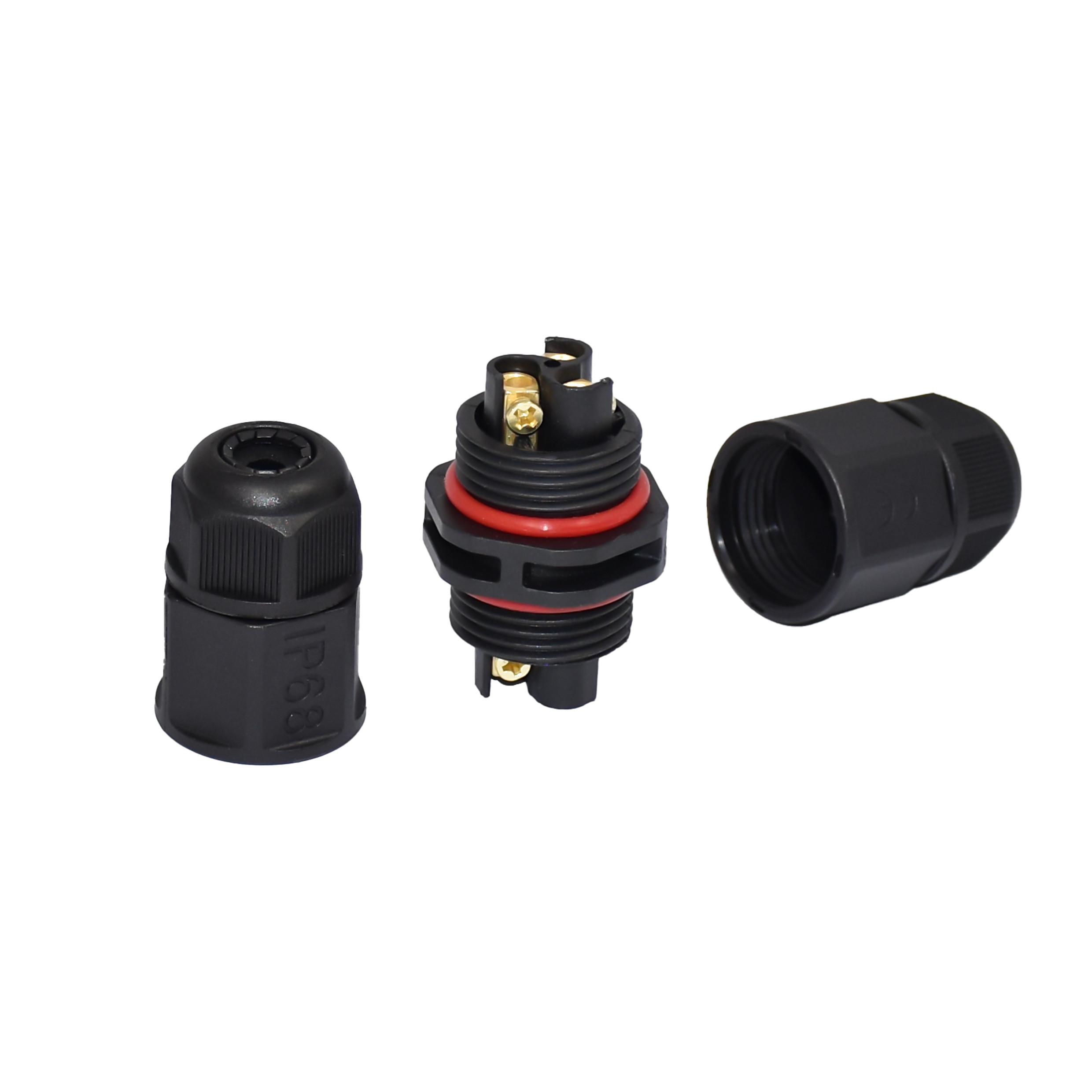

M20 IP68 assembly screwed straight waterproof connector Lighting
project 3 Ways 20A
| Connecting mode | screw fixing and screw locking |
| Protection level | IP68 |
| Cable specification | Max 12AWG |
| diameter diameter/number | Φ2.4 |
| Current rating(A) | 20A |
| Operating voltage(AC.V.rms) | 300V |
| Withstand voltage(AC.V)1min | 1500V |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | screw |
| Prevent the combustion level | UL94-V0 |
FAQ
1. What is the packing ?
A: Well , we pack it in neutral brown cartons. Also your packing
requirement is considered.
2.What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
3.How about your delivery time?
A: Generally,Sample is 1-3 days,it will take 5 to 10 working days
after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order.
4.Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can
build the molds and fixtures.
5.Do you provide samples?is it free or extra?
A: Yes,we could offer the sample for free charge but do not pay the
cost of freight..
6.Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the
project.And I am sure you will be confident in us after you visit
our factory.
7.How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
Quality statement:
● Screws/nuts materials: brass with nickel plating, CNC parts
● Male contacts materials: brass with gold plating, machined solid
pin
● Female contacts materials: phosphor bronze with gold plating,
machined solid pin
● Protection degrees: IP67/IP68 in locked status
● RoHS Directive-compliant
