M23 Connector Male 12pins Assembly To Female Falnge 12pins Panel
Mount Connector
Production
M23 connectors and receptacles for signal and power applications
meet stringent requirements for reliability and performance in the
harshest of industrial environments.
Designed to accommodate a broad range of cable outer diameters and
receptacles.
Inserts are available with solder or crimp contacts.
General Details
Contacts: 12pins
Gender: female to male
Coupling: Threaded coupling
Termination: solder
Mating cycle:500times
Cable temperature: -25℃~+85℃
Cable diameter:≤Φ6mm~≤Φ8.5mm
Solder inter diameter:1mm~2.5mm
Insulation resistance DC50±10%
Contact resistance(mΩ): 10mΩ at 10mA Max
Material
Material of contact: Brass, gold plated
Contact plating:Au(Gold)
Material of contact body:PA
Connector locking system:Screw
Material of housing:CuZn(Brass nickel plated)
| Connector type | M23 panel to assembly connector |
| Connector Gender | male to female |
| Contacts | 12pins |
| Connector locking system | solder |
| Rated current | 20A |
| Rated Voltage | 300v |
Number of Contacts

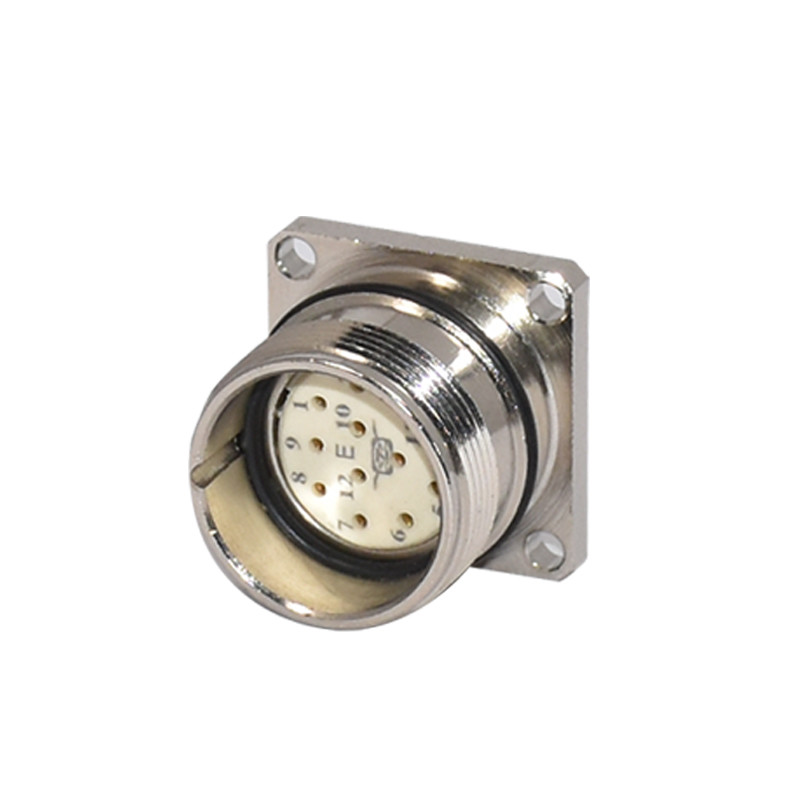

Product photos
Application
Active and passive I/O boxes /Drives / Encoders
Harsh commercial applications / Resolvers / Safety applications
This is not a definitive list of applications for this product. It
represents some of the more common uses.
