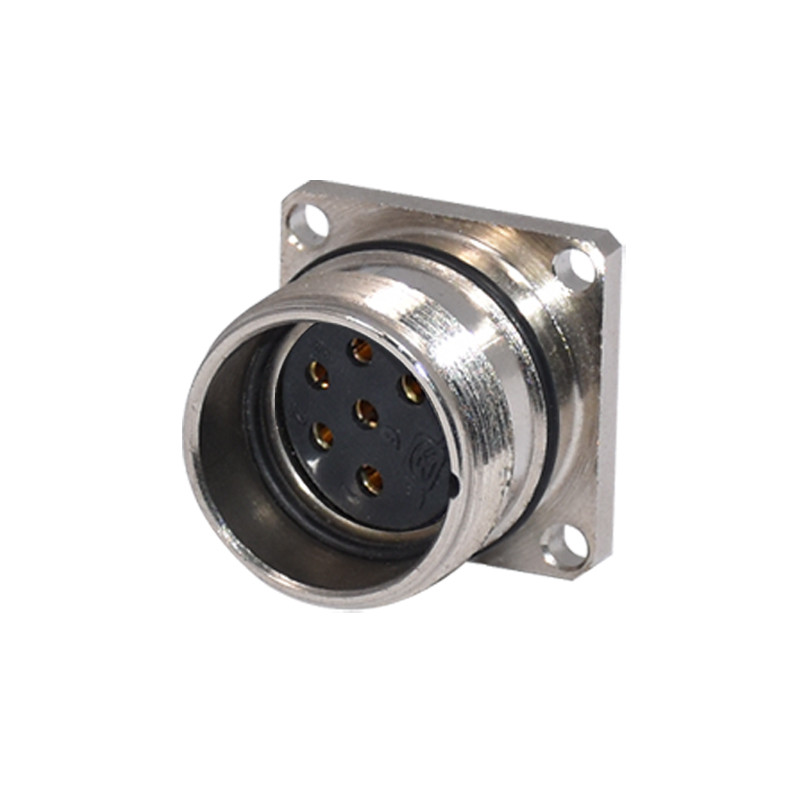

M23 Connector Power Male Straight Metal Plug To Female 7pins Panel Mount Connector

Product description

• Simple and quick modular structure
• One step cable assembly with optional EMI shielding
• No tools required to insert and extract contacts
• Crimp contacts machined
• Patented Euro-Lock
• SLS (Spring Loaded Sockets) for vibrating environments

General Details

Contacts: 6.7.9.12.17.19pins

Gender: Male and Female

Coupling: Threaded coupling

Termination: Solder

Mating cycle:500times

Cable temperature: -25℃~+85℃

Cable diameter:≤Φ6mm~≤Φ8.5mm

Rated current:8A~20A

Rated voltage:150V~300V

Solder inter diameter:1mm~2.5mm

Insulation resistance DC50±10%

Contact resistance(mΩ): 10mΩ at 10mA Max

Material

Material of contact: Brass, gold plated

Contact plating:Au(Gold)

Material of contact body:PA

Connector locking system:Screw

Material of housing:CuZn(Brass nickel plated)

Number of Contacts

Product photos

FAQ

A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.
Q2:How about your quality?

Company Profile：

Factory profile：

Shenzhen Rigoal Connnector Co.,Ltd. was established in 2013 years and is located in Shenzhen, China,enjoying convenient transportation and beautiful environment. Our company covers an area of 3500 square meters and has 160 employees at present. Company has obtained ISO9001 2015 certification.

We are specialized in waterproof connector and cable.Rigoal company focus on ODM and OEM connector and cable. Our company has rich experience in the senor , power and Ethernet industry. Our main products include M5 M8 M9 M10 M12 M16 M18 M20 M23 M40 RD24 RD30 mini7/8 etc circular waterproof connector and cable. push-pull connectors ,Solenoid value connector, RJ45 USB D-SUB waterproof connector and LED area power waterproof connector and cable .Plastic T or Y type connector and cables .Most of our products have got UL CE Rohs IP68 etc certificates.Besides, we are making great efforts to develop new products to meet different requirements. Welcome your custom-made.

Our products mainly clients in Europe ,USA, Australian,Korea etc. We also welcome all over the world orders.Our company has 30 equipment to strictly control the product quality.Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
