M23 High Power Waterproof Shielded Square Panel Mount 12pins Feale
Plus Connector
Product description
♦ M23 connectors are globally recognized as the “go to” servo motion
grade connectors for interconnecting servo motors to servo drives
in servo motion control applications.
♦ Designed to accommodate a broad range of cable outer diameters and
receptacles, M23 connectors guarantee high flexibility in front-
and back-mounting applications.
General Details
Contacts: 12pins
Gender: female
Coupling: Threaded coupling
Termination: solder
Mating cycle:500times
Cable diameter:≤Φ6mm~≤Φ8.5mm
Solder inter diameter:1mm~2.5mm
Insulation resistance DC50±10%
Contact resistance(mΩ): 10mΩ at 10mA Max
Material
Material of contact: Brass, gold plated
Contact plating:Au(Gold)
Material of contact body: PA
Connector locking system:Screw
Material of housing:CuZn(Brass nickel plated)
| Connector type | M23 falnge panel mount |
| Connector Gender | female |
| Contacts | 12pins |
| Connector locking system | solder |
| Rated current | 20A |
| Rated Voltage | 300v |
Number of Contacts

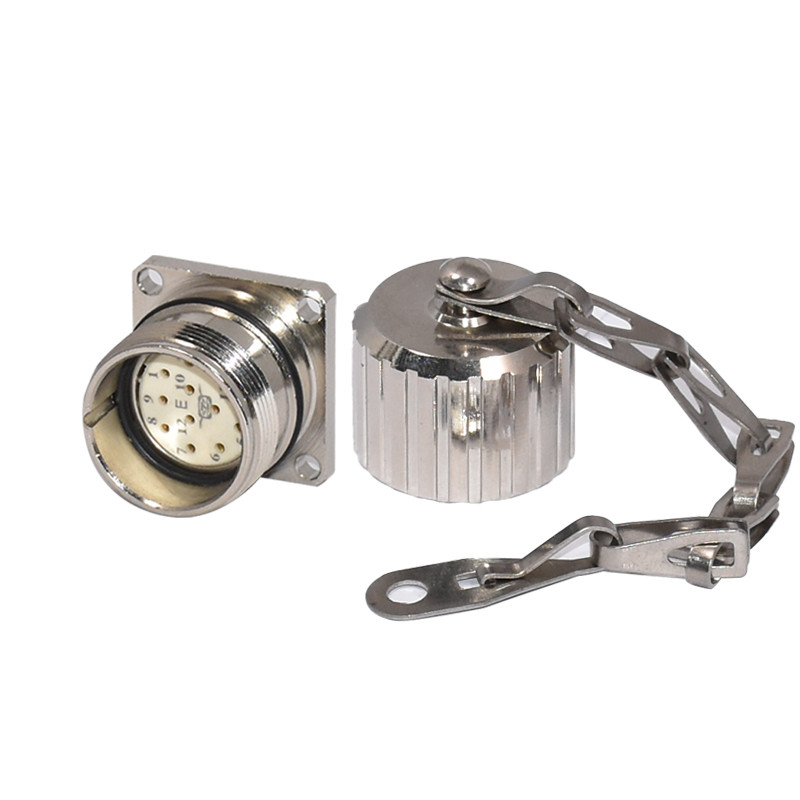

Product photos
