Waterproof Metal IP68 M16 8pins Male Assembly Circular Connector With Shielded

Product description

M16 Circular DIN Connectors are an ideal solution for ensuring that power and signal connections.

These connectors feature screw locking, IP67 degree of protection, robust metal connector, and excellent EMI shielding.

These connectors are ideal for harsh environments and industrial applications.

• Screw locking compliant with DIN EN 61076-2-106
• IP67 degree of protection
• Robust metal connector
• Excellent EMI shielding
• Pole variants from 3 to 12

Quick Details

Contacts: 8pins

Coupling: Threaded coupling

Termination: Solder

Mating cycle:500times

Cable temperature: -40℃~+85℃

Cable diameter:4–6 mm (PG 7)/6–8 mm (PG 9)

Rated current:5A

Rated voltage:60 V (32 V)

Wire gauge:max. 0,75 mm2 (max. AWG 20)

Insulation resistance(mΩ) at DC500V: 1000~1500

Contact resistance(mΩ) :≤ 5 mΩ/≤ 3 mΩ

Solder up mouth aperture(mm):0.6mm~1mm

Withstanding voltage:500V~1500V

Material group:lll

Overvoltage categorie:l (II) 2

Rated impulse voltage:500V

Material

Material of housing:CuZn (brass, nickel plated)

Material of contact body:PBT (UL 94 V-0)

Contact plating:Ag Au (Gold/gold)

Material ot contact:CuZn

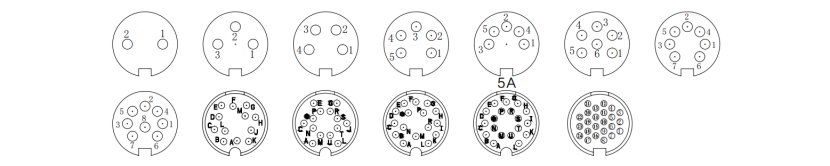

Number of contacts

Product Photos

Packaging & Shipping

Usually PE bags and cartons

approval customized based on customers' requirements

MOQ: 100pcs each item

Delivery time: 5-7days after the payment received

Shipment: by Express,by Air, by Sea

Payment terms: 100% TT in Advance

Payment method: T/T, Western Union, Paypal

Company Profile：

Factory profile：

Shenzhen Rigoal Connnector Co.,Ltd. was established in 2013 years and is located in Shenzhen, China,enjoying convenient transportation and beautiful environment. Our company covers an area of 3500 square meters and has 160 employees at present. Company has obtained ISO9001 2015 certification.

We are specialized in waterproof connector and cable.Rigoal company focus on ODM and OEM connector and cable. Our company has rich experience in the senor , power and Ethernet industry. Our main products include M5 M8 M9 M10 M12 M16 M18 M20 M23 M40 RD24 RD30 mini7/8 etc circular waterproof connector and cable. push-pull connectors ,Solenoid value connector, RJ45 USB D-SUB waterproof connector and LED area power waterproof connector and cable .Plastic T or Y type connector and cables .Most of our products have got UL CE Rohs IP68 etc certificates.Besides, we are making great efforts to develop new products to meet different requirements. Welcome your custom-made.

Our products mainly clients in Europe ,USA, Australian,Korea etc. We also welcome all over the world orders.Our company has 30 equipment to strictly control the product quality.Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
