M16 Circular Connector IP67 Rear Panel Mount Connector 8pins male
Waterproof socket
Product details
Panel mount, assembly connector are avaliable, also can customized
based on customer's requirements.
M16 Front Screw Back Panel Mount Socket Connector, waterproof is
IP67
Special feature and service can be provided upon requirement.
it is usually widely used on all kinds of outdoor applications,
specially for the signal transmission, Medical Equipment,Audio /
Video, Test and Measurement, Communications product line.
We guaranteed that 100% in good quality, the price will be reasonal
Connect to minimize induced signal noise.
M16 Circular Metric Connectors are available at Mouser Electronics.
| Model Number | M16 | Housing Material | copper alloy |
| Item | circular outdoor connectors | Plating | nickel |
| Life cycles | 5000 mating | Temprature | -55°C to+200°C |
| Contacts | 2/3/4/5/6/8pin | ip Ranking | IP67-IP69 |
Material details
Gender: male
Wire gauge: max. 0,75 mm2
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Pollution degree: 1(2)²
Overvoltage categorie: l(II)²
Material group: lll
Upper temperature: + 85 °C
Lower temperature: – 40 °C
| Gender | male |
| Cable outlet | 4–6 mm (PG 7)/6–8 mm (PG 9) |
| Contacts of number | 8 pins |
| Rated voltage | 60 V (32 V) |
| Rated impulse voltage | 500 V |
| Rated current | 5A |
| Contact resistance | ≤ 5 ohm/≤ 3 ohm |
| Contact plating | Ag Au (Gold/gold) |

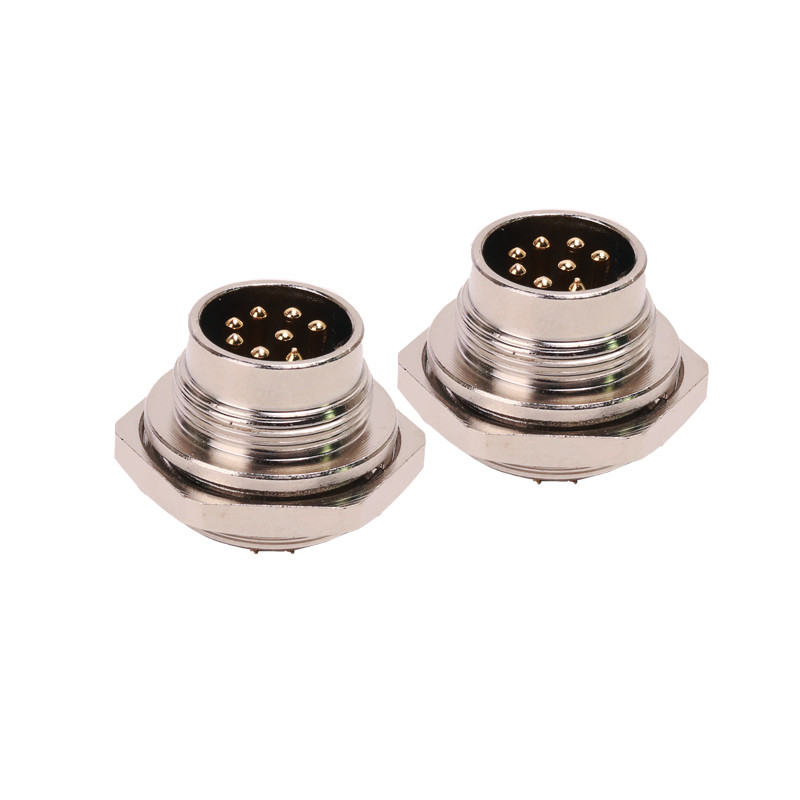

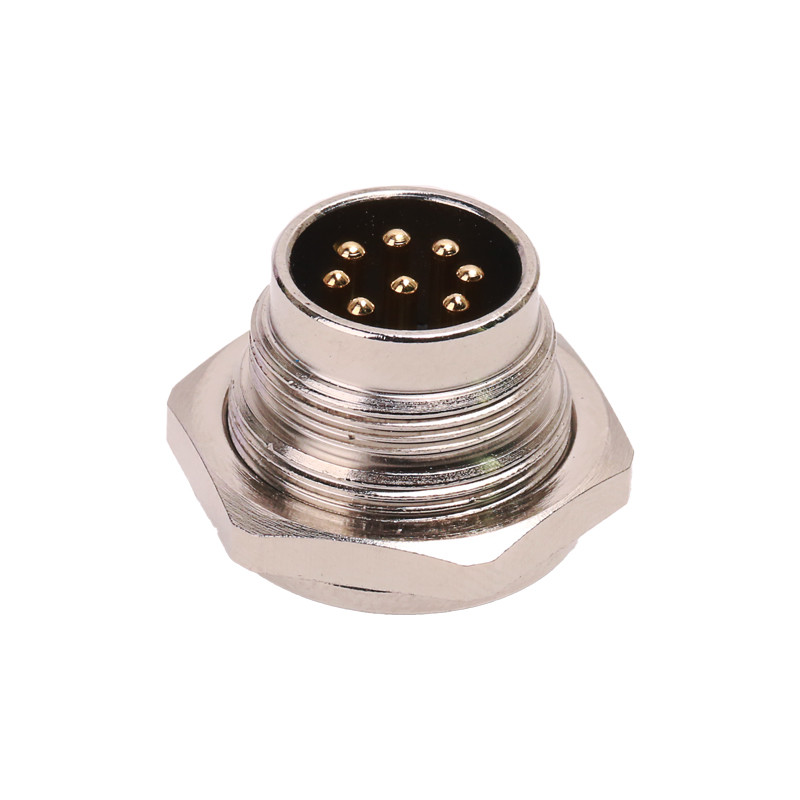

Product Photos
FAQ
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q5: What’s the connector made of?
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Q6: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q7: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
