7/8'' Mini-Change 5pins Front Panel Mount Female Connector Solder
Contacts
Product Description

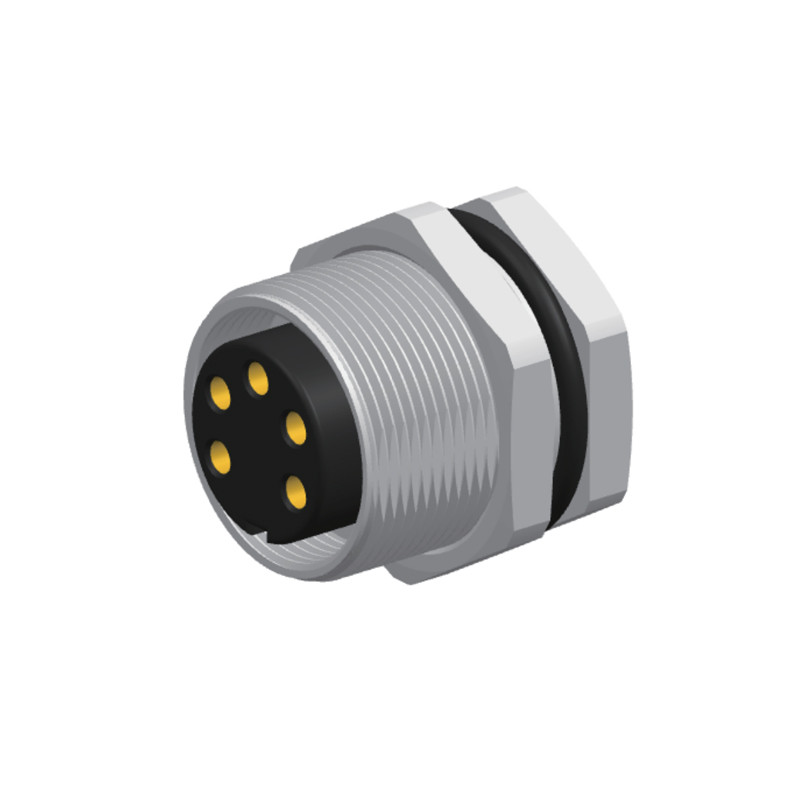

Mini-change7/8'' panel mount connector
Electrical Data
Shell material: PBT(UL 94 V-0)
Matreial of contact body: PUR/PA(UL 94 HB)
Wire gauge: max.1.5mm(max.awg16)
Contact material: CuZn(brass)
Termination: threaded
Rated current: 9A
Temperature range:-40°C~+85°C
Rated voltage: 250v
Rated impluse voltage : 4000v
Overvoltage categorie: three
Cable outlet: 6-8mm,10-12mm, 12-14mm,14-18mm
| General Characteristics |
| Number of contact | 3 | 4 | 5 |
| Locking system | screw 7/8''-16UNF |
| Termination | solder, moulded on cable, screw clamp |
| Wire guage in mm² | max.1.5 |
| Wire guage in AWG | max.16 |
| Shell protection | IP67/IP68 |
| Mechanical operation | >500 mating cycles |
| Upper temperature | +85℃ |
| Lower temperature | -25℃ |
| Electrical Characteristics |
| Rated voltage | 300V |
| Pollution degree | | III | |
| Rated current(40℃) | 12A | 9A |
| Contact resistance | ≤10mΩ |
| insulation resistance | ≥100MΩ |
| Materials |
| Pin contact | CuZn |
| Socket contact | CuSn |
| Contact plating | Au |
| Upper temperature | PA66(UL 94V-0) |
| Female insent | PA66(UL 94V-0) |
| Material of cable jacket | PVC or PUR |
| Screw | CuZn |
| Nut | CuZn |
