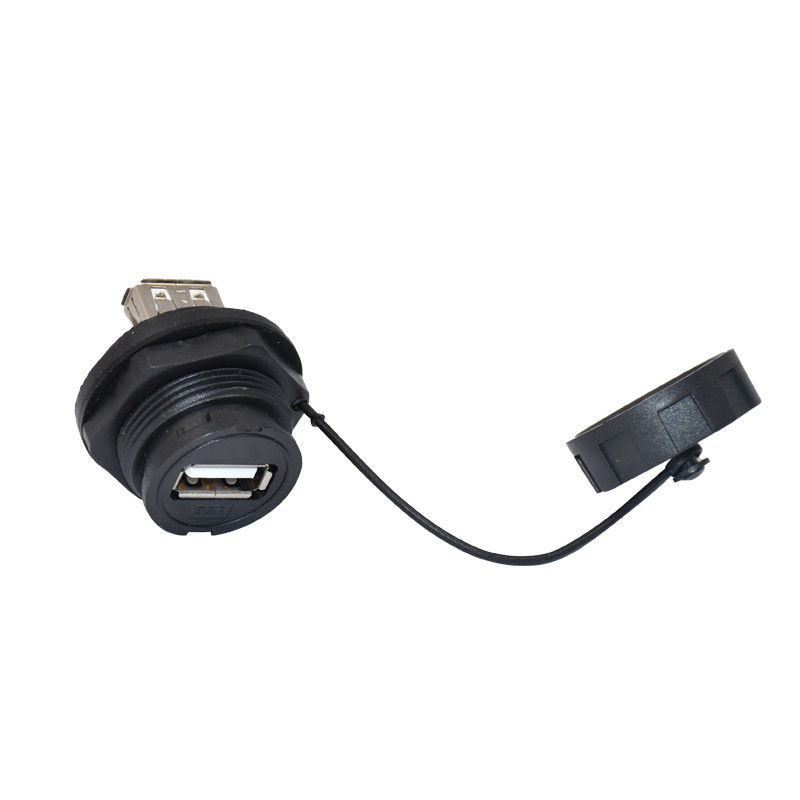

IP67 Waterproof Industrial Connector USB 2.0 To Female Panel Mount
Plug With Cover
Product introduction
● 2.0 is an external interface used on computers and other digital
devices to transfer data through a cable.
● Achieve double-headed male to female adapter, snap locking,
ensure safe and stable
● Cable can be customized
● Compatible with USB2.0, protection level IP67
● Sheath of cable protect cable outlet well
● Solid connections system can provide the solutions for data
transmission in harsh environments
● The designation “2.0” refers to the standard or version of the
interface and it was released in 2000, which is also referred to as
Hi-Speed USB
● The maximum transfer speed of USB 2.0 device is up to 480 Mbps.
● The USB 2.0 Connectors is colored white or black.
● USB 2.0 has a total of 4 connector wires, supporting half-duplex
communication.
Material
Housing the insulating parts: High-performance engineering plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper Shell
Waterproof circle: Silica gel
Connecting mode: Quickly bayonet connect
| USB2.0 | 4pins |
| Contact resistance | <30mΩ |
| Withstanding Voltage (AC.V) 1 minute | 1000V |
| Insulation resistance | ＞500MΩ |
| Protection level | IP67 |
| Durability | ＞500times |
| Working temperature | ‘-40℃～80℃ |
| Cable specification | 0.15m㎡～0.2m㎡/26-24 AWG |
| Diameter range | Φ5.5mm～Φ7mm |
Product photos
Application
USB3.0 CABLE wire harness for Communication equipment
Product feature
1. High Quality,durable tpe+tpu material.
2 .For ios/android dual system,charging and stable data transfer
can be universal.
3. Plug and play compatible. support Hi-Speed USB Charging & Data Sync Cable.
4. Dual Port USB Cable,lightweight,compact design,portable.
