Panel Mount USB Connector 1.5A Plastic Plug Connector

General Details

Cable specification:0.15m㎡～0.2m㎡/26-24 AWG

Diameter range:Φ5.5mm～Φ7mm

Contact diameter × number: 9

Rated Current (A):1.5A

Contact resistance:<30mΩ

Withstanding Voltage (AC.V) 1 minute: 1000V

Insulation resistance:＞500MΩ

Protection level:IP67

Durability:＞500

Working temperature:-40℃～80℃

Connecting mode:Quickly bayonet connect

Material

Housing, the insulating parts: High-performance engineering plastics

Hardware: Zinc Alloy (pearl hard chrome)

Copper needles: Copper Shell

Waterproof circle: Silica gel

Flammability rating:UL94-V0

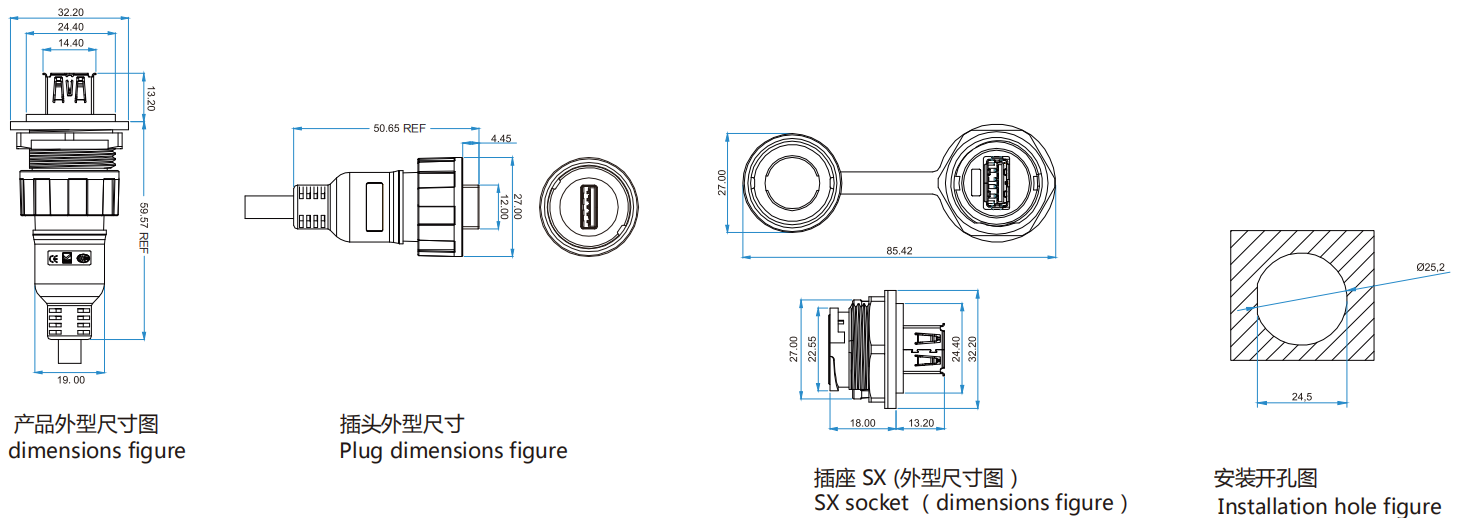

Product Drawing

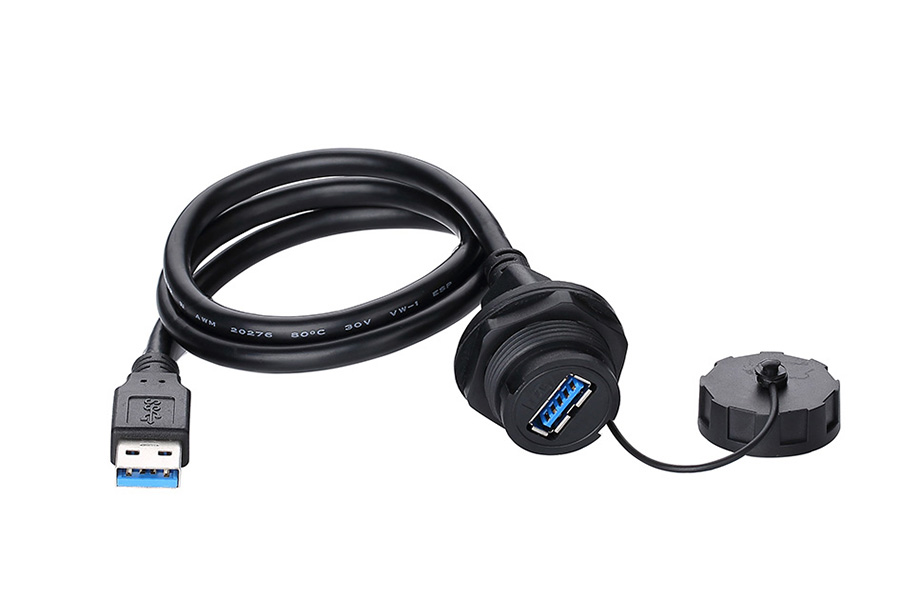

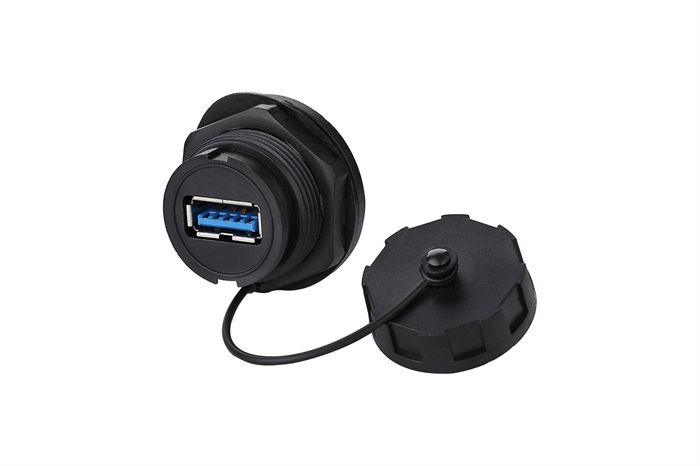

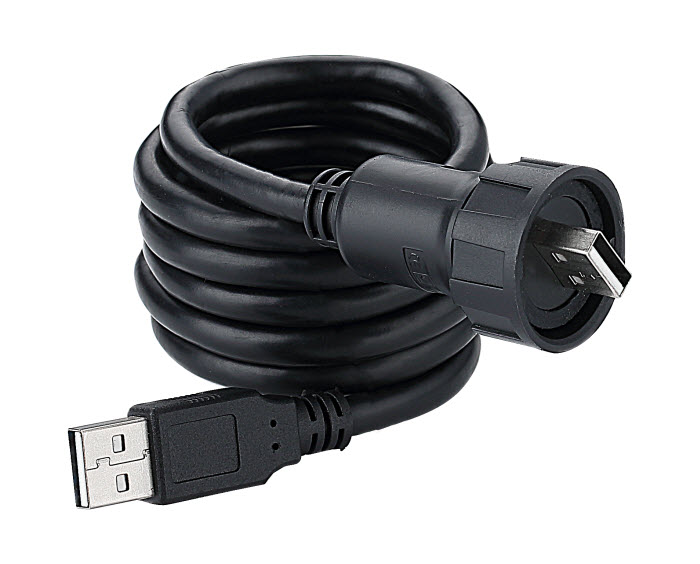

Product Photos

Packaging & Shipping

Approval customized based on customers' requirements

MOQ: 100pcs each item

Delivery time: 5-7days after the payment received

Shipment: by Express,by Air, by Sea

Payment terms: 100% TT in Advance

Payment method: T/T, Western Union, Paypal

USB waterproof connector

USB plugs and sockets are applicable to data transmission with quickly plug,fast transfer rate and strongly extensibility.

They are widely used in computers,digital cameras,scanner and other transmission equipment,Varies types,can achieve male and female conversion docking,independent female,male with cable and so on...Wildly used for comuper and other data equioment.
