Industrial Ethernet IP67 USB 2.0 Male Connector With Cable For
Communication Equipment
Product introduction
●Independent USB2.0 socket design, easy to install and operate
●Achieve double-headed male to female adapter, snap locking, ensure
safe and stable
●Cable can be customized
●Compatible with USB2.0, protection level IP67
●Sheath of cable protect cable outlet well
●Solid connections system can provide the solutions for data
transmission in harsh environments
Material
Housing, the insulating parts: High-performance engineering
plastics
Hardware: Zinc Alloy (pearl hard chrome)
Copper needles: Copper Shell
Waterproof circle: Silica gel
Connecting mode: Quickly bayonet connect
| USB 2.0 | 4pins |
| Contact resistance | <30mΩ |
| Withstanding Voltage (AC.V) 1 minute | 1000V |
| Insulation resistance | ＞500MΩ |
| Protection level | IP67 |
| Durability | ＞500times |
| Working temperature | ‘-40℃～80℃ |
| Cable specification | 0.15m㎡～0.2m㎡/26-24 AWG |
| Diameter range | Φ5.5mm～Φ7mm |

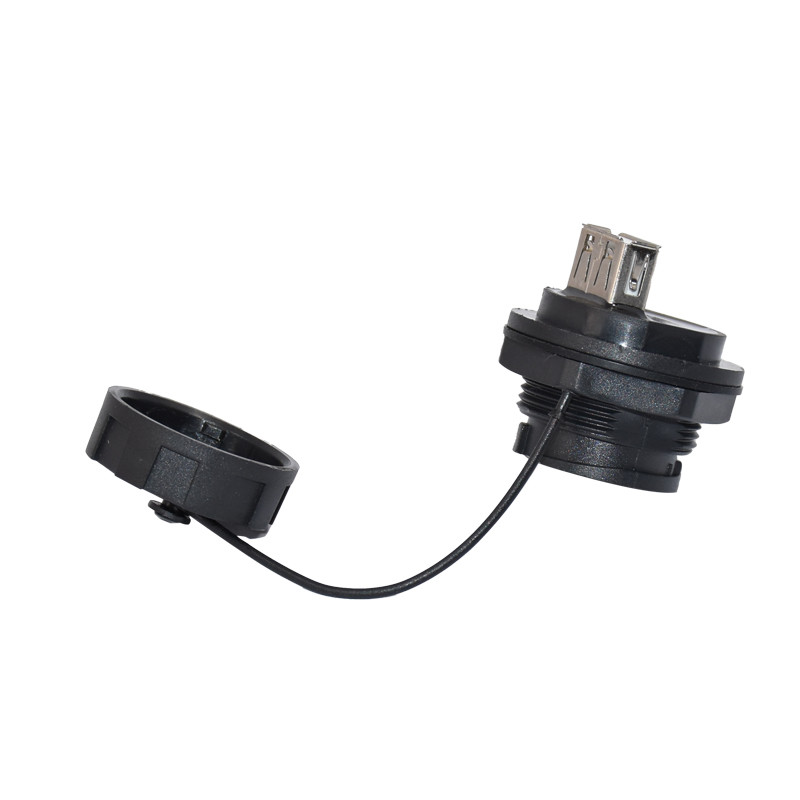

Product photos
Application
USB3.0 CABLE wire harness for Communication equipment
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4: What’s the connector made of?
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Q5: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q6: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q7: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
