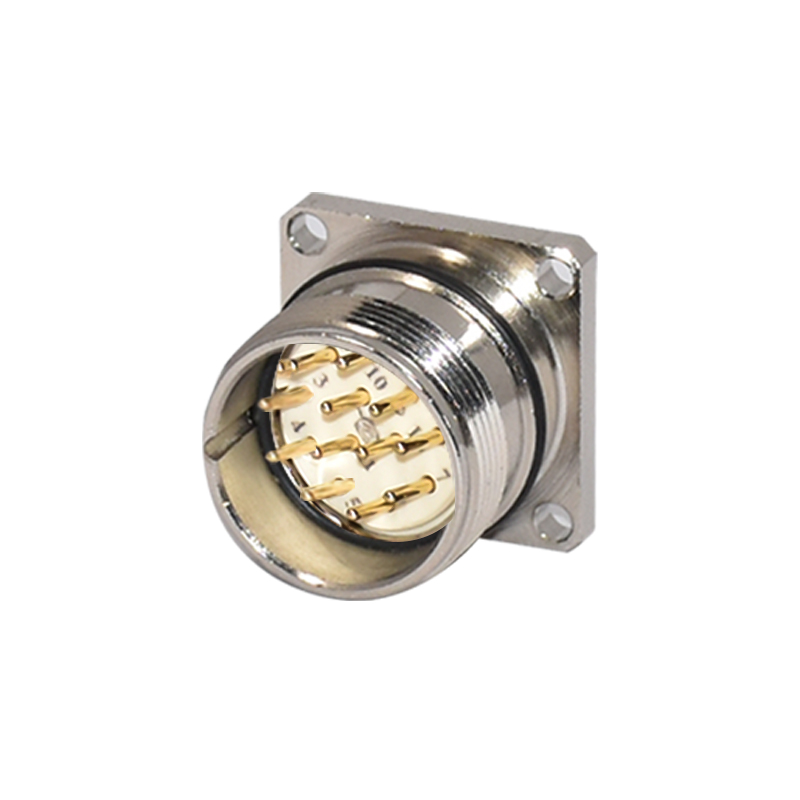

M23 Connector 12pins High Power Male Flange Square Panel Mount
Connector With Shielded
Product decription
1. M23 Female contacts with integrated springs assure exceptional
electrical performance with ultimate contact reliability in both
signal and power product ranges.
2. Applying the same modular design as the signal connectors, both
pole counts can be used in straight and right-angled versions that
are easy to assemble and disassemble
3. M23 connectors guarantee high flexibility in front- and
back-mounting applications.
General Details
Contacts: 6 7 9 12 17 19pins
Gender: female
Coupling: Threaded coupling
Termination: solder
Mating cycle:500times
Cable temperature: -25℃~+85℃
Cable diameter:≤Φ6mm~≤Φ8.5mm
Solder inter diameter:1mm~2.5mm
Insulation resistance DC50±10%
Contact resistance(mΩ): 10mΩ at 10mA Max
Material
Material of contact: Brass, gold plated
Contact plating:Au(Gold)
Material of contact body:PA
Connector locking system:Screw
Material of housing:CuZn(Brass nickel plated)
| Connector type | M23 series |
| Connector Gender | male |
| Contacts | 12pins |
| Connector locking system | solder |
| Rated current | 20A |
| Rated Voltage | 300v |
