Rigoal M5 4 Pin Connector

Ask Lasest Price
Brand Name :	Rigoal
Model Number :	M5
Certification :	CE , RoHS
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	10-15 working days

Add to Cart

Product Details
Company Profile

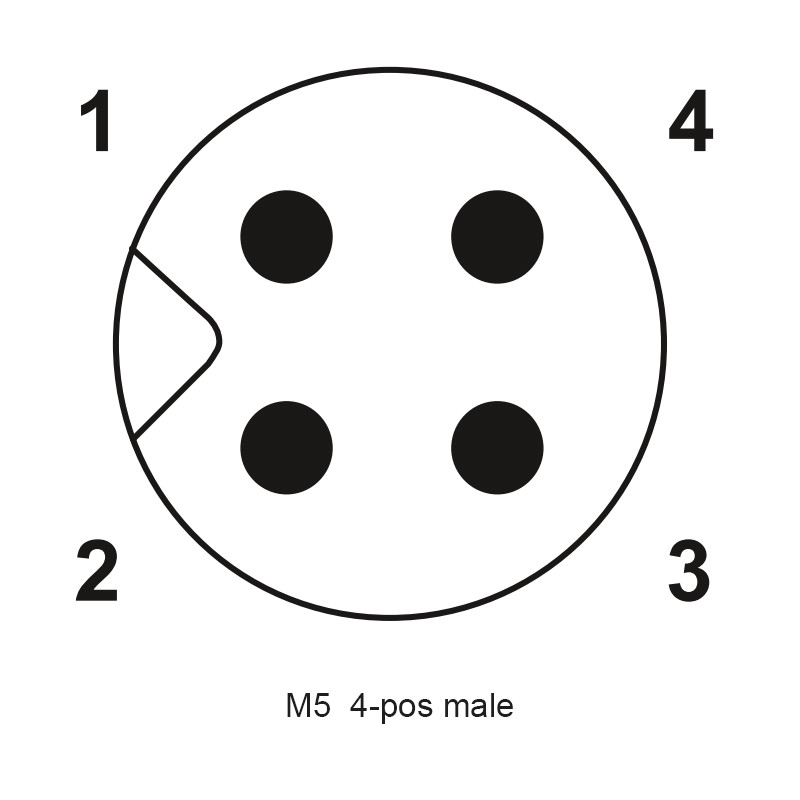

Rigoal M5 4 Pin Connector

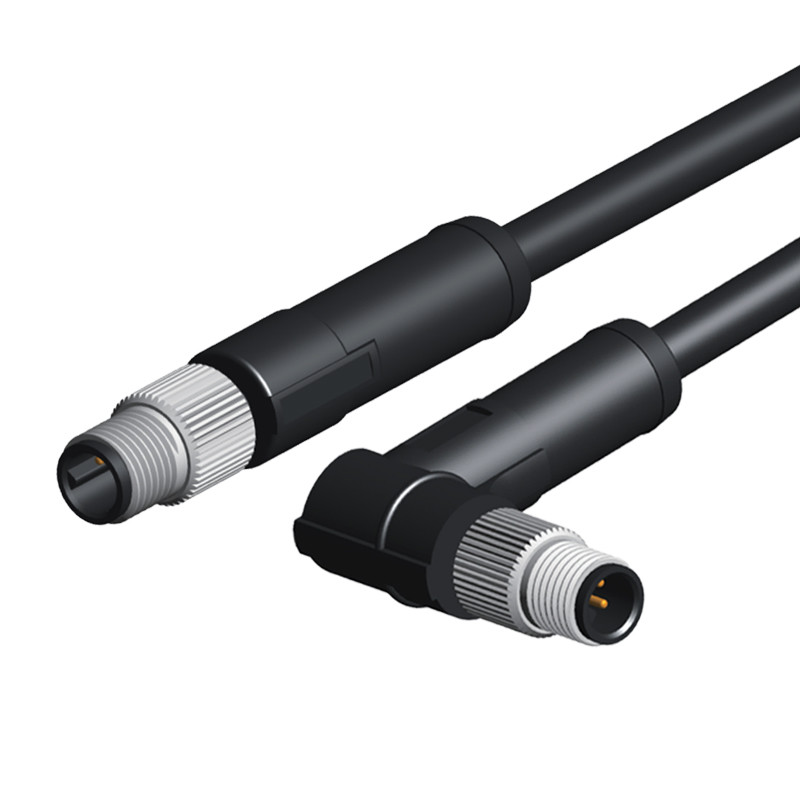

M5 Male Right Angle And Straight Molding Connector With Cable For Automation Sensor

Quick details
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C

Insert: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw: Brass with nickel plated
Connector locking system: Screw locking
Mechanical operation: >100 mating cycles

Rated current: 1A
Rated voltag: 60V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ

Electrical Characteristics

Locking system	screw M5*0.5
Termination	solder, moulded on cable
Wire guage in mm²	max 0.14
Wire guage in AWG	max 26
Shell protection	IP67/IP68
Mechanical operation	>500 mating cycles
Upper temperature	+85℃
Lower temperature	-25℃
Electrical Characteristics
Rated voltage	60V
Pollution degree	III
Test voltage	500V±15V
Rated current(40℃)	1A
Contact resistance	≤10mΩ
insulation resistance	≥100MΩ

Material

Pin contact	CuZn
Socket contact	CuSn
Contact plating	Au
Upper temperature	PA66(UL 94V-0)
Female insent	PA66(UL 94V-0)
Material of cable jacket	PVC or PUR
Screw	CuZn
Nut	CuZn

Rigoal M5 4 Pin Connector .

Product photos

Our service
1) Low cost but good quality in ip67 waterproof in locked condition with ISO9001 management under efficient service
2) Provide free samples within 3 working days if it is normal product with existing tooling
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management
6) 7 years quality assurance.
