60V 1A Automation Connector M5 Male Rear Panel Mount Connector With Cable

Ask Lasest Price
Brand Name :	Rigoal
Model Number :	M5
Certification :	CE,Rohs
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100000pcs per month
Delivery Time :	10-15 working days

Add to Cart

Product Details
Company Profile

60V 1A Automation Connector M5 Male Rear Panel Mount Connector With Cable

M5 Male Rear Panel Mount Connector With Cable Waterproof Automation Connector.

Quick details
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C

Insert: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw: Brass with nickel plated
Connector locking system: Screw locking
Mechanical operation: >100 mating cycles

Rated current: 1A
Rated voltag: 60V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ

Electrical Characteristics

Locking system	screw M5*0.5
Termination	solder, moulded on cable
Wire guage in mm²	max 0.14
Wire guage in AWG	max 26
Shell protection	IP67/IP68
Mechanical operation	>500 mating cycles
Upper temperature	+85℃
Lower temperature	-25℃
Electrical Characteristics
Rated voltage	60V
Pollution degree	III
Test voltage	500V±15V
Rated current(40℃)	1A
Contact resistance	≤10mΩ
insulation resistance	≥100MΩ

Materials
Pin contact	CuZn
Socket contact	CuSn
Contact plating	Au
Upper temperature	PA66(UL 94V-0)
Female insent	PA66(UL 94V-0)
Material of cable jacket	PVC or PUR
Screw	CuZn
Nut	CuZn

Product photos

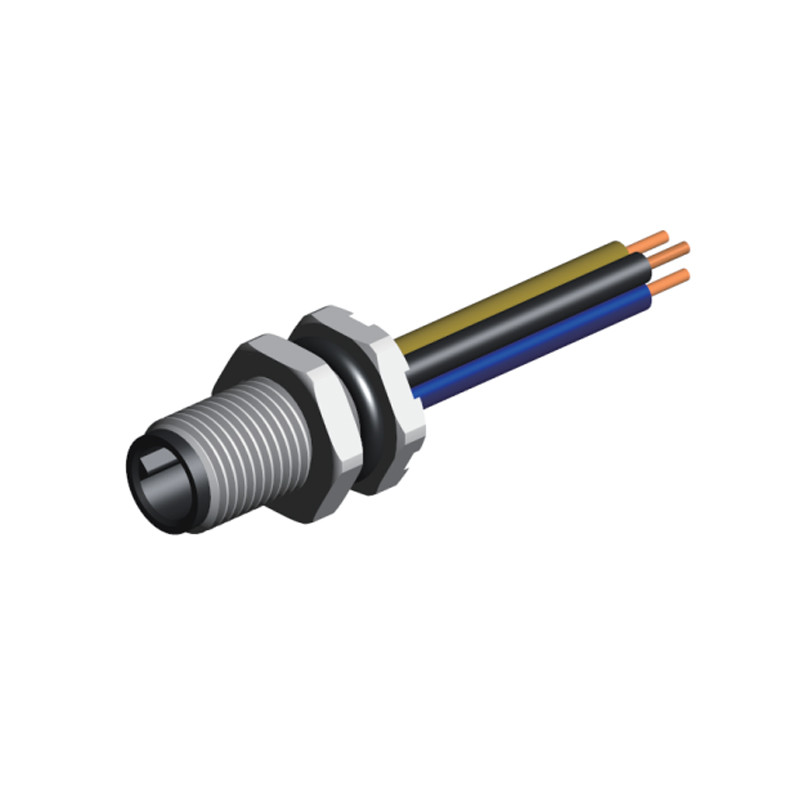

60V 1A Automation Connector M5 Male Rear Panel Mount Connector With Cable

Our service
1) Low cost but good quality in ip67 waterproof in locked condition with ISO9001 management under efficient service
2) Provide free samples within 3 working days if it is normal product with existing tooling
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management
6) 7 years quality assurance.
