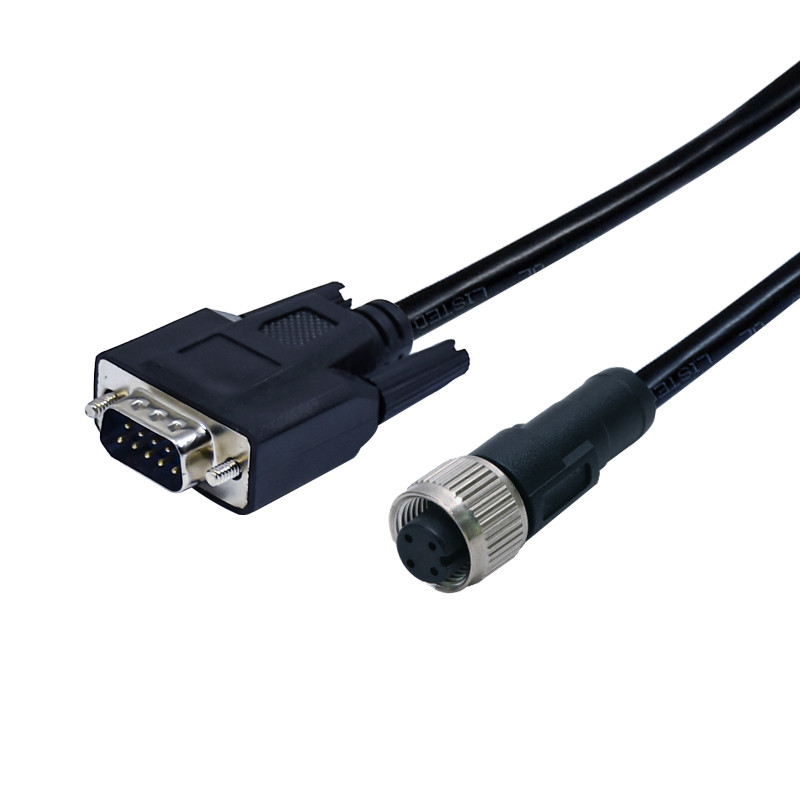

M12 A Code Female 4pins Assembly Molded Connector Cable To D-Sub
Male 9pins Connector
Product Description
* M12 to D-sub Adapter for mating Panel Mount Recetacle, Field
Wireable Plug & Molding Cable High degree of protection IP67, safe
to use on sit
* Support samples, retail and bulk orders
* The M12 connector is a circular connector with a 12-mm locking
thread that is used primarily in factory automation applications
for actuators, sensors, industrial ethernet, and Fieldbus. M12
connectors are designed for washdown and corrosive environments.
They are available with 3, 4, 5, 8, and 12 pins.
* Solenoid (also known as Solenoid valve) refers to a variety of
transducer devices converting energy into linear motion
* DIN 43650 refers to the set of standards made by DIN (Deutsches
Institut fur Normung), which is the German standard setting
organization.
Electrical data
Gender: female to male
Type: m12 to D-sub connector
Rated voltage: 30 V
Terminal: Screw
Pollution degree: 3
Insulation resistance: ≥ 10 GΩ
Mechanical operation :>100 Mating cycles
Conductor structure:32x0.1mm
Material
Cable diameter: 5.0mm/4.5mm
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: TPU GF
Material of grip body: TPU, hardly inflammable, self-extinguishing
IP rating: IP67
Cable Jacket: PUR or PVC
| M12 Coding | A Code |
| Connection Type | m12 female to D-sub male |
| Number of Contacts | 9 pins and 4Pins |
| Gender | female to male |
| Orientation | straight |
| Rated Current | 3A |
| Rated Voltage | 30V |
| Temperature Range | -25~ + 80C |
| Contact resistance | <5m Q |

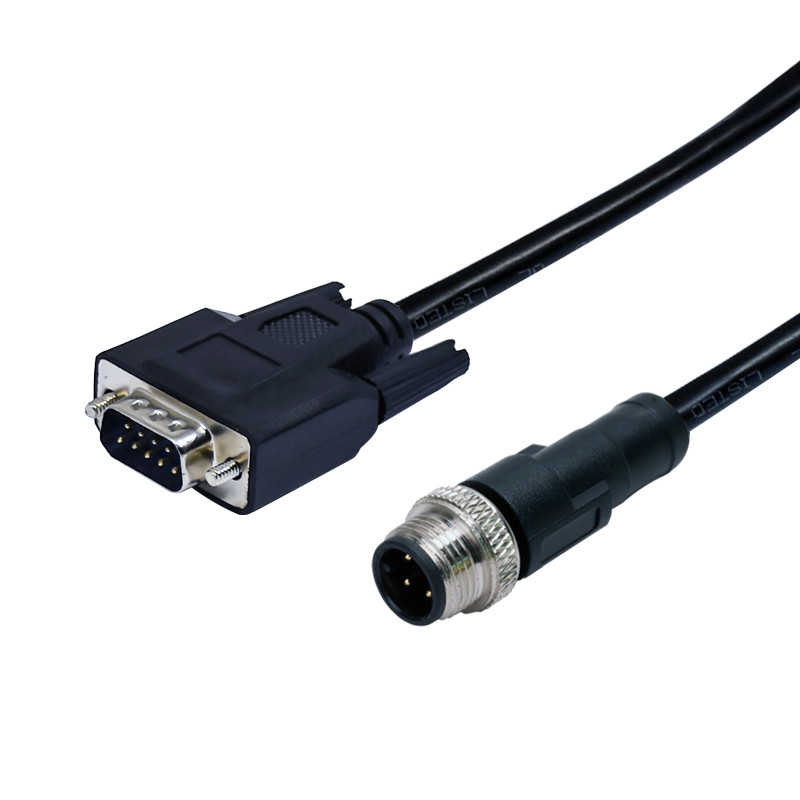

Product photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q5: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
Q6: How to contact us?
A: contact us with email/whatsapp/wechat
