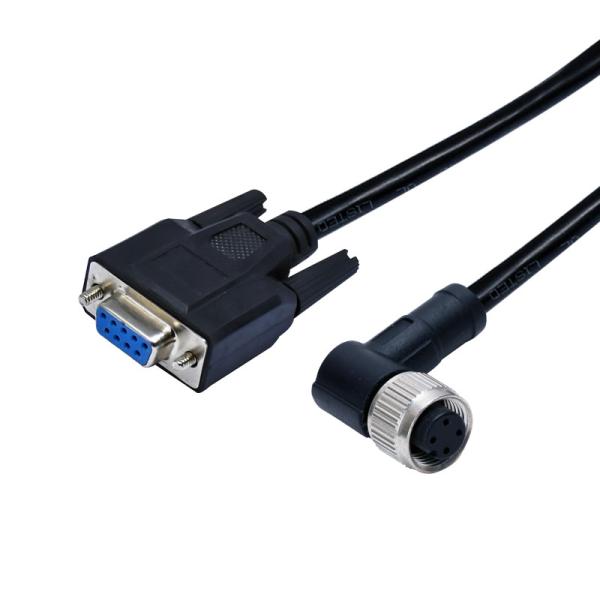

Waterproof M12 Female 4pins 90 degree A Code Molding To D-Sub 9
Pins Connector
Product Description
1. M12 to D-sub Adapter for mating Panel Mount Recetacle, Field
Wireable Plug & Molding Cable High degree of protection IP67, safe
to use on sit
2. Support samples, retail and bulk orders
3. The DB9-M12 adapter cable is suited for use in most maritime
vessels and in many industrial automation applications. The cable
lets you connect your CANedge/CLX000 CAN logger directly to the CAN
bus - providing access to the CAN bus, as well as providing input
power/ground for your CAN logger.
4. The terminal cable enables a local connection from an external
management station (PC with corresponding terminal emulation) to
the serial interface of a network device (Ethernet switch, wireless
access point or firewall).
5. DB9 to m12 cable China supplier,Cat 5 Cat 6,USB C Cable,DVI
Displayport DB9,Telephone Cord. Shipping. Service
6. The M12 is a reference to the thread type used in the connection
of this product.
Electrical data
Gender: female to female
Type: m12 to D-sub connector
Rated voltage: 30 V
Body shell:PA + GF Housing / Metal shell
Terminal: Screw joint
Pollution degree: 3
IP rating: IP67
Insulation resistance: ≥ 10 GΩ
Mechanical operation :> 100 Mating cycles
Conductor structure:32x0.1 mm
Material
Flammability rating according to UL 94: HB
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: TPU GF
Material of grip body: TPU, hardly inflammable, self-extinguishing
Material, knurls: Zinc die-cast, nickel-plated
Cable Jacket: PUR or PVC
| Serie | M12 to D-sub |
| Coding | A Code |
| Connection Type | m12 to D-sub |
| Number of Contacts | 4 pins |
| Gender | female to female |
| Orientation | 90 degree |
| Rated Current | 3A |
| Rated Voltage | 30V |
| Temperature Range | -25~ + 80C |
| Contact resistance | <5m Q |
Product photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q5: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
Q7: How to contact us?
A: contact us with email/whatsapp/wechat
