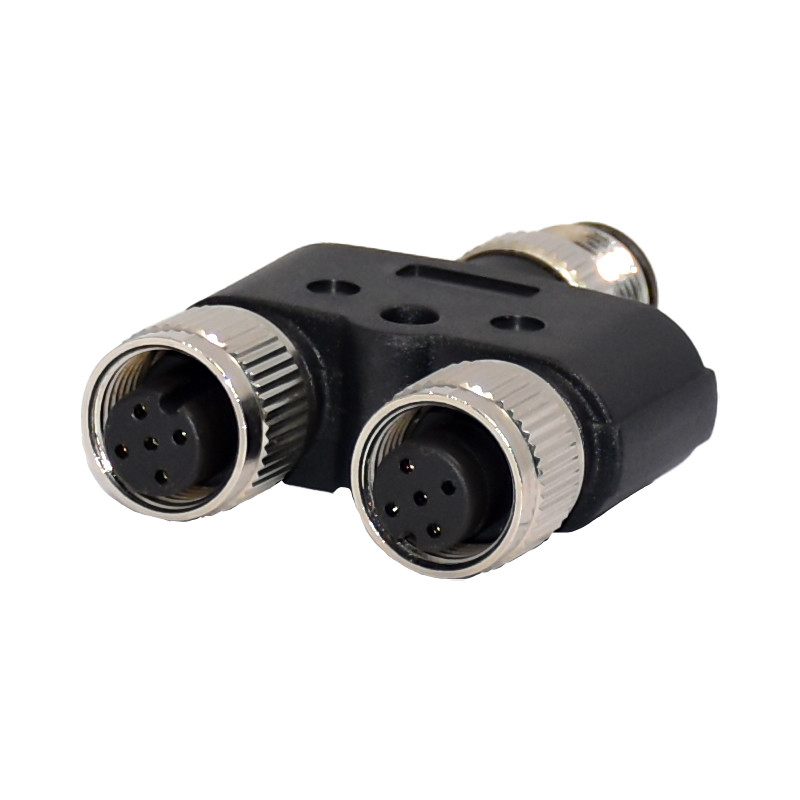

M12 Waterproof Connector A Coding 4pins 5pins Circular Female Y
Type Assembly Connector
Description
M12 Field wireable /installable connectors permit high flexibility
for wiring cables in the field. It enables quick assembly and
disassembly of differing cable lengths.
The wire connection normally use soldering termination, crimping
and screw termination.
M12 Y Splitter Connector, M12 T-Coupler Connector Riogal can offer
M12 Y splitter and T adapter connector solutions for Sensor system.
There are 3, 4 and 5 position M12 connectors available and with
male and female versions.
Quick details
Core type: A code
Contacts:3.4.5.8.12pins
Rated current: 4A
Rated AC/DC: 350V
Cable size: 0.34mm
Cable size AWG:22
Mating Cycle:500times
Temperature:-40°C~+80°C
Degree of protection: IP67/68
Material
Cable material: PUR/PVC
Shell material: copper/Zinc
Core material:PA
Insert/ Housing: TPU
Overmold material:PVC/TPU
Terminal material:Phosphor copper
Coupling nut/screw: Brass with nickel plated screw
Electrical Data
| Rated Current | 4A |
| Rated Voltage | 60V |
| Sealing | O-ring |
| Insolution resistance | ≧100mΩ |
| Contact resistance | ≦100mΩ |
| Cable diameter | ∅4~mm∅8mm |
| Shielding | Available |
| Gender | female |
Product photos
Applications
● Standard sensor, actuator, encoder, servo motors
● Factory automation and process control
● Industrial instrumentation
● Commercial electronics PCBA
● Industrial safety light curtain, light grid, switches
● Power supply
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
● LED display panel & outdoor LED lighting
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton
size:40*30*30cm
2.Customized according to customer's request
