Waterproof Plastic Connector Assembly Connector Female 5pins To
Male For Power
Product description
1. the plastic type connector is equivalent to M14 / M21 series
product
2. these connector are also equivalent to Weipu series connector
3. All of them are fit to CE, Rohs certificate.
4. a variety of sizes and appearances connector to our customer for
easy to use and assemble
5. Besides the screw type waterproof connector, we also provide the
push-pull connector to make the assembly easier and more quickly.
6. the connector can transmit the signal and power fast with the
high-quantity of waterproof function, the quality is our goal as
well
Quick Details
Product name:UCU connector
Gender: female to male
Current Rating:10A
Number of contacts:5pins
connector type: assembly connector
Mating style: screw
Back Shell:Circular
Waterproof Rating:IP68
Seal for cable OD:Φ3mm～Φ7mm
Contact resistance:<5mΩ
Insulation resistance:≥500MΩ at DC500V
Breakdown voltage: ≥1000v/1minute
Assembly Style: Field Installable(Solder)
Material
Connector body: Flame Retardant Nylon
Contact:Brass C2680 and C17200 gold plated
Sealing:EPDM
| Connector size | UCU assembly connector |
| Contacts | 5pins |
| Gender | female to male |
| Seal for cable OD | Φ3mm～Φ7mm |
| Current Rating | 10A |

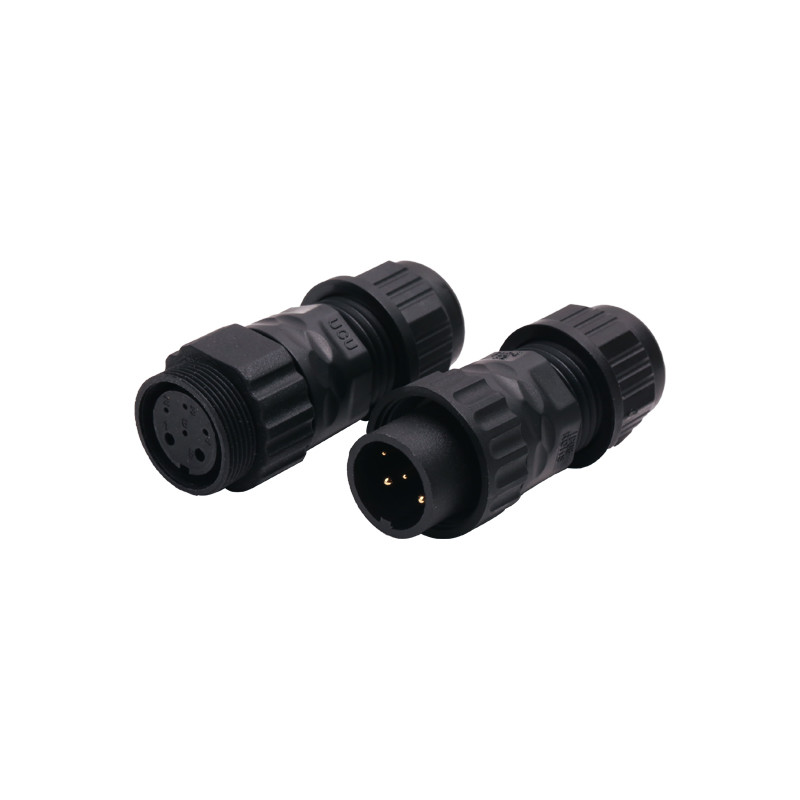

Product Photos
Our service
1. We are the manufacture, Rigoal is our brand, and has built a
great reputation in China even around the world.
2. We guaranteed that 100% in good quality, the price will be
reasonal.
3. All the inquiry will be response within 24 hours, the
commucation will be effective.
4. Special feature and service can be provided upon requirement.
