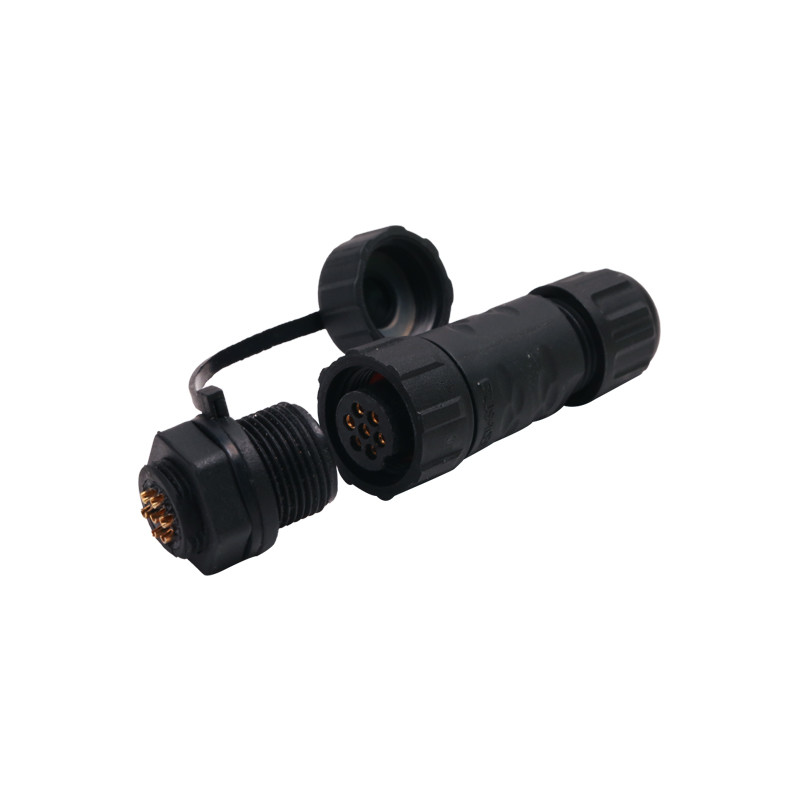

Waterproof Plastic Connector IP68 7pins Female Assembly To Panel
Mount Connector
Product description
1. the plastic type connector is equivalent to M14/M21 series
product
2. these connector are also equivalent to Weipu series connector
3. CE,Rohs certificate are avaliable
4. samples are free for checking
5. variety of sizes and appearances connector to our customer for
easy to use and assemble.
6. Besides the screw type waterproof connector, we also provide the
push-pull connector to make the assembly easier and more quickly.
7. IP68 Waterproof Plastic Connector.It has two connection modes of
the solder type and thread type
Quick Details
Product name:UCU connector
Gender: female
Current Rating:10A
Number of contacts: 7pins
connector type: assembly and panel mount connector
Mating style: screw
Back Shell:Circular
Waterproof Rating:IP68
Seal for cable OD:Φ3mm～Φ7mm
Contact resistance:<5mΩ
Insulation resistance:≥500MΩ at DC500V
Breakdown voltage: ≥1000v/1minute
Assembly Style: Field Installable(Solder)
Material
Connector body: Flame Retardant Nylon
Contact:Brass C2680 and C17200 gold plated
Sealing:EPDM
| Connector size | UCU connector |
| Contacts | 7pins |
| Gender | female |
| Seal for cable OD | Φ3mm～Φ7mm |
| Current Rating | 10A |
Product Photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4: What’s the connector made of?
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Q5: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q6: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
