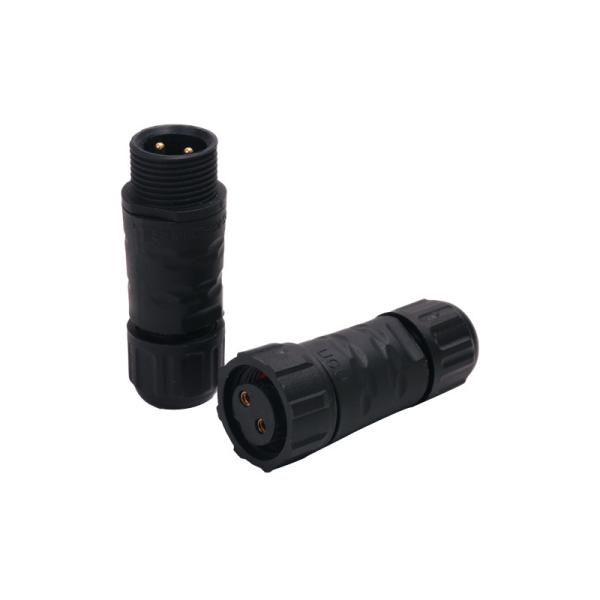

UCU Waterproof Plastic M14 Assembly Connector 2pins Female To Male Connector

Product description

1. the plastic type connector is equivalent to M14/M21 series product

2. these connector are also equivalent to Weipu series connector

3. All of them are fit to CE,Rohs certificate.

4. waterproof connectors in both metal and plastic with different mating styles, including screw thread and Bayonet lock.

5. Connectors are typically made of metal and plastic, but can be constructed using just about any conductor and insulating material

6. The materials are high/low temperature resistant and UV resistant with IP68 rating

7. The pins with gold-plated ensure the conducting performance's stability and security

8. Combined structure, the connector can be parted into different components

Quick Details

Product name:UCU connector

Gender: female to male

Current Rating:15A

Number of contacts: 2pins

connector type: assembly connector

Mating style: screw

Back Shell:Circular

Waterproof Rating:IP68

Seal for cable OD:Φ3mm～Φ7mm

Insulation resistance:≥500MΩ at DC500V

Breakdown voltage: ≥1000v/1minute

Assembly Style: Field Installable(Solder)

Material

Connector body: Flame Retardant Nylon

Contact:Brass C2680 and C17200 gold plated

Sealing:EPDM
