Screw Type Led Outdoor Lighting Power Electrical IP68 Waterproof 5
Pin Plastic Connector
Product description
♦ Waterproof connectors typically involve an encasing, often
plastic or mechanized plastic depending on the application, that is
at a specific IP rating.
♦ Waterproofing is required on cable assemblies when connectors and
ports are going to come into contact with moisture.
♦ Integrating current and signal transmission in one of the
multifunctional integrated circular connector
♦ It's very easy and simple to operating,small bulk,light weight
complete specification
♦ its features has good flexibility anti-vibration
resistant,waterproof ect
Quick Details
Product name: UCU waterproof connector
Gender:Female and male
Current Rating:10A
Number of contacts: 2.3.4.5.6.7.9pins
connector type:without SR
Mating style:Screw
Back Shell:Straight
Waterproof Rating: IP68
Seal for cable OD:Φ3mm～Φ7mm
Contact resistance:<5mΩ
Insulation resistance:≥500MΩ at DC500V
Breakdown voltage: ≥1000v/1minute
Assembly Style: Field Installable(Solder)
Material
Connector body: Flame Retardant Nylon
Contact:Brass C2680 and C17200 gold plated
Sealing:EPDM
| Male Size | ∅19*47.3mm |
| Female Size | ∅19*47.5mm |
| Contact Cores | 3pin |
| Male Pin Diameter | ∅1.5mm |
| Male Pin Material | Copper/Copper Alloy (Gold plating/Nickel plating) |
| Over-Mold Material | PA66 |
| Insulator Material | PA66+30% fibre |
| Wire Specifications | 28AWG---14AWG |
| Wire Diameter | ∅3.5-∅7.2 |
Product Drawing

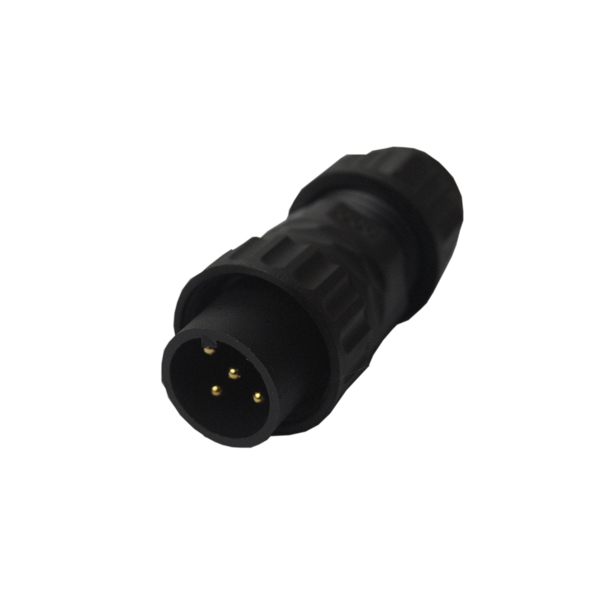

Product Photos
Application
Factory Information
Packaging & Shipping
Approval customized based on customers' requirements
MOQ: 100pcs each item
Delivery time: 5-7days after the payment received
Shipment: by Express,by Air, by Sea
Payment terms: 100% TT in Advance
Payment method: T/T, Western Union, Paypal
