Waterproof UCU Metal Shielded IP68 2.3.4.5.6.7.9pins Male Connector
With Solder
Product description
♦ Screw Type Led Outdoor Lighting Power Cable Wire Electrical IP68
Waterproof 4Pin Plastic Connector
♦ Waterproof plastic connector is widely used in wire and cable
protection industry.
♦ To connect plastic flexible conduit with others(always machine).
♦ The protection level can reach IP68 with the best waterproof
property.
Quick Details
Product name: UCU connector
Gender: male
Current Rating:10A
Number of contacts: 6pins
connector type: shielded connector
Mating style: screw
Back Shell: Circular
Waterproof Rating:IP68
Seal for cable OD:Φ3mm～Φ7mm
Contact resistance:<5mΩ
Insulation resistance:≥500MΩ at DC500V
Breakdown voltage: ≥1000v/1minute
Assembly Style: Field Installable(Solder)
Material
Connector body: Flame Retardant Nylon
Contact:Brass C2680 and C17200 gold plated
Sealing:EPDM
| Connector size | UCU connector |
| Contacts | 6pins |
| Gender | male |
| Seal for cable OD | Φ3mm～Φ7mm |
| Current Rating | 10A |

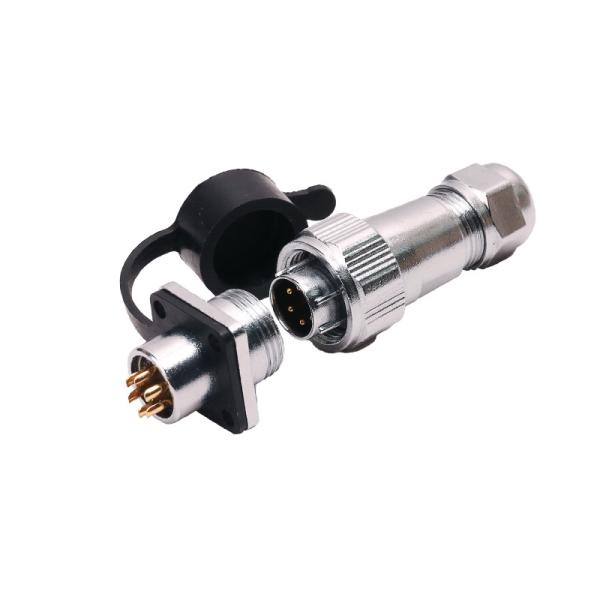

Product Photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4: What’s the connector made of?
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Q5: Why choose us?
A: 100% homemade, competitive price and fast delivery
Q6: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q7: What are the payment methods?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
