Waterproof UCU Metal Shielded IP68 6pins Female Panel Mount
Connector With Solder
Product description
1. Waterproof plastic connector is widely used in wire and cable
protection industry.
2. It has two connection modes of the solder type and thread
type.It's very easy and simple to operating,small bulk,light weight
complete specification
3. It is applicable for the connection of the small-size sebsir,the
electronic equipments,cable can have free blind insertion .morever
its features has good flexibility anti-vibration
resistant,waterproof
4. Waterproof connectors typically involve an encasing, often
plastic or mechanized plastic depending on the application, that is
at a specific IP rating
Quick Details
Product name:UCU connector
Gender: female
Current Rating:10A
Number of contacts: 6pins
connector type: shielded connector
Mating style: screw
Back Shell:Circular
Waterproof Rating:IP68
Seal for cable OD:Φ3mm～Φ7mm
Contact resistance:<5mΩ
Insulation resistance:≥500MΩ at DC500V
Breakdown voltage: ≥1000v/1minute
Assembly Style: Solder
Material
Connector body: Flame Retardant Nylon
Contact:Brass C2680 and C17200 gold plated
Sealing:EPDM
| Connector size | UCU connector |
| Contacts | 6pins |
| Gender | female |
| Seal for cable OD | Φ3mm～Φ7mm |
| Current Rating | 10A |

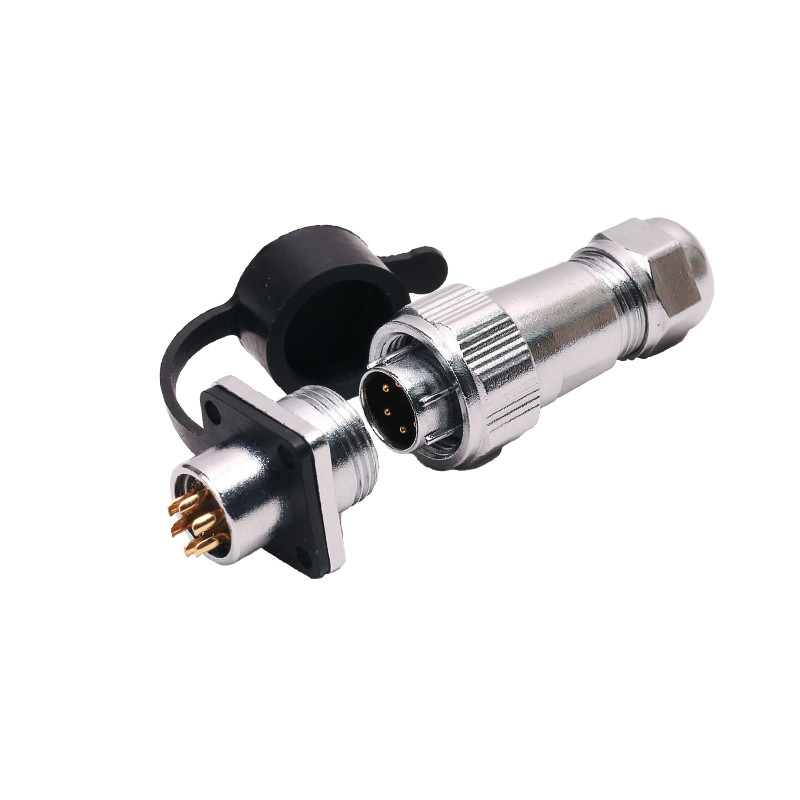

Product Photos
FAQ
Q1: Are you trading company or manufacturer ?
A: We are the manufacture
Q2: How long is your delivery time?
A: It is 15 days after payment successful.
Q3: Do you provide samples ? is it free or extra ?
A: Yes,we provide samples for free,but you will pay for the
shipping fee.
Q4: What is your terms of payment ?
A: If the payment<=$1000, 100% in advance.
Payment>=$1000, we accept 50% T/T in advance
