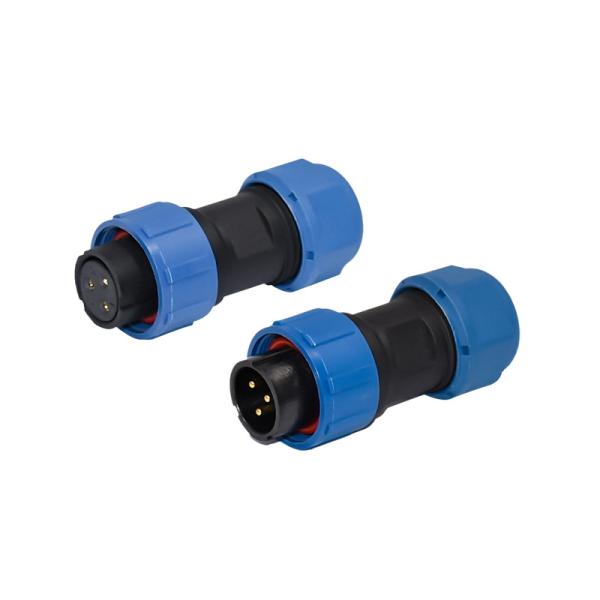

Waterproof Power Connector male to femwle IP68 Weipu SP17 Straight
Assembly Connector
Weipu SP13 17 21 Connectors
SP series of threaded IP68 connectors has a bigger and stronger
shell. And it's very flexible
When choosing a female connector, the robust connectors can be used
for both cable to cable (inline) and cable to panel-mount
connections.
All models are highly reliable and excellent quality.
General Details
Coupling:Threaded coupling
Shell material: Nylon66
Fire resistance: V0
Termination: Solder/Screw
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500
Temperature range: -25°C~~+85°C
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Current Rating:5A-10A
Contact Gender:Male/female
Housing Material:Plastic
Material
Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic
Insulation resistancem M Ω: 2000
| Connector type | Weipu 17 |
| Number of cores | 3pins |
| Gender | male to female |
| Current Rating | 10A |
| Rated Voltage | 500v |
| Number of contacts | 2-9 POLES |
| Mounting type | butting cable connector |
| Connector size | standard |
| IP Rating | IP68 |
| Mating Type | Threaded |
| Body Orientation | Straight |
| Housing Material | Plastic |
Number of Contacts
Product photos
FAQ
Q: What about the quality of your products?
A: All of our products have CE certification and are strictly
tested by our QC department before shipment.
Q: Can you offer samples to test before normal order?
We are willing to provide samples. The sample can be delivered
within 3 working days. For expensive items, please contact us
first.
Q: How long is usually your delivery time?
A: Our delivery time is usually within 15 days after your payment.
Q: Can you provide customization?
A: You’d better provide parameters of the cable and the
specification of the connector. If it’s for professional equipment
cable, please provide weld definition.
Q: Some connectors are available with different cables. Which
cables shall I choose?
A: Always choose the cable with the bigger diameter, because the
bigger diameter results in less attenuation.
Q: How do you solve after sale service?
A: After the receipt of goods, if you are not satisfied or having
any other problems, please contact us as soon as possible, we will
give you a quick and reasonable solution.
