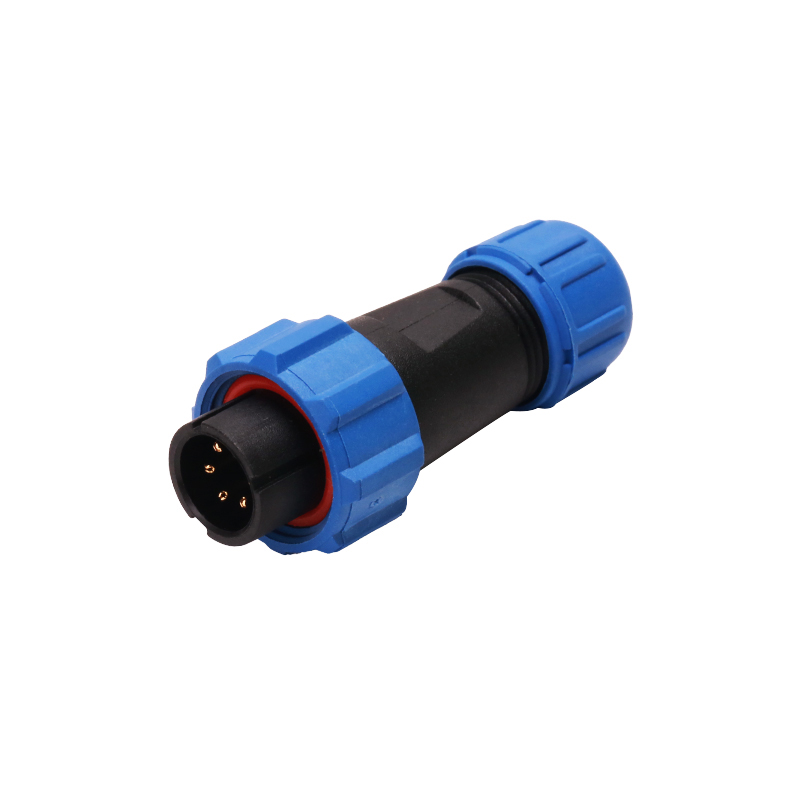

China factory Weipu SP1310/P(S) waterproof terminal cable connector
and plug welding cable connector
Description
This M25 waterproof power Connector has a waterproof rating of
IP67. To assemble the M25 Outdoor Waterproof Connector,only a
Philips Screwdriver is required to attach the two wires inside each
main body. Once each side is connected, the wiring is fully
protected from the elements.
Once assembled, the M25 Outdoor Waterproof Conector is easy to plug
and play while keeping the elements and water out of splices and
junctions. To disconnect, just unscrew the main body and pull apart
the two ends.The M25 Waterproof conector has multiple waterproofing
levels, consisting of o-rings, waterproof sealant, and flexible end
seals designed to tighten and close awhen screwed together.
| Electrical Parameters |
| Number of Poles | 2 |
| Current Rating | 50A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
Main features
1. Advanced structure: IP67 self locking connector
2. Multicore:2,3,4,5,6,7,8,9 to 32 pins are optional
3. Connection method: soldering(welding),screw terminal
4. Assembly: cable to cable ,male and female without cable
5. Certifications: UL, TUV, CE,ROHS,CQC.
6. Connection method: push pull locking type
| Technical Parameters |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters |
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2
|
RFQ
Q: How to buy your products?
A: You need to do as followings:
Confirm Current Rating and Number of Contacts
Confirm Connector and Contact Gender
Confirm Assembly style
Confirm Mating style ( series or parallel)
Confirm Cable OD size
Confirm Cable Length and Material.
Q: hello, i do not know what's kind of connector i need, but i need
it for led connection.
A: hello my friend, we are pleased to provide complete solution for
you if more details could be provided such as: current(amp),
voltage, wire number, cable size etc.
Q: How can I get samples?
A: It's my honor to offer you samples, we could offer 3pcs each
item for free charge but cost of freight would be on your side. If
need more items, more quantity for each item, we will charge for
the samples.
