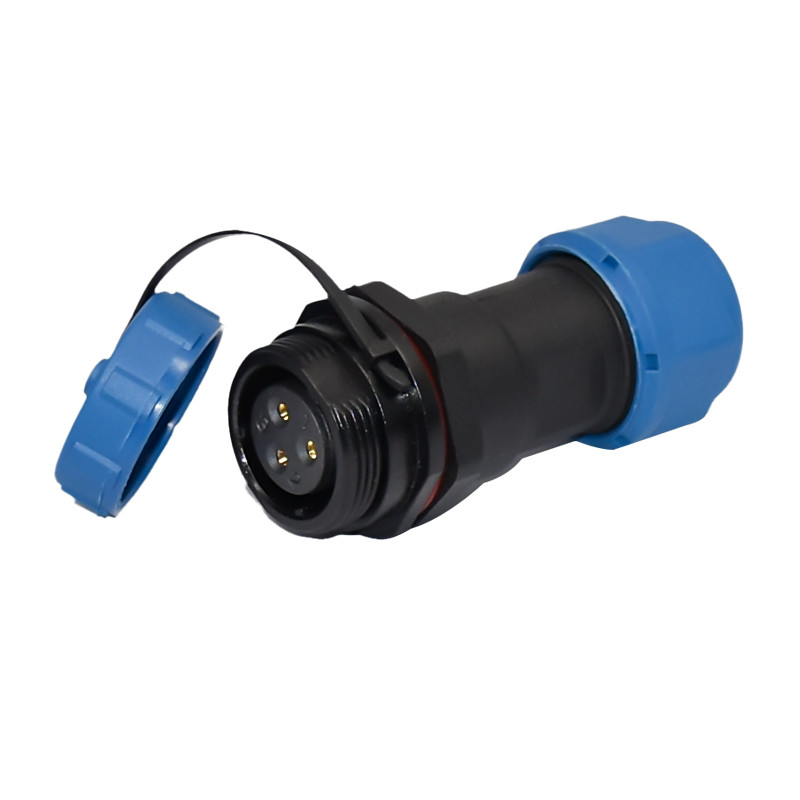

Waterproof Power Connector SP17 Female 3pins Assembly Connector
With Cover IP68
Product description
Our SP series of threaded IP68 connectors has a bigger and stronger
shell, smart push-pull self-latching system
Our comprehensive series can meet of requirements and harsh working
environments
When choosing a female connector, the robust connectors can be used
for both cable to cable (inline) and cable to panel-mount
connections.
All models are highly reliable and excellent quality.
Weipu has a very wide product range, from 2A-400A, from 2pin –
61pin, from IP44-IP68
General Details
Coupling:Threaded coupling
Shell material: Nylon66
Fire resistance: V0
Termination: Solder / Screw
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500times
Shell size: 0 to 2(0K/1K/2K)
Temperature range: -25°C~~+85°C
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Current Rating:10A
Contact Gender:female
Housing Material:Plastic
Material
Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic
| Connector type | Weipu 17 |
| Number of cores | 3pins |
| Gender | female |
| Current Rating | 10A |
| Rated Voltage | 500v |
Number of Contacts

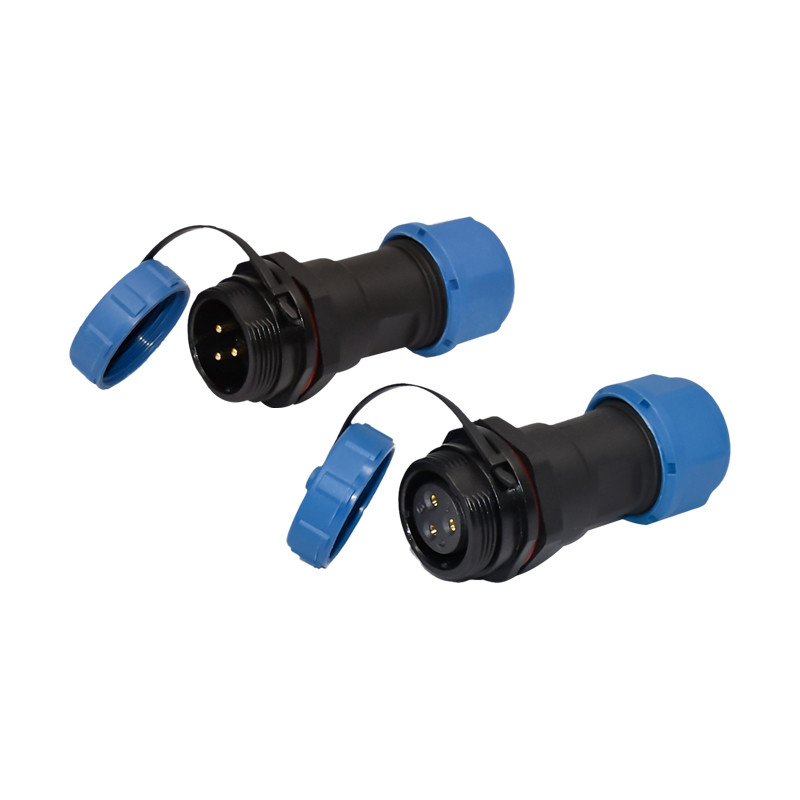

Product photos
Our service
* M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's
requirements as long as tell us your details
* Sample in stock is free; you just need to pay shipping cost.
* Sample is around 5 working days; Mass is 5-15 work days.
* 100% homemade, competitive price and fast delivery
* T/T, PayPal, Western Union, Ali trade assurance.
* Yes, OEM/ODM service is available.
* Special feature and service can be provided upon requirement.
