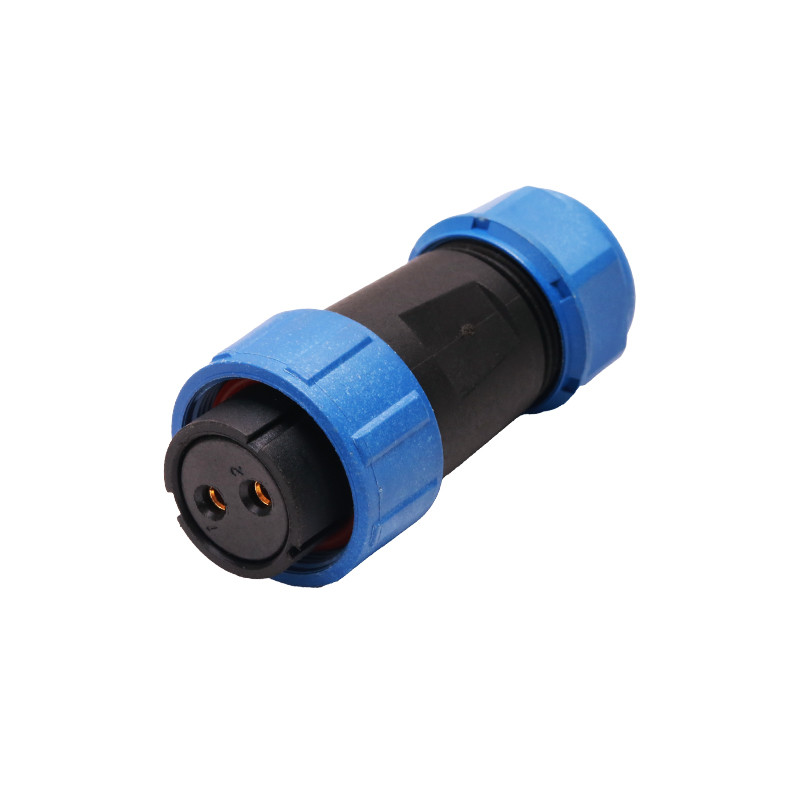

Waterproof Power Connector SP21 2pins Assembly Female High Power
Straight Connector

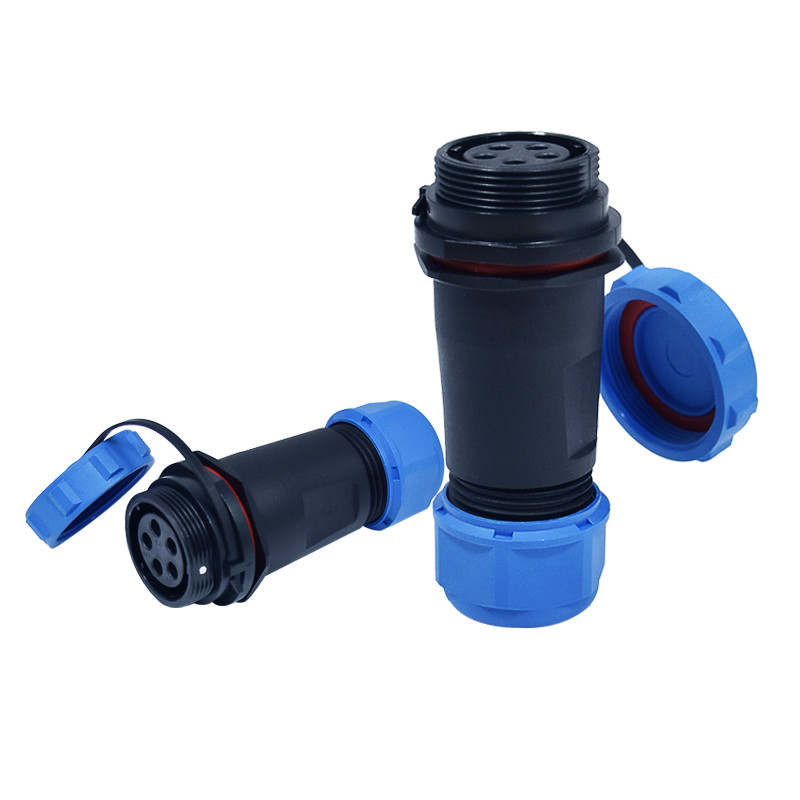

Weipu SP13 17 21 Connectors
SP series of threaded IP68 connectors has a bigger and stronger
shell. With its IP68 rating
That coupled with the IP68 rating excels in harsh environments. And
it's very flexible
When choosing a female connector, the robust connectors can be used
for both cable to cable (inline) and cable to panel-mount
connections.
All models are highly reliable and excellent quality.
Compatible with LemoSeries K, such as: PHG.0K.302.CLAD52Z.
PHG.1K.308.CLAD62Z, FGG.0K.302.CLAC.ETC
Harsh environmental tests,environmental tests performed during
design and qualification of IP68 Connectors are standardised to
IP68 at a depth of 2 m and duration of 24 hours.
General Details
Coupling:Threaded coupling
Fire resistance: V0
Termination: Solder
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500times
Temperature range: -25°C~~+85°C
Current Rating:10A
Contact Gender: female
Housing Material:Plastic
Cable outer diameter I: 4-6.5MM
Cable outer diameter II: 5-8MM
Material
Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic
| Connector type | SP21 series |
| Contact Gender | female |
| Contacts of Connector | 2pins |
| Current rated | 10A |
| Contact diameter | ø1.5*2 |
