M8 4pins Male Right Angle Panel Mount Metal Connector PCB Mount
Socket For Sensor
Product description
1. M8 panel mount connector
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8pins avaliable
General details
| Connector Type | M8 Panel Mount |
| Mounting Type | Front |
| Contact Type | Male to Solder |

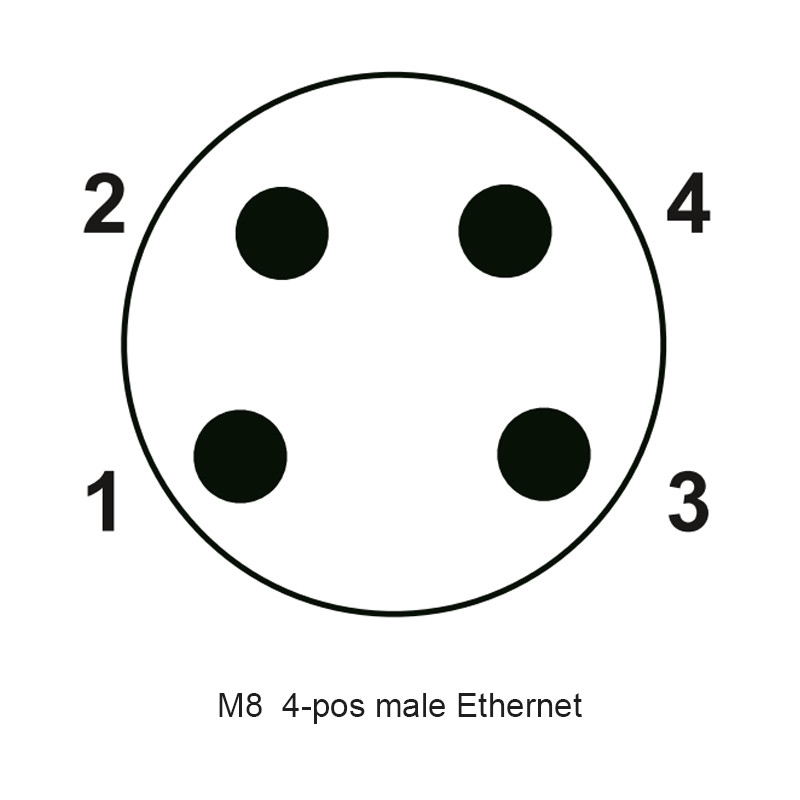

| Number of Pins | 4 |
| Housing Material | Nickel Plated Brass |
| Mating Thread | M8 |
| Switch Fixed Nut | SW10 |
| Conductor Size | 0.25 mm2 |
| Rated Voltage | 60V AC/DC |
| Rated Current | 4 Amps |
| Contact Material | Bronze |
| Contact Surface Material | Nickel |
| O-Ring Material | NBR Rubber |
Electrical values
Rated current (40 °C) :1.5A/4 A
Rated voltage :30V/60 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
| Number of Contacts | 3 | 4 | 5 | 6 | 8 |
| Rated voltage | 30V | 60V |
| Contact resistance | <5mΩ |
| Insulation resistance | <100mΩ |
| Pollution degree | 3 |
| Temperature range | 25 °C to 85° C |
| Degree of protection | IP 67 when mated |
| Mating times | 100 cycles |
| Wire gauge | 24AWG | 26AWG |
| Cable jacket | PVC or PUR |
| Material of housing | Brass Nickel Plated |
| Material of insert | PA+GF UL9V-0 |
| Material of contact | Brass phosohor bronze gold plated |
Product photos
M8 connector can be used a wide fields like LED, Automation,
Sensor, mechanise equipment etc.
• LED lighting , white light , color light etc
• Low current equipement
• Connector be used in narrow environment
• Communication equipement
• Lighting harness
