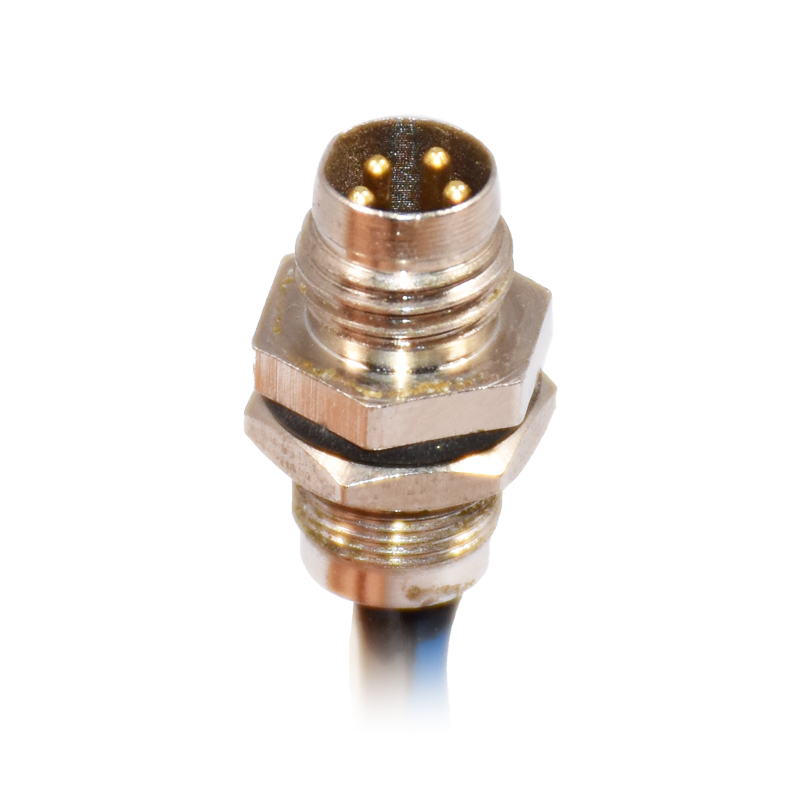

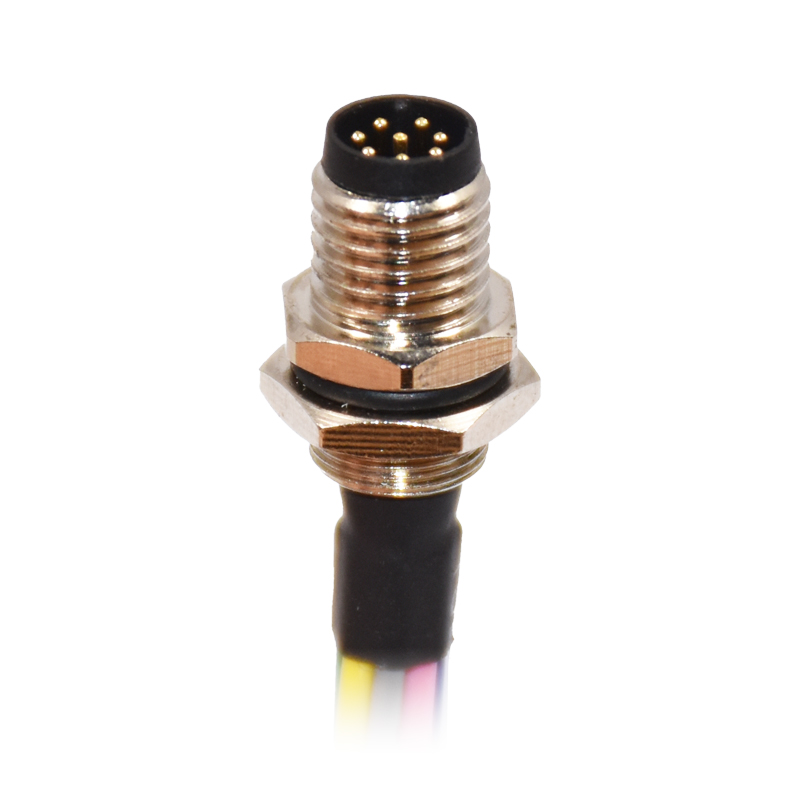

M8 Socket Industrial Wiring Harness 3-8 Core Hole Socket Bullet
Type 4 Pin connector Wiring Harness Processing
Application:
The shell is made of copper / zinc alloy, the insulation material
is nylon PA66, the insulation resistance is greater than or equal
to 100 megohms, the contact resistance is less than or equal to 100
milliohms, the molding material is PVC / TPU, the terminal material
is phosphor copper, and the applicable temperature is from -20 +80
degrees Celsius, waterproof grade of IP67, IP68. Can be used for
industrial equipment in various fields.
Parameters:
| Place of Origin | Guangdong,China |
| Brand Name | RIGOAL |

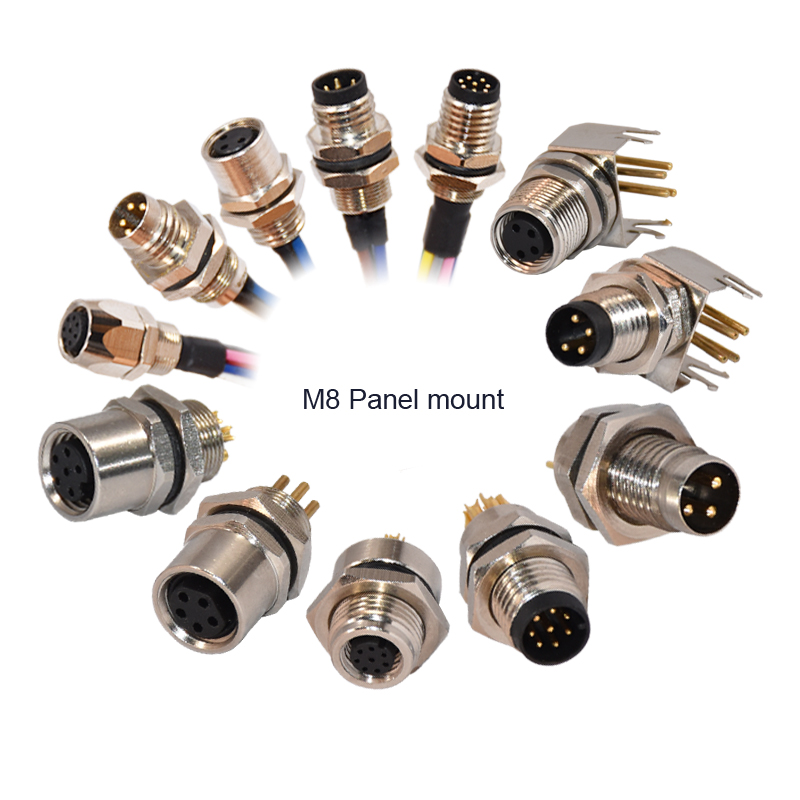

| Model Number | M8 panel mount |
| Application | Industrial equipment in various fields. |
| Connectors | M8 |
| Wire | 22awg |
| Wire length | Customized |
| Wire Color | black or Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | Outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Before sales:
The connection wire is one of the types of electronic wiring
harnesses, which are widely used in different industry electronic
equipment fields, such as electric vehicles, household appliances,
communication equipment, automation equipment and other electronic
equipment. The electronic wiring harness connection wires with
different functions have different production standards The details
include wire specifications, thickness of connecting wires,
material of electronic wiring harness, etc.
1. Some irregular manufacturers use recycled PVC for the insulation
layer and recycled copper, copper-clad aluminum, steel wire or
several kinds of hybrids for the core conductor. The large internal
resistance of these types of conductors is very harmful to
electronic equipment, so you must pay attention when choosing.
2. The insulation layer of the regular connecting wire must be made
of brand new anti-oxidation PVC plastic. The core conductor is made
of oxygen-free copper, tinned copper or silver-plated copper, etc.,
which must be manufactured through multiple processes and precision
equipment.
3. The high-quality connecting wire must not only have good
insulation and heat resistance, but also the core conductor must be
twisted or braided in order to have enough density to reduce the
resistance value, capacitance and inductance, and output enough
electricity flow.
4. Judgment of the quality of the connection wire can not only look
at the appearance size, more importantly, look at the thickness of
the copper core inside. Because some connecting wires make the
rubber skin extremely thick and the copper core is very thin, it is
mainly necessary to confirm from the size of the copper core cut
surface.
