M8 Front Panel Mount Connector 3pins Male Waterproof Fastened Connector Automotive



Quick details
1. M8 panel mount connector male 3pins solder connector
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Contacts 3.4.5.6.8pins avaliable

Electrical values
Rated current (40 °C) :4 A
Rated voltage :60 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles

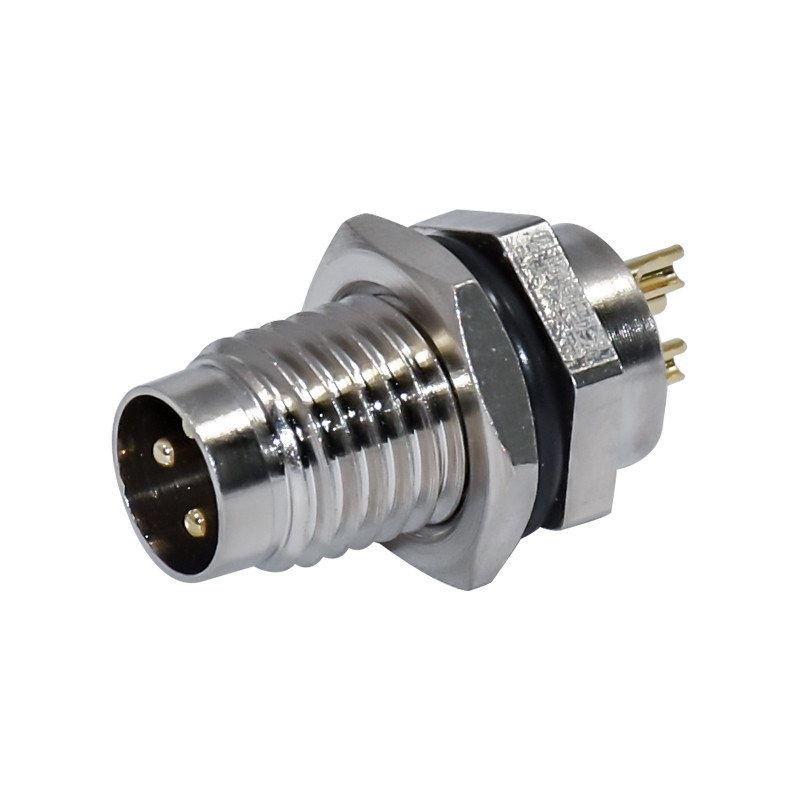

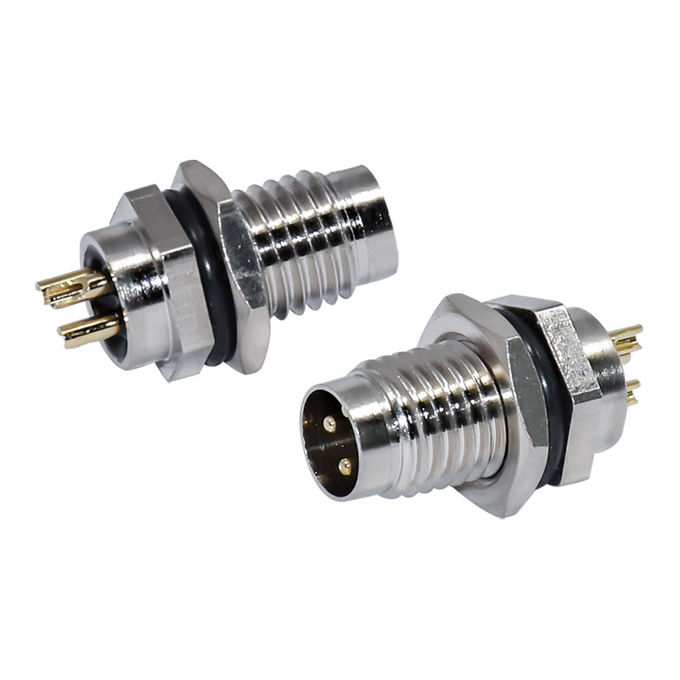

Product photos


Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request


M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

Rigoal-----Your Best Connection!

Company Profile：

Factory profile：

Shenzhen Rigoal Connnector Co.,Ltd. was established in 2013 years and is located in Shenzhen, China,enjoying convenient transportation and beautiful environment. Our company covers an area of 3500 square meters and has 160 employees at present. Company has obtained ISO9001 2015 certification.

We are specialized in waterproof connector and cable.Rigoal company focus on ODM and OEM connector and cable. Our company has rich experience in the senor , power and Ethernet industry. Our main products include M5 M8 M9 M10 M12 M16 M18 M20 M23 M40 RD24 RD30 mini7/8 etc circular waterproof connector and cable. push-pull connectors ,Solenoid value connector, RJ45 USB D-SUB waterproof connector and LED area power waterproof connector and cable .Plastic T or Y type connector and cables .Most of our products have got UL CE Rohs IP68 etc certificates.Besides, we are making great efforts to develop new products to meet different requirements. Welcome your custom-made.

Our products mainly clients in Europe ,USA, Australian,Korea etc. We also welcome all over the world orders.Our company has 30 equipment to strictly control the product quality.Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
