    M8 Auto Female 6pins Front Cricular Screw Panel Mount Connector IP67 Socket

    Ask Lasest Price
    Brand Name : Rigoal
    Model Number : M8 panel mount connector
    Certification : CE,Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 per week
    Delivery Time : 7-10days
    • Product Details
    • Company Profile

    M8 Auto Female 6pins Front Cricular Screw Panel Mount Connector IP67 Socket

    M8 Auto Female 6pins Front Cricular Screw Panel Mount Connector IP67 Socket


    Quick details

    1. M8 panel mount connector female 4pins PCB connector

    2. Connector locking system is bolted

    3. Termination is solder

    4. Wire gauge(mm) is 0.25mm²

    5. Wire gage(AWG) 24

    6. Cable outlet can be 3,5 - 5,0 mm

    7. Temperature will from -40° to +85°

    8. Contacts 3.4.5.6.8pins avaliable


    Electrical values

    Rated current (40 °C) :4 A

    Rated voltage :60 V

    Rated impulse voltage :1500 V

    Pollution degree :3

    Overvoltage category :III

    Insulating material group :III

    Volume resistivity :≤ 3 mΩ

    EMC compliance :not shielded

    Degree of protection :IP67

    Mechanical operation :> 100 Mating cycles


    Number of Contacts34568
    Rated voltage30V60V
    Contact resistance<5
    Insulation resistance<100mΩ
    Pollution degree3
    Temperature range25 °C to 85° C
    Degree of protectionIP 67 when mated
    Mating times100 cycles
    Wire gauge24AWG26AWG
    Cable jacketPVC or PUR
    Material of housingBrass Nickel Plated
    Material of insertPA+GF UL9V-0
    Material of contactBrass phosohor bronze gold plated

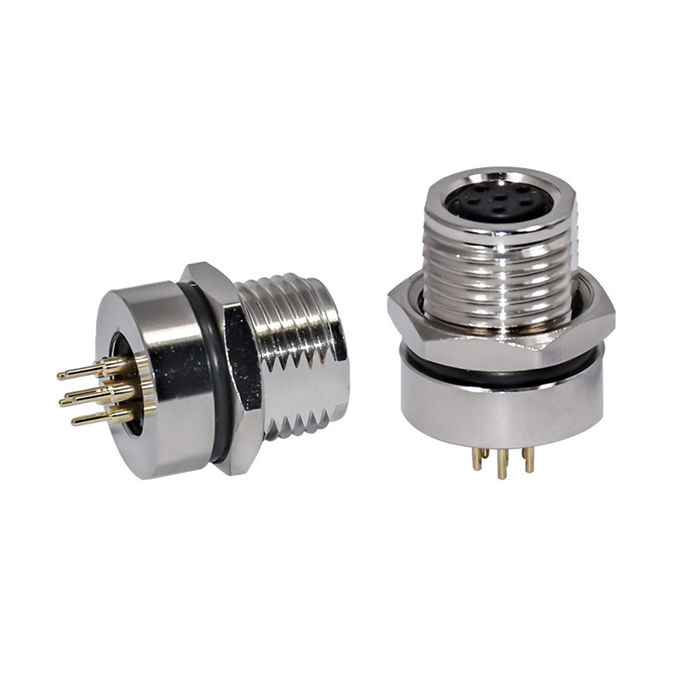

    Product photos


    M8 Auto Female 6pins Front Cricular Screw Panel Mount Connector IP67 SocketM8 Auto Female 6pins Front Cricular Screw Panel Mount Connector IP67 Socket

    M8 Auto Female 6pins Front Cricular Screw Panel Mount Connector IP67 Socket

    Packsging & Shipping

    1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

    2.Customized according to customer's request


    M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

    • LED lighting , white light , color light etc

    • Low current equipement

    • Connector be used in narrow environment

    • Communication equipement

    • Lighting harness

    Production Advantage

    1. Water circular connectors can connect electrical products perfectly

    2. Approved by UL,CE,TUV,ROHS,CCC,TS16949,ISO14001

    3. Our connector can be used outdoor during harsh winter or sweat summer . the endurance temperature range is -40℃-105℃

    4. We have got REACH certification ,Environmental connector is worthy of your reliable

    Rigoal-----Your Best Connection!
