Quick Details
Type:M8

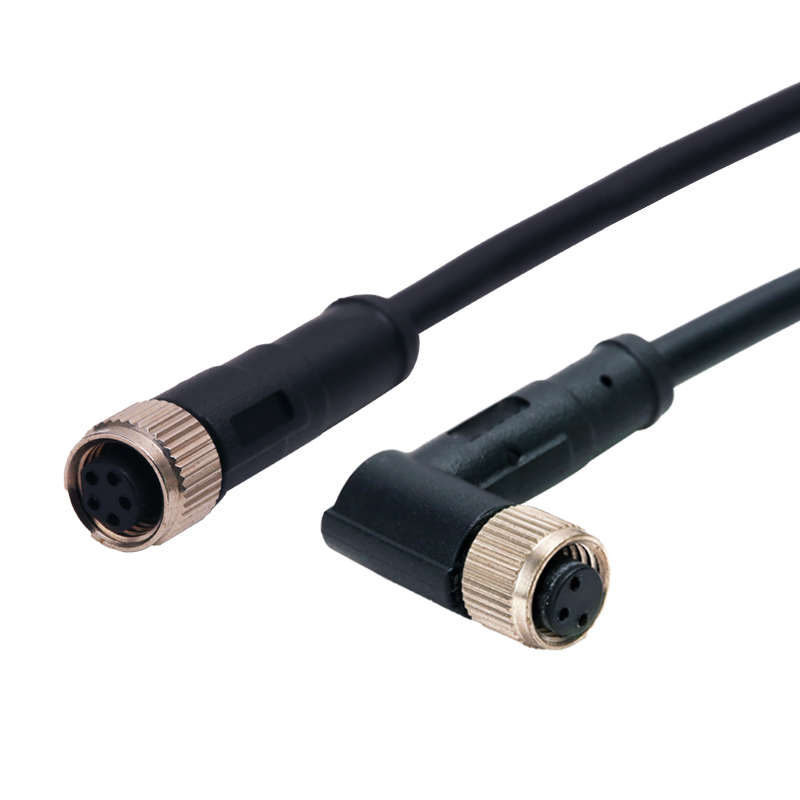

Product name:M8 A coding R/A female to female waterproof cable
Application:Automotive, Sensor or Automation
Gender:male/female
Rated current:4A
Contacts:3,4,5,6 8pins are available
Coupling:Threaded coupling
Shielding:un-alaibable
IP degree:IP67/IP68
Description
Anti-vibration locking screw design
PG7 and PG9 for choosing,PG7 subitable OD4-6mm cable,PG9 suitabble
OD6-8mm cable
Straight or R/A connector
Shielded & Un-shielded
RoHS & REACH Compliance
Electrical Data
Rated voltage:60V
Insulation resistance:100MΩ
Contact resistance:≤5mΩ
Ambient temperature:-25°C~+85°C
Standard:IEC61076-2-101
Material
Overmold:Transparent TPU
Insert:TPU+GF
Material of Housing: Brass Nickel Plated
Cable Jacket: PVC or PUR
Wire Gauge: 24AWG or 26AWG
Material of Insert: PA+GF, UL9V_0
Material of Contacts: Male brass, female phosphor Bronze, Gold
Plated
Product Photos
Packaging & Shipping
Usually standard size 38*32*32cm/CTN,1000pcs/CTN
approval customized based on customers' requirements
MOQ: 100pcs each item
Delivery time: 5-7days after the payment received
Shipment: by Express,by Air, by Sea
Payment terms: 100% TT in Advance
Payment method: T/T, Western Union, Paypal
Company Information
Rigoal was founded in 2013, and devoted ourselves to be the high
quality & efficient manufacturer. We specialized in producing
waterproof cables & waterproof connectors such as M8, M12, M16,
M23, D-SUB. Mainly applied in sensors, industrial equipment,
transportation facilities, medical devices, LED displays, outdoor
advertisements, communication devices,wind energy devices, vessel
industrial and Surrounding the car electronics industry and so on
,they are equivalent to Phoenix, Binder, Lumberg and Molex etc.
Our philosophy and purpose is: Customer Foremost, Service
First,Quality first.vProducts are mainly exported to all over the
world.And get a high degree approval and recognition from our
customers.
Sincerely to work with you together in the near future.
